PS2 Cable Connection

Power off the host computer. This process requires shutting
1.
down your computer. If you disconnect your computer
keyboard while it is running, your computer will lock up.
Attach the PS2 cable to the HE45T.
2.
If you have a cabled keyboard, detach the keyboard cable from
3.
your computer and connect that same connector to the female
connection on the HE45T PS2 cable, as shown in Figure 1–17.

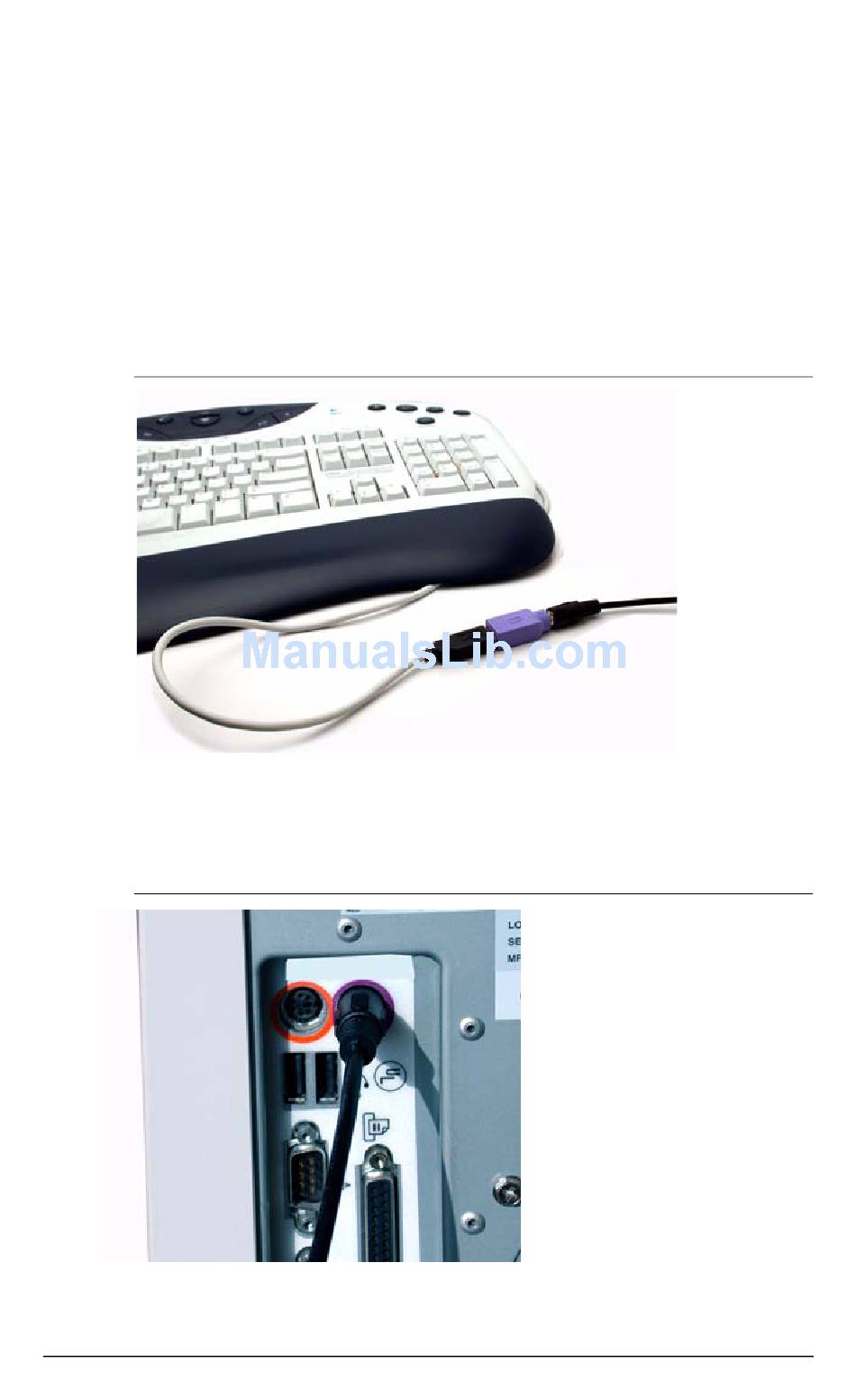

FIGURE 1–17.
Now, connect the male HE45T PS2 connector into the
4.
keyboard port on your computer, as shown in Figure 1–18.
FIGURE 1–18.
10
Connecting the Keyboard Cable
Inserting the PS2 Connector into the Computer
HE45T Quickstart Guide Rev 2.0.0, Jan 2009
