Targeting and Reading Techniques

The HE45T utilizes digital camera technology to take a picture of a
symbol. Once an image is captured, the HE45T utilizes
Microscan's industry leading decoder to extract data from the
captured image.
The H2 Cabled Handle and BH1/BH2 Battery Handle each feature
a trigger on the handle. The two triggers on the top of the unit also
work when the handle is attached.

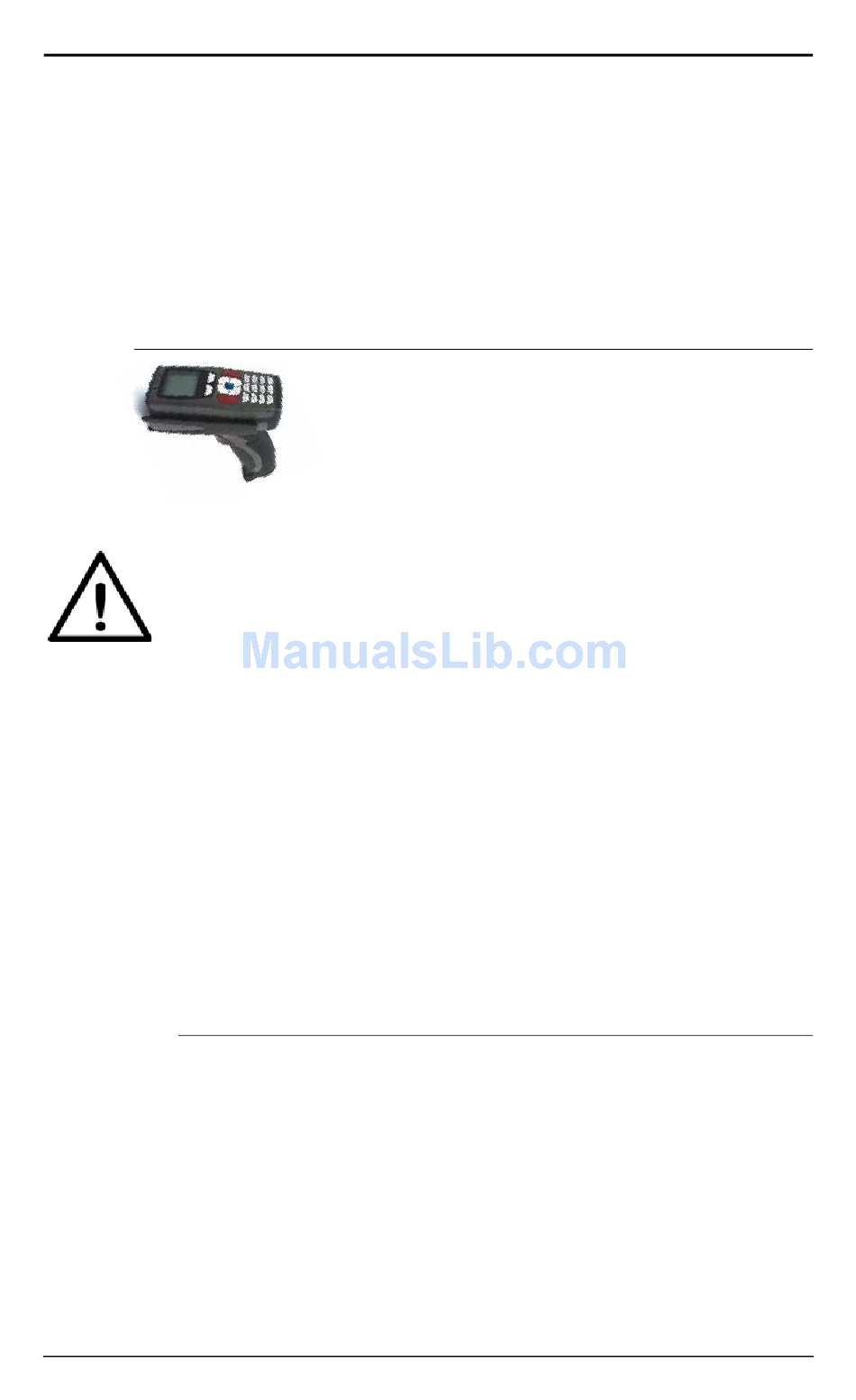

FIGURE 1–34.

Reading Symbols with the HE45T

The HE45T features omnidirectional decoding. Center the
1.
symbol in any orientation within the laser dot aiming pattern.
Note: The HE45T can read a symbol that is not centered;
however, the HE45T performs best when a code is centered.
The HE45T features omnidirectional decoding. Aiming the
targeting laser at the center of the symbol ensures the best
performance for decoding. The HE45T can read a symbol that
is not centered and, under certain circumstances if multiple
symbols are within the field of view, the user must take care of
which symbol is read. The decoder will start from the center,
but if the center symbol is not decodable, it may decode
18
The HE45T with Handle
Caution
Laser in the HE45T
LASER RADIATION - AVOID LONG TERM
VIEWING OF DIRECT LASER RADIATION -
LASER CLASS 2M
Wavelength 630 nm - Maximum radiant power: < 1mW
EN 60825-1:2003
HE45T Quickstart Guide Rev 2.0.0, Jan 2009
