Rs-232 Cable Connection; Usb Cable Settings - Microscan HE45T Quick Start Manual

The HE45T is powered by the PS2 port and does not require a
power supply. Once properly connected to the host computer, the
HE45T will power on and beep. The reader is shipped pre-
configured.

RS-232 Cable Connection

Attach the RS-232 cable to the HE45T.
1.
Connect the RS-232 cable to your host computer.
2.
The RS-232 interface has an optional power supply. If you
3.
have a power supply, plug the power supply adapter into the
RS-232 cable and then plug the power adapter into a wall
socket. HE45T will power on once connected.
If battery power (no power adapter) is being used, press one of
4.
the red buttons for one second to power on the reader. The
reader is shipped pre-configured.

USB Cable Settings

• USB Keyboard Mode — Data is sent from the reader and
interpreted by the host computer as if a US keyboard was being
used to enter data.
• USB Downloader — Communication method used to upgrade
firmware.

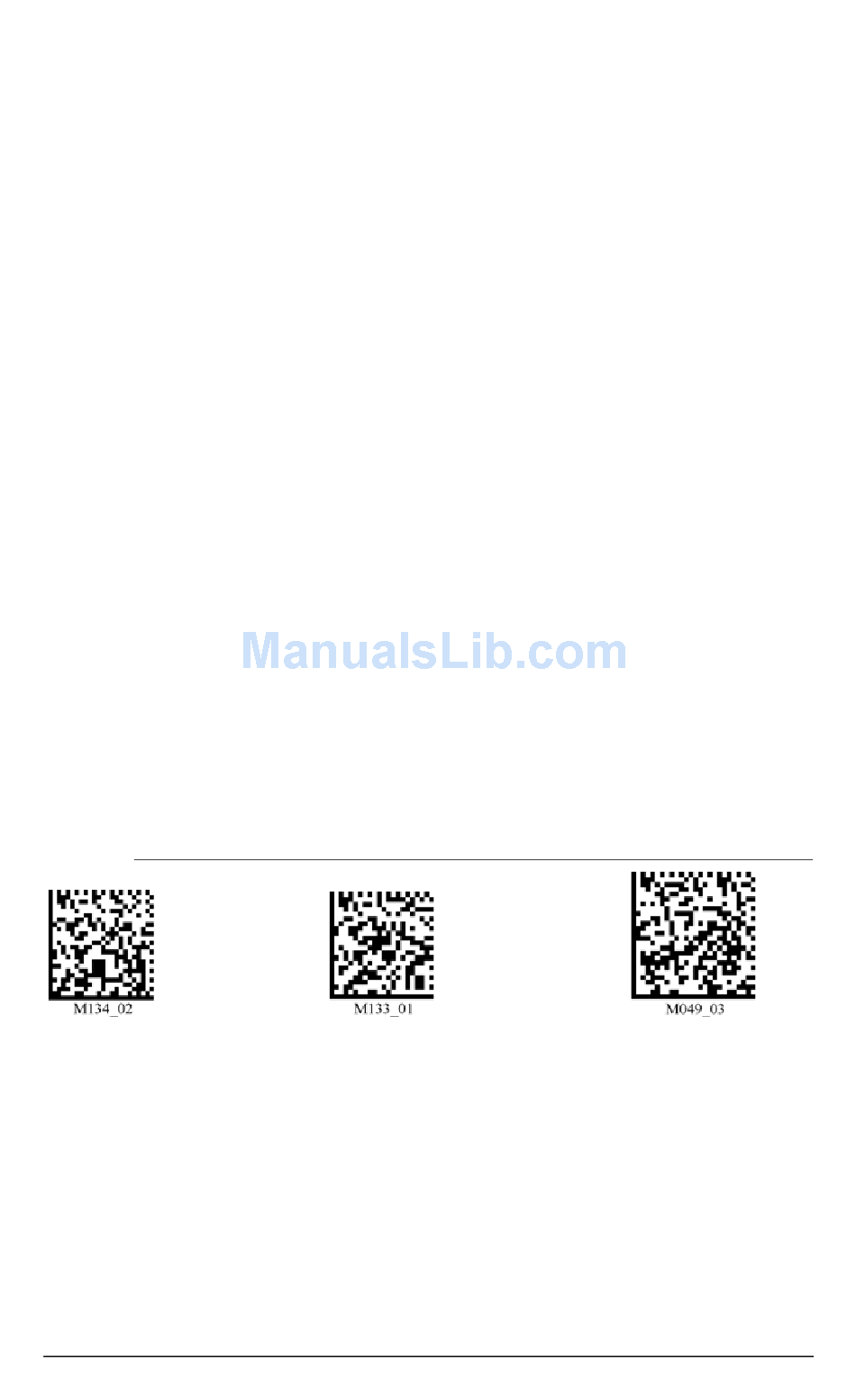

FIGURE 1–19.
USB Keyboard
All other USB settings (including Virtual COM settings) may be
found in the HE45T User Manual. For further instructions
regarding upgrading firmware, please consult your Microscan
representative.
Rev 2.0.0, Jan 2009
USB Codes
USB Downloader
HE45T Quickstart Guide
Reset to USB
Factory Defaults
11
