HE45T Cables

The HE45T is available with USB, RS-232 and PS2 cables. All of
the cables are connected to the HE45T with a 8-pin DIN connector.
Different cables may be required for different hosts.
• HE45T with H2 Cabled Handle — The 8-pin DIN connection
is at the bottom of the handle. Firmly push the 8-pin connector
into the bottom of the handle. The cable has a locking
mechanism that will firmly hold the cable in place
(Figure 1–13). To detach the cable from the reader, you must
pinch the plastic on the 8-pin DIN (Figure 1–13) and pull back
to disengage the connector.

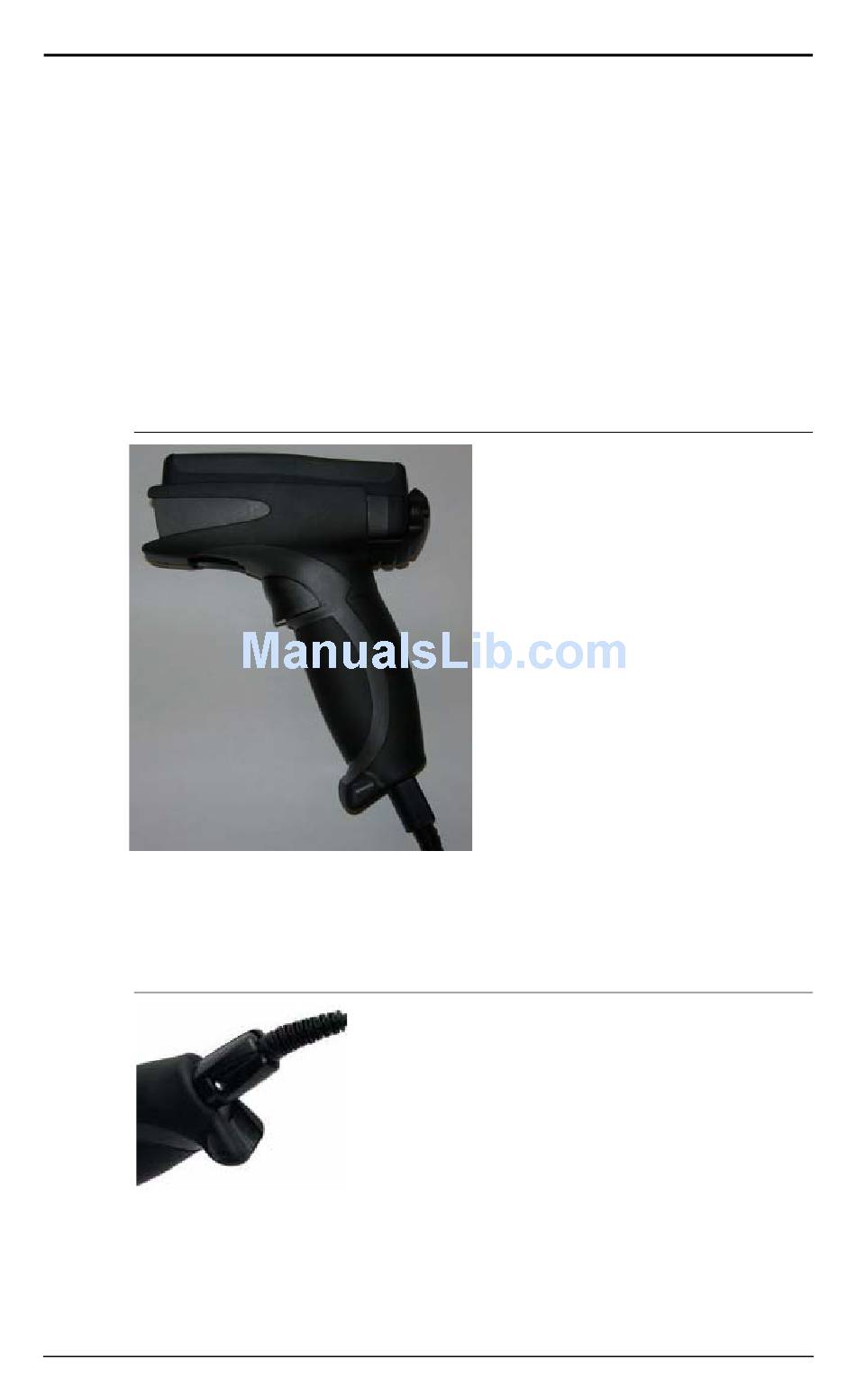

FIGURE 1–13.
Install the optional cable clip to further secure the cable to the
handle with two threaded screws, as shown in Figure 1–14.
FIGURE 1–14.
• HE45T with BH1/BH2 Battery Handle — Firmly push the 8-
pin connector into the back end of the reader, as shown in
Figure 1–15. The cable has a locking mechanism that will
firmly hold the cable in place. To detach the cable from the
8
Handle with Cable Attached
Securing Cable Clip with Two Threaded Screws
