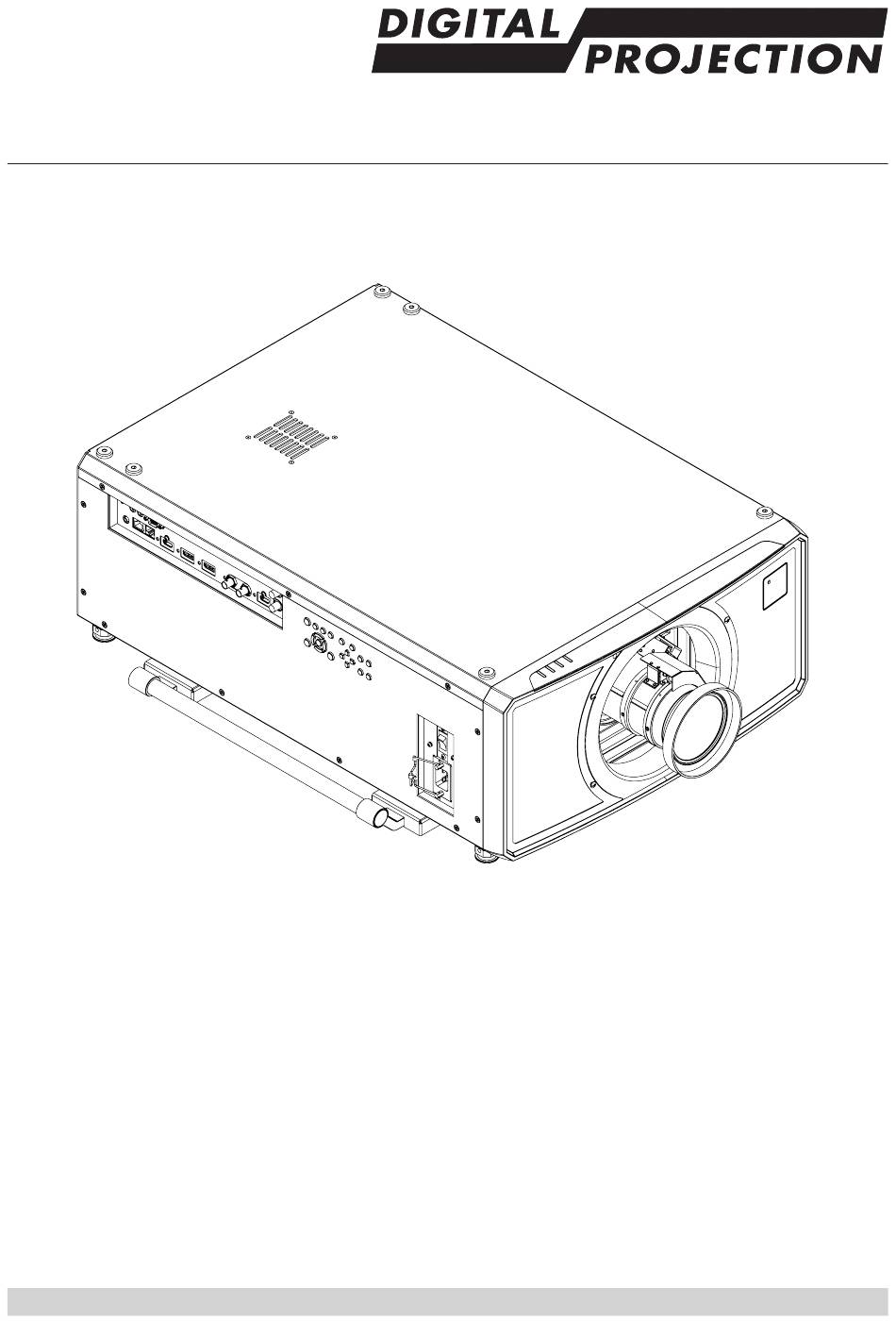

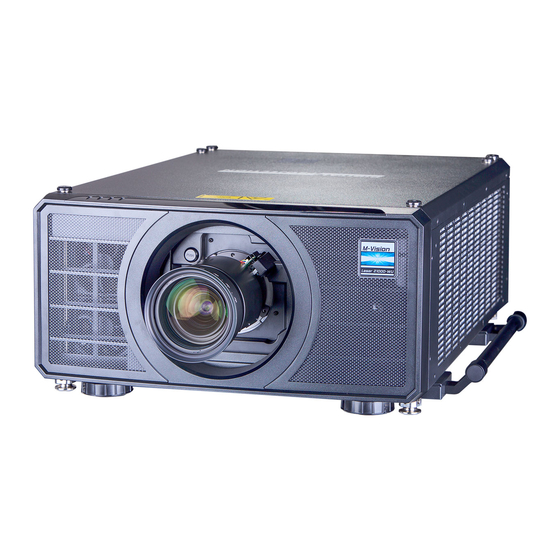

- Page 1 M-Vision Laser 21000 WU Important Information 119-675 Rev A November 2018...
- Page 2 Important Information Digital Projection M-Vision Laser 21000 WU Digital Projection Digital Projection Limited Digital Projection China Greenside Way, Middleton 中国 北京市 朝阳区 芍药居北里101号 Manchester M24 1XX, UK 世奥国际中心A座2301室(100029) Rm A2301 Registered in England No. 2207264 ShaoYaoJu 101 North Lane Registered Office: as above...
-
Page 3: Table Of Contents
Digital Projection M-Vision Laser 21000 WU Important Information Super High Brightness Digital Video Projector Important Information Contents Symbols used in the User Manual ....................4 Electrical and physical specifications ..................5 Laser precautions ..........................5 Product labels ............................6 Label locations ..........................7 Location of laser aperture ......................8... -
Page 4: Symbols Used In The User Manual
Important Information Digital Projection M-Vision Laser 21000 WU Symbols used in the User Manual LASER WARNING: this symbol indicates that there is a potential hazard of eye exposure to laser radiation unless the instructions are closely followed. LIGHT HAZARD WARNING: this symbol indicates that there is a danger of exposure to intensive light that may result in personal injury unless the instructions are closely followed. -
Page 5: Electrical And Physical Specifications
Digital Projection M-Vision Laser 21000 WU Important Information Electrical and physical specifications Main Voltage 110-240 VAC 50/60Hz Operating Temperature 0°C to 40°C (32 F to 104 F) 40°C to 45°C (104 F to 113 F) with reduced light output Storage Temperature -20°C to 60°C (-4 F to 140 F) -
Page 6: Product Labels
Important Information Digital Projection M-Vision Laser 21000 WU Product labels Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 數 位 投 影 機 / 数 字 投 影 机... -
Page 7: Label Locations
Digital Projection M-Vision Laser 21000 WU Important Information Label locations Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 DLP PROJECTOR / DLP Projecteur 數 位 投 影 機 / 数 字 投 影 机... -
Page 8: Location Of Laser Aperture
Important Information Digital Projection M-Vision Laser 21000 WU Location of laser aperture The laser aperture is located as indicated below. Laser aperture Interlock switches Two interlock switches installed at the main frame, inside the cover, will power-off the system individually when activated. -
Page 9: General Precautions
Digital Projection M-Vision Laser 21000 WU Important Information General precautions The unit is never to be operated if the unit is defective or the cover or seal is damaged. No maintenance allowed by end user. Do not open the cabinet. There are no user serviceable parts inside. -
Page 10: Installation Precautions
Important Information Digital Projection M-Vision Laser 21000 WU Installation precautions Connect the LAN cable only to a computer LAN connection. Other similar connectors may have a dangerously high voltage source. The projector must be installed only by suitably qualified personnel, in accordance with local building codes. -
Page 11: Light Hazard Warning
Digital Projection M-Vision Laser 21000 WU Important Information When using projectors in environments with third party high power laser systems avoid direct laser beams pointing towards the projection lens. This may cause incident light to converge into the optical engine and cause damage to the DLP DMD. -
Page 12: Light Hazard Labels Used On The Body Of The Projector
Important Information Digital Projection M-Vision Laser 21000 WU Light hazard labels used on the body of the projector Light hazard labelling is part of the product label. Product label Risk Group 3 label Hazard Warning symbol Not For Home Use logo... -
Page 13: Operation And Configuration Precautions
Equipment. Our products are designed with reuse, recycling and recovery of all components in mind. To this end, at end of life, your projector may be returned to Digital Projection Ltd or its agent so that the environmental impact can be minimised. -
Page 14: Basic Operation Instructions
Important Information Digital Projection M-Vision Laser 21000 WU Basic Operation Instructions Positioning the screen and projector Install the screen, ensuring that it is in the best position for viewing by your audience. Mount the projector, ensuring that it is at a suitable distance from the screen for the image to fill the screen. -
Page 15: Stacking Instructions
Digital Projection M-Vision Laser 21000 WU Important Information Stacking instructions When stacking projectors, the stack MUST be vertical, to ensure that the stresses are distributed to all four chassis corners. Do not stack more than two projectors. Do not use the provided eye bolts to suspend more than one projector. The eye bolts must not be used with stacks as they can carry the weight of one projector only. - Page 16 Important Information Digital Projection M-Vision Laser 21000 WU Remove the four adjustable feet of the top projector. Slide the top projector over the bottom projector so the stacking feet are coupled with the stacking tops on the bottom projector. Page 16...
- Page 17 Digital Projection M-Vision Laser 21000 WU Important Information Use the provided holding pins to secure each connection. Rev A November 2018 Page 17...
-
Page 18: Connecting The Power Supply
Important Information Digital Projection M-Vision Laser 21000 WU Connecting the power supply Firmly push the mains connector into the socket , then press the ON/OFF switch Use only the power cable provided. Ensure that the power outlet includes a ground connection as this equipment MUST be earthed. -
Page 19: Switching The Projector Off
Digital Projection M-Vision Laser 21000 WU Important Information Switching the projector off Press on the remote control or on the control panel, then press again to confirm POWER your choice. indicator on the control panel will start flashing amber, the projected image will turn... -
Page 20: Adjusting The Lens
Important Information Digital Projection M-Vision Laser 21000 WU Adjusting the lens The lens can be adjusted using the menu, or using the lens buttons on the remote control. Lens Lens menu menu provides access to the setting and the command. -
Page 21: Inserting A New Lens
Digital Projection M-Vision Laser 21000 WU Important Information Inserting a new lens Before changing the lens, always make sure the projector is switched off and fully disconnected from its power supply. When changing the lens, avoid using excessive force as this may damage the equipment. -
Page 22: Removing The Lens
Important Information Digital Projection M-Vision Laser 21000 WU Removing the lens Before changing the lens, always make sure the projector is switched off and fully disconnected from its power supply. When changing the lens, avoid using excessive force as this may damage the equipment. -
Page 23: Fitting A Lens Hood
Digital Projection M-Vision Laser 21000 WU Important Information Fitting a lens hood FDA regulations requires that a lens Hood is permanently fitted when using the 4.16-6.96:1 lens with the projector in the United States of America. Fitting can be provided by your reseller or System Integrator. -
Page 24: Control Panel Reference
Important Information Digital Projection M-Vision Laser 21000 WU Control Panel Reference AUTO CENTER POWER INPUT ASPECT PIC MUTE SYNC LENS AUTO SYNC and ASPECT do not work when the projector uses HDMI 3 or 4. POWER Switches the projector on and off (STANDBY). - Page 25 Digital Projection M-Vision Laser 21000 WU Important Information AUTO CENTER POWER INPUT ASPECT PIC MUTE SYNC LENS MENU Displays and exits the OSD. Arrow buttons & ENTER Navigation buttons used to highlight menu entries in the OSD. Press to open or execute the highlighted menu entry.
-
Page 26: Projector Indicators
Important Information Digital Projection M-Vision Laser 21000 WU Projector indicators TEMP. Off = no problem Flashing red = temperature error LIGHT Off = light is switched off Flashing red (cycle of single flashes) = failed to light up during power... -
Page 27: Remote Control Reference
Digital Projection M-Vision Laser 21000 WU Important Information Remote Control Reference Power ON/OFF Turns the projector on and off. To turn the projector off, press the OFF button twice within five seconds. Pic Mute Pic Mute OPEN / CLOSE Shows and hides the projected image. - Page 28 Important Information Digital Projection M-Vision Laser 21000 WU EXIT INFO LENS adjustment FREEZE RE-SYNC adjust focus. FOCUS IN / OUT: press and hold this button, SHIFT: then use the Navigation arrow buttons to move the lens. LENS FOCUS ZOOM adjust zoom.
- Page 29 SHIFT Digital Projection M-Vision Laser 21000 WU Important Information USER PRESET DisplayPort1 /R/ numeric input 4 Select the DisplayPort 1 input. HDMI1 HDMI2 HD-T /G/ numeric input 5 Select the HDBaseT input. HDMI3 HDMI4 DisplayPort2 DisplayPort1 HD-T ADDR SDI /B/ numeric input 6 Select the 3G-SDI input.
