Paper Tray Empty Actuator

PL6.0.56
Phaser 3140/3155/3160 Printer Service Manual

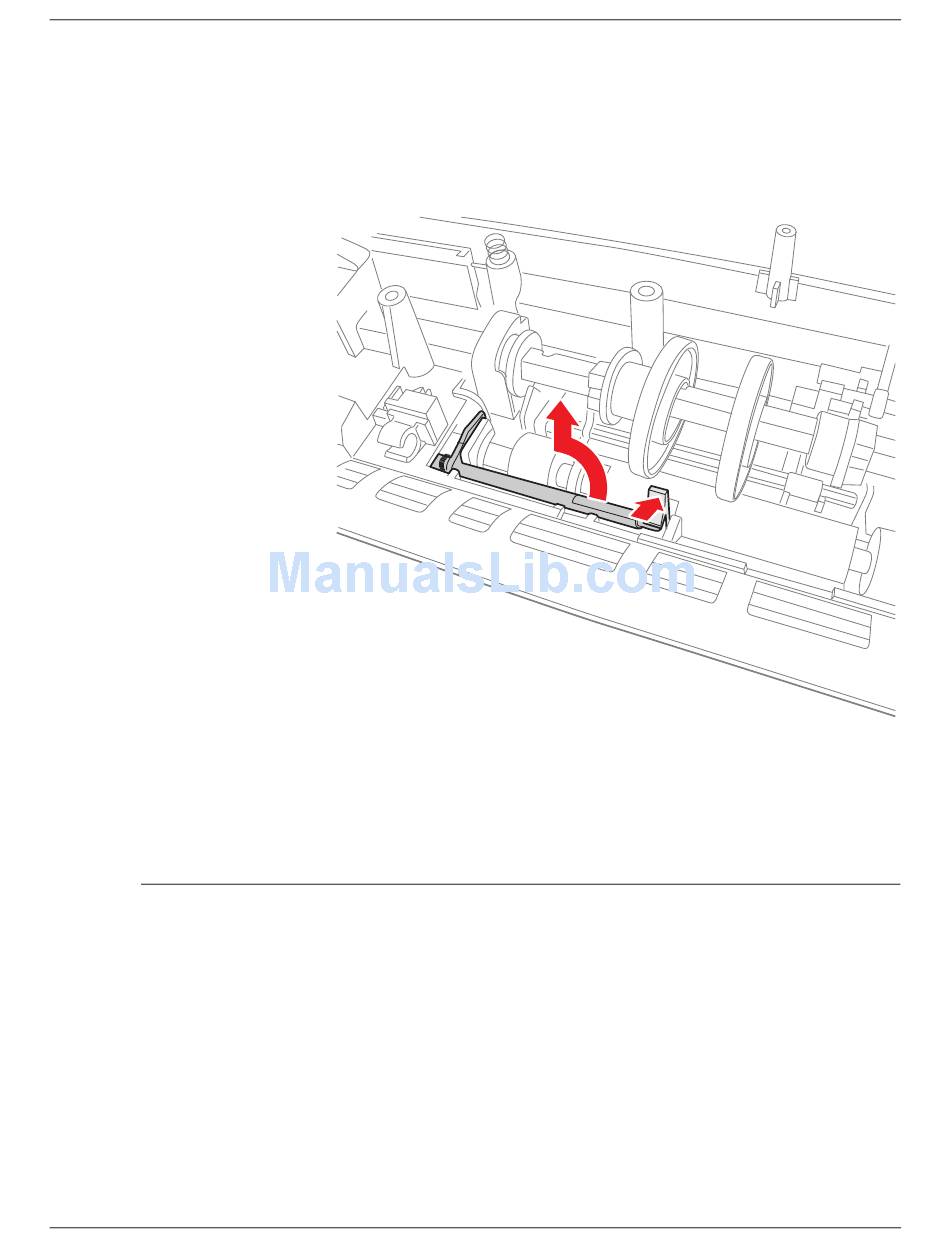

11. Remove the Manual Feed Actuator by gently pushing on the tab and then lift
the actuator out.
Note
For reinstallation purposes, observe the position of the spring on the
Manual Feed Actuator. If necessary, wind the spring around the shaft 1
time to increase tension during reinstallation.
Replacement Note
If necessary, wind the spring around the shaft 1 time to increase tension
during reinstallation.
1. Remove the Print Cartridge (page 8-6).
2. Remove the Tray (page 8-7).
3. Remove the Rear Cover (page 8-26).
Service Parts Disassembly
s3160-034
8-47
