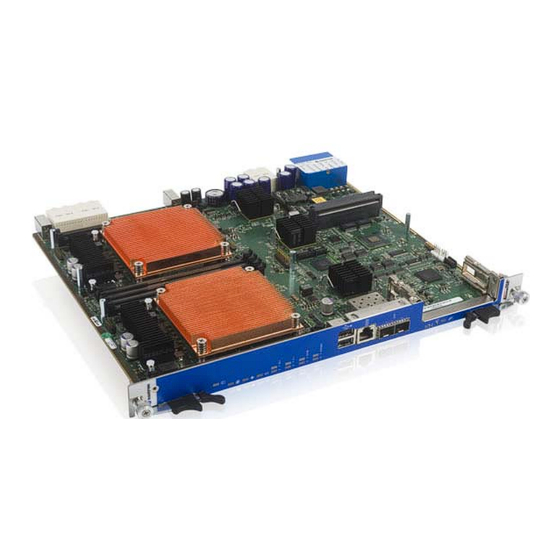

Single width atca compliant processor blade
Hide thumbs Also See for AT8060:
Table of Contents

Advertisement

Quick Links

Download this manual
» Kontron User's Guide «
AT8060
Document Revision 1.1
June 2012
If it's embedded, it's Kontron.

Advertisement

Table of Contents
loading

Related Manuals for Kontron AT8060

Summary of Contents for Kontron AT8060

  • Page 1 » Kontron User's Guide « AT8060 Document Revision 1.1 June 2012 If it's embedded, it's Kontron.

  • Page 2: Revision History

    © 2011 Kontron, an International Corporation. All rights reserved. The information in this user's guide is provided for reference only. Kontron does not assume any liability arising out of the application or use of the information or products described herein. This user's guide may contain or reference information and products protected by copyrights or patents and does not convey any license under the patent rights of Kontron, nor the rights of others.

  • Page 3: Table Of Contents

    Serial ATA (PCH) ............11 AT8060...
  • Page 4 Configuring LAN interface........... . . 28 AT8060...
  • Page 5 VT-UTF8 Keystroke Mapping ..........108 AT8060...
  • Page 6 Kontron I/O Mapping........
  • Page 7 Figure 6-3: CPU Thermal Profile ............114 AT8060...
  • Page 8 Table 6-2 Pressure curve AT8060 with AM4320 in bay AMC .......

  • Page 9: Safety Instructions

    • Use extreme caution when installing or removing components. Refer to the installation instructions in this user's guide for precautions and procedures. If you have any questions, please contact Kontron Technical Support WARNING High voltages are present inside the chassis when the unit's power cord is plugged into an electrical outlet.

  • Page 10: Preventing Electrostatic Discharge

    Static electricity can harm system boards. Perform service at an ESD workstation and follow proper ESD procedure to reduce the risk of damage to components. Kontron strongly encourages you to follow proper ESD procedure, which can include wrist straps and smocks, when servicing equipment.

  • Page 11: Preface

    This user's guide is designed to be used as step-by-step instructions for installation, and as a reference for operation, troubleshooting, and upgrades. For the circuits, descriptions and tables indicated, Kontron assumes no responsibility as far as patents or other rights of third parties are concerned.

  • Page 12: Customer Comments

    Disclaimer: We have tried to identify all situations that may pose a warning or a caution condition in this user's guide. However, Kontron does not claim to have covered all situations that might require the use of a Caution or a Warning.

  • Page 13: Unpacking

    Unpacking Follow these recommendations while unpacking: •Remove all items from the box. If any items listed on the purchase order are missing, notify Kontron customer service immediately. •Inspect the product for damage. If there is damage, notify Kontron customer service immediately.

  • Page 14: Regulatory Compliance Statements

    Testing and reports when required are performed under the international IECEE CB Scheme. Please consult the "Kontron Safety Conformity Policy Guide" for more information. For Canada and USA input voltage must not exceed -60Vdc for safety compliance.

  • Page 15: Limited Warranty

    In the event of repair, refunding or replacement of any part, the ownership of the removed or replaced parts reverts to Kontron, and the remaining part of the original guarantee, or any new guarantee to cover the repaired or replaced items, will be transferred to cover the new or repaired items.
  • Page 16 Chapter 1 Product Description 1.1 Product Overview ..........2 1.2 What’s Included ..........2 1.3 Board Specifications .......... 3 1.4 Compliance ............5 1.5 Hot-Plug Capability..........5 1.6 Interfacing with the Environment ......5 AT8060 www.kontron.com...

  • Page 17: Product Description

    Additional I/O interfaces can be added with RTM and AMC cards using the x8 PCIe Gen2 provided for each. 4 SAS2 interfaces are connected to RTM interace from the PCH for storage. The AT8060 operates in two power level modes, a regular power mode up to 225W for NEBS-like operation and a High Power mode up to 350W for higher-class chassis applications.

  • Page 18: Board Specifications

    Field updateable BIOS • Advanced Configuration and Power Interface (ACPI 2.0, 3.0 & 4.0) • Console redirection to serial port (VT100)with CMOS setup access, and SOL (Serial over LAN) • Event (correctable/uncorrectable ECC,PCIe, POST errors); log support to IPMC AT8060 www.kontron.com...
  • Page 19 Safety / EMC • Safety: UL 60950-1; CSA C22.2 No 60950-1-03; EN 60950-1:2001; IEC60950-1 • EMI/EMC: FCC 47 CFR Part 15, Class B; CE Mark to EN55022/EN55024/EN300386 Warranty Two years limited warranty * Designed to meet or exceed AT8060 www.kontron.com...

  • Page 20: Compliance

    Hot-Plug Capability The AT8060 supports Full Hot Swap capability as per PICMG3.0 R3.0 for the board itself, the RTM module and AMC bay. It can be removed from or installed in the system while it is on (without powering-down the system).

  • Page 21: Advanced Mezzanine Card

    1.6.2 Advanced Mezzanine Card The AT8060 has one AMC bay. Using a mezzanine allows to add storage or I/O not provided on board. 1.6.2.1 AMC Expansion The AMC slot provides an AMC.1 type 4, AMC.3 SATA. This means that the following signaling are supported: •...
  • Page 22 Product Description • PCI-Express clock on FCLKA • SATA on AMC port AT8060 www.kontron.com...
  • Page 23 2.5 Serial ATA/Serial Attached SCSI......11 2.6 Redundant BIOS Flash ........12 2.7 Ethernet Interfaces..........12 2.8 Serial Interfaces..........14 2.9 AMC Mezzanine ..........14 2.10 FPGA............... 15 2.11 Redundant IPMC Firmware & BootBlock....16 2.12 LEDs Description ..........16 www.kontron.com...

  • Page 24: Board Features

    .<=! = :"= '*! 6 6 7 + ) ;) E! > =G A5! ! >& ! :B. B * & & "'()** $      !"#      !)*&, +  % + "  9E9D 9;; AT8060 www.kontron.com...

  • Page 25: System Core

    Signal Path: - 2 USB 2.0 on front panel (J12, J13) - 2 USB 2.0 on the RTM front panel - 2 USB 2.0 onboard for the eUSB SSD AT8060 www.kontron.com...

  • Page 26: Usb Flash Module

    USB Flash Module The AT8060 supports up to two Solid State Drives. It is a NAND flash disk module with a USB 2.0 interface. The modules are socketed on two 2x5 headers attached to the AT8060. They are available in many sizes and accessible only when removing the top cover.

  • Page 27: Redundant Bios Flash

    The fabric interface can be either 10GbE or 1GbE. The AT8060 has boot from LAN capability (PXE) or iSCSI support on these ports. You can enable the option from the BIOS Setup Program. Please refer to Section 5.1, AMI UEFI Setup Program.

  • Page 28: Sfp

    The SFP port has a bi-color green/amber LED with the following signification: Table 2-1: SFP LED Significations Signification Green on Link 1Gbit Green blink Activity 1Gbit Amber on Link 10/100Mbit Amber blink Activity 10/100Mbit AT8060 www.kontron.com...

  • Page 29: Serial Interfaces

    Serial Interfaces The AT8060 uses serial interfaces to manage the CPU, the only way to get visual information from the board when used without a RTM806X. Serial ports are provided on the faceplate and on the RTM faceplate for asynchronous serial communications. They are 16C550 high-speed UART compatible and support 16-byte FIFO buffers for transfer rates from 9,6Kbps to 115,2Kbps.

  • Page 30: 2.10 Fpga

    EMC. The SATA interface on port 2 allows to use a SATA AMC storage mezzanine on the AT8060. AMC SATA electrical path is properly designed for Hot Swap operation but special care must be taken to ensure proper un-mount sequence within the operating system.

  • Page 31: 2.11 Redundant Ipmc Firmware & Bootblock

    Hot Swap LED (LED0) The Blue / Hot Swap LED indicates the hot swap status of the unit. The LED is ON when it is safe to remove the unit from the slot. During normal operation, this LED is OFF. AT8060 www.kontron.com...

  • Page 32: Out Of Service (Led1)

    The AdvancedTCA LED2 is green or amber and indicates a healthy condition. The healthy LED indicates if the blade is powered up and all voltages and temperatures are within specifications. During normal operation, this LED is ON (green). This LED is also ON (amber) when one of the RTM806X voltage or temperature fails. AT8060 www.kontron.com...

  • Page 33: Figure 2-2:Faceplate Leds

    Green Blink : Activity 1Gbit Amber On : Link 10-100Mbit Amber Blink : Activity 10-100Mbit SFP Front Led (Green/Amber) Green On : Link 1Gbit Green Blink : Activity 1Gbit Amber On : Link 10-100Mbit Amber Blink : Activity 10-100Mbit AT8060 www.kontron.com...
  • Page 34 Chapter 3 Installing the Board 3.1 Setting Jumpers..........20 3.2 Processor............21 3.3 Memory ............21 3.4 Onboard Connectors and Headers ......24 3.5 Board Hot Swap and Installation ......25 www.kontron.com...

  • Page 35: Installing The Board

    Reserved Reserved JP1 (5-6) AMC & RTM Activation When On, it overrides the AMC & RTM activation JP1 (7-8) AMC PCIe Override When On, drives AMC/RTM PCIe clocks JP1 (9-10) Reserved Reserved JP1 (11-12) Reserved Reserved JP1 (13-14) AT8060 www.kontron.com...

  • Page 36: Jumper Setting & Locations

    Do not attempt any heat sink removal after installation. Memory The AT8060 has 4 memory channels connected to each CPU. There is one DIMM per memory channel for a total of 4 per CPU. The AT8060 accepts DDR3, VLP(very low-profile) (0.72 inch; 18.29mm), 1.5V or 1.35V modules, registered, ECC, x4 or x8 memory with up to 4 ranks per DIMM.

  • Page 37: Memory List And Characteristics

    Memory can perform double refresh rate to get higher maximum operating temperature. Kontron recommends the use of validated memory with this product. Thermal issues or other problems may arise if you don’t use recommended modules. At the time of publication of this user guide, the following memories memory list has been have been qualified and approved.

  • Page 38: Installing Memory

    Repeat these steps to populate the other socket. To remove a memory module from a socket, push sideway the retaining clips on each side of the socket, to release the module. Pull out the memory from the socket. AT8060 www.kontron.com...

  • Page 39: Onboard Connectors And Headers

    AMC Connector Base & Fabric Interface Connector Base & Fabric Interface Connector RTM Connectors J30 & J31 RTM Connectors Power & IPMB Power & IPMB Figure 3-2:Onboard Connectors and Headers Locations J1 J2 J3 J4 J5 J6 J7 J8 AT8060 www.kontron.com...

  • Page 40: Board Hot Swap And Installation

    3 Wait until the blue LED is fully ON, this mean that the hot swap sequence is ready for board removal. 4 Use both ejectors to disengage the board from the backplane. 5 Pull the board out of the chassis. AT8060 www.kontron.com...

  • Page 41: Installing An Amc

    3 Wait until the blue LED is fully ON, this mean that the hot swap sequence is ready for board removal. 4 Use both ejectors to disengage the board from the CPU board. 5 Pull the board out of the chassis. AT8060 www.kontron.com...
  • Page 42 Chapter 4 Management 4.1 Hardware Management Overview ......28 4.2 Configuring LAN interface ........28 4.3 Web Management Interface ......... 28 4.4 Hardware Management Functionality ....31 4.5 IPMC Specific Features........31 4.6 IPMC ............... 33 www.kontron.com...

  • Page 43: Management

    • Type the IP address of the management controller in the browser. • Default username and password are admin / admin. Note: A maximum of 4 sessions can be opened simultaneously. Up to 5 users can be configured. An automatic logout will be done after 5 minutes of inactivity. AT8060 www.kontron.com...

  • Page 44: System

    FRUs. It also allows performing power down, graceful shutdown, power cycle, power up and reset of all the FRUs. Note: Power up of FRU0 is not supported, as the Web Management Interface is not accessible when it is powered down. AT8060 www.kontron.com...

  • Page 45: Maintenance

    The User ID 1 is a user without name and password. This user can be enabled or disabled and has a privilege level set to “User” by default. The User ID2 is pre-configured like an admin user. It has the “Administrator” privileges. AT8060 www.kontron.com...

  • Page 46: Logout

    Distributed Management Task Force (DMTF) specifies the RMCP format. This LAN communication path makes the Front Blade Unit reachable to the System Manager for any management action (IPMC firmware upgrade, query of all FRU Data, CPU reset etc.) without the need to go through the ShMC. AT8060 www.kontron.com...

  • Page 47: Sensors

    IPMC - System Event Log The Kontron IPMC implementation includes a Local System Event Log device as specified in the Section 31 of [IPMI 2.0]. The local System Event Log is a nonvolatile repository for the front board and all managed FRU events (AMC/RTM).

  • Page 48: Ipmc

    The table below lists the IPMI commands supported by the IPMC. This table is identical as the one provided by AMC.0 and PICMG 3.0. The last column states the Kontron support for the specific command. Table 4-2:IPM Device Supported Commands for IPMC IPMI Spec.
  • Page 49 IPMI Spec. section NetFn IPMI BMC req. Carrier IPMC Kontron support req. on IPMC Enable Message Channel 22.5 Receive Get Message 22.6 Send Message 22.7 Read Event Message 22.8 Buffer Get BT Interface 22.10 Capabilities Get System GUID 22.14 Get Channel Authentication 22.13...

  • Page 50: Table 4-5 Chassis Device Supported Commands For Ipmc

    IPMI Spec. section NetFn IPMI BMC req. Carrier IPMC Kontron support req. on IPMC Get Channel Cipher 22.15 Suites Suspend/Resume 24.3 Payload Encryption Set Channel Security 22.25 Keys Get System Interface 22.9 Capabilities Table 4-5:Chassis Device Supported Commands for IPMC IPMI Spec.

  • Page 51: Table 4-7 Pef And Alerting Supported Commands For Ipmc

    Table 4-7:PEF and Alerting Supported Commands for IPMC IPMI Spec. section NetFn IPMI BMC req. Carrier IPMC Kontron support req. on IPMC PEF and Alerting Commands Get PEF Capabilities 30.1 Arm PEF Postpone Timer 30.2 Set PEF Configuration 30.3 Parameters Get PEF Configuration 30.4...

  • Page 52: Table 4-9 Fru Device Supported Commands For Ipmc

    Table 4-9:FRU Device Supported Commands for IPMC IPMI Spec. section NetFn IPMI BMC req. Carrier IPMC Kontron support req. on IPMC FRU Device Commands Get FRU Inventory Area 34.1 Storage Info Read FRU Data 34.2 Storage Write FRU Data 34.3...

  • Page 53: Table 4-12 Lan Device Supported Commands For Ipmc

    Storage Set Auxiliary Log Status 31.13 Storage Table 4-12:LAN Device Supported Commands for IPMC IPMI Spec. section NetFn IPMI BMC req. Carrier IPMC Kontron support on req. IPMC LAN Device Commands Set LAN Configuration 23.1 Transport Parameters Get LAN Configuration 23.2...

  • Page 54: Table 4-14 Sol Commands

    IPMI Spec. section NetFn IPMI BMC req. Carrier IPMC Kontron support on req. IPMC Serial/Modem 25.9 Transport Connection Active Callback 25.10 Transport Set User Callback 25.11 Transport Options Get User Callback 25.12 Transport Options Table 4-14:SOL Commands IPMI Spec. section NetFn IPMI BMC req.

  • Page 55: Table 4-16 Amc.0 Carrier Commands For Ipmc

    IPMI Spec. section NetFn IPMI BMC req. Carrier IPMC Kontron support on req. IPMC Compute Power 3-82 PICMG Properties Set Power Level 3-84 PICMG Get Power Level 3-83 PICMG Renegotiate Power 3-91 PICMG Get Fan Speed Properties 3-86 PICMG Set Fan Level...

  • Page 56: Sensor Data Records

    Table 4-17:HPM Commands IPMI Spec. section NetFn IPMI BMC req. Carrier IPMC Kontron support on req. IPMC Get Target Upgrade Capabilities Get Component Properties Abort Firmware Upgrade Initiate Upgrade Action Upload Firmware Block Finish Firmware Upload Get Upgrade Status Activate Firmware...

  • Page 57: Table 4-18 Ipmc Sensors

    See IPMI v2.0 table 42-3, Sensor type code 12h for sensor definition Board Inlet Temperature (Degrees) Sensor type = 01h temperature Temp Board Inlet Threshold Event Reading type code = 01h threshold based See IPMI v2.0 table 42-2 for threshold based event AT8060 www.kontron.com...
  • Page 58 See IPMI v2.0 table 42-2 for threshold based event DIMM E Temperature (Degrees) Sensor type = 01h temperature Temp DIMM E Threshold Event Reading type code = 01h threshold based See IPMI v2.0 table 42-2 for threshold based event AT8060 www.kontron.com...
  • Page 59 See IPMI v2.0 table 42-2 for threshold based event FRU 1 (AMC B1) Power consumption in watts Sensor type = 0Bh Other Unit-Based Sensor (Watt) FRU1 AMC Power Threshold Event Reading type code = 01h threshold base See IPMI v2.0 table 42-2 for threshold based event AT8060 www.kontron.com...
  • Page 60 See IPMI v2.0 table 42-2 for threshold based event Voltage on board 1.25V suspend (management) power supply (Volts) Sensor type = 02h voltage Vcc +1.25V SUS Threshold Event Reading type code = 01h threshold based See IPMI v2.0 table 42-2 for threshold based event AT8060 www.kontron.com...
  • Page 61 See IPMI v2.0 table 42-2 for threshold based event Voltage on board CPU0 VDDQ payload power supply (Volts) Sensor type = 02h voltage Vcc VDDQ CPU 0 Threshold Event Reading type code = 01h threshold based See IPMI v2.0 table 42-2 for threshold based event AT8060 www.kontron.com...
  • Page 62 Fuse presence and fault detection -48 V on supply B Sensor type = 08h Power Supply Event Reading type code = 6Fh Sensor specific Fuse-Pres B Feed Discrete only offset 0,1 are used See IPMI v2.0 table 42-3, Sensor type code 08h for sensor definition AT8060 www.kontron.com...
  • Page 63 Board Power State Sensor type = D0h Kontron OEM Power State Sensor Power State Discrete Event Reading type code = 6Fh Sensor specific See OEM sensor table, Sensor type code D1h for sensor definition Actual power good status Sensor type = 08h Power Supply...
  • Page 64 DIMM F Status & Presence Sensor type = 25h Entity Presence Event Reading type code = 6Fh Sensor specific DIMM F Status Discrete Only offset 0,1,4,5,6,7 are used See IPMI v2.0 table 42-3, Sensor type 25h (Entity Presence) for sensor definition AT8060 www.kontron.com...
  • Page 65 General PCIe Error Sensor type = 13h Critical Interrupt Event Reading type code = 6Fh Sensor Specific PCIe Error Discrete Only offset 7 and 8 are used See IPMI v2.0 table 42-3, Sensor type code 13h for sensor definition AT8060 www.kontron.com...
  • Page 66 Bios Flash 0 Sensor type = 1Eh Boot Error Event Reading type code = 6Fh Sensor Specific Bios Flash 0 Discrete Only offset 3 is used See IPMI v2.0 table 42-3, Sensor type code 1Eh for sensor definition AT8060 www.kontron.com...
  • Page 67 Sensor type = C3h OEM (Kontron OEM IPMB-L link state) Event Reading type code = 6Fh Sensor specific FRU0 IPMBL State Discrete Only offset 2 and 3 are used See OEM table, Sensor type code C3h (Kontron OEM IPMB-L Link State) for sensor definition AT8060 www.kontron.com...
  • Page 68 FRU1 IPMBL State Discrete Only offset 2 and 3 are used See OEM table, Sensor type code C3h (Kontron OEM IPMB-L Link State) for sensor definition IPMB-L branch from FRU2 fault detection sensor Sensor type = C3h OEM (Kontron OEM IPMB-L link state)
  • Page 69 FRU Pwr Denied Discrete Event Reading type code = 03h Digital Discrete offset 0,1 are used -see OEM table, Sensor type code CDh (Kontron OEM FRU Power Denied) for sensor definition FRU Management Power Fail Sensor type = D2h OEM (Kontron FRU Management Power Fail)
  • Page 70 Sensor type = 10h Event Logging Disable Event Reading type code = 6Fh Sensor specific IPMC SEL State Discrete Only offset 2,4,5 are used See IPMI v2.0 table 42-3, Sensor type code 10h (Event Log Disable) for sensor definition AT8060 www.kontron.com...
  • Page 71 Event Reading type code = 6Fh Sensor specific, offsets 0 to 14 are Jumper Status used See OEM table, Sensor type code D3h (Kontron OEM Jumper Status) for sensor definition Provides status on the chipset Management Engine Sensor type = 28h Management Subsystem Health...

  • Page 72: Table 4-19 Ipmc Health Indicator Sensor Aggregation Table

    See IPMI v2.0 table 42-3, Sensor type code 27h for sensor definition Internal Management Controller firmware diagnostic Sensor type = C0h Kontron OEM Firmware Info Event Reading type code = 70h Kontron OEM Internal Diagnostic IPMI Info-1 Discrete See OEM table, Sensor type code C0h (Kontron OEM Firmware...

  • Page 73: Fru Information

    4.6.3 FRU Information Table 4-20:Board Information Area Board Information Area Board Mfg Date Mon Jan 23 11:14:00 2012 Board Mfg Kontron Board Product AT8060 Board Serial 0123456789 Manufacturing Date / Program to mfg. date Time Board Part Number T5008YYY_X-ZZZZZ AT8060...

  • Page 74: Table 4-21 Product Information Area

    Board Extra BI2MAC=XX:XX:XX:XX:XX:XX Board Extra CPUID=Á Table 4-21:Product Information Area Product Information Area Product Manufacturer Kontron Product Name AT8060 Product Part Number T5008YYY_X-ZZZZZ Product Version Product Serial 0123456789 Product FRU ID FRU5008-12 * Variable X, may change on revisions. AT8060...

  • Page 75: Figure 4-1:E-Keying Possibilities

    4.6.3.1 E-Keying Section The board e-keying information contains PICMG 3.0 R3.0 defined channel and link descriptors required for matchmaking computation by the ShMC. The following figure gives all E-Keying possibilities. Figure 4-1:E-Keying possibilities. AT8060 www.kontron.com...

  • Page 76: Table 4-22 E-Keying Capabilities Of The Board

    02h : PICMG 3.1 Ethernet Fabric Interface Link Designator (Bits 11-0) 141h : Fabric Interface, Channel 1, Port 0 Link Descriptor 00102F42h Link Grouping ID (Bits 31-24) 0h : Single-Channel link Link Type Extension (Bits 23-20) 1h : Fixed 10GBASE-BX4 [XAUI] AT8060 www.kontron.com...

  • Page 77: Table 4-23 Amc Carrier Activation And Carrier Information Table

    Module Activation and Power Descriptor Count Carrier Activation and Power Descriptors 7Ah,25h,FFh Local IPMB Address Maximum Module Current 25h (3.7 Amps at 12V =>44.4 Watts) Reserved The Carrier Information Table gives the Carrier AMC.0 specification version and the Carrier's AMC sites list. AT8060 www.kontron.com...

  • Page 78: Clock E-Keying Information

    Carrier Site Number 4.6.4 Clock E-Keying Information The clock E-Keying is used to find and activate matching clock pairs to/from available clock sources and clock receivers. The board has a clock generator used as the (PCIe) FCLKA of AMC B1. AT8060 www.kontron.com...
  • Page 79 Chapter 5 Chapter 5 Software Setup 5.1 AMI UEFI Setup Program ........65 5.2 Boot Utilities............ 107 5.3 Console Redirection (VT100 Mode)......108 AT8060 www.kontron.com...

  • Page 80: Software Setup

    The Unified Extensible Firmware Interface (hereafter known as UEFI) provides an interface between the operating system and the hardware of the AT8060. It uses the AMI Setup program, a setup utility in flash memory that is accessed by pressing the <F2> key at the appropriate time during board boot. This utility is used to set configuration data in the SPI.

  • Page 81: Menu Bar

    <Home> or <End> Move cursor to top or bottom of menu. <PgUp> or <PgDn> Move cursor to top or bottom of menu. <-> Select the Previous Value for the field. <+> Select the Next Value for the field. AT8060 www.kontron.com...
  • Page 82 ^v>< : Move Enter : Select : Value : Exit : General Help : Previous Values : Optimized Defaults : Save & Exit Setup [OK] Note: The " ^v> <" represent the arrows up, down left, right AT8060 www.kontron.com...

  • Page 83: Main Menu

    Total Memory in the Total Memory System. Choose the system System Language default language Set the Date. Use Tab to System Date switch between Data elements. Set the Time. Use Tab to System Time switch between Time elements. Access Level AT8060 www.kontron.com...

  • Page 84: Advanced Menu

    SAS Devices SAS Configuration Selects sub-menu. Configuration. Thermal Configuration Selects sub-menu. Thermal Configuration USB Configuration USB Configuration Selects sub-menu. Parameters COM Port Configuration Selects sub-menu. COM Port Parameters. Serial Port Console Serial Port Console Selects sub-menu. Redirection Redirection AT8060 www.kontron.com...
  • Page 85 Device to Generate PERR#. Enables or Disables PCI SERR# Generation Disabled, Enabled Device to Generate SERR#. Change PCI Express PCI Express Settings Selects sub-menu. Devices Settings. Change PCI Express GEN PCI Express GEN 2 Settings Selects sub-menu. Devices Settings. AT8060 www.kontron.com...
  • Page 86 Bytes, 4096 Bytes select the value. Set Maximum Read Auto, 128 Bytes, 256 Request Size of PCI Bytes, 512 Bytes, Maximum Read Request Express Device or allow 1024 Bytes, 2048 System BIOS to select Bytes, 4096 Bytes the value. AT8060 www.kontron.com...
  • Page 87 'Link Training' bit in Link Status register. Value range from 10 to 1000 In order to save power, software will disable Keep Link ON, Unpopulated Links unpopulated PCI Express Disable Link links, if this option set to 'Disable Link'. AT8060 www.kontron.com...
  • Page 88 Disabled, Enabled AtomicOp Requests via Egress Ports will be blocked. If supported by hardware and set to 'Enabled', this permits IDO Request Enable Disabled, Enabled setting the number of ID-Based Ordering (IDO) bit (Attribute[2]) requests to be initiated. AT8060 www.kontron.com...
  • Page 89 Auto, Force to 2.5 Link operational speed Target Link Speed GT/s, Force to 5.0 by restricting the values GT/s advertised by the Upstream component in its training sequences. When 'Auto' is selected HW initialized data will be used. AT8060 www.kontron.com...
  • Page 90 If supported by hardware and set to 'Disabled', this will disable the hardware's Hardware Autonomous Enabled, Disabled ability to change link Speed speed except speed rate reduction for the purpose of correcting unstable link operation. AT8060 www.kontron.com...
  • Page 91 Windows XP SP2, SuSE Linux 9.2, RedHat Enterprise 3 Update 3.) Enable the Mid Level Hardware Prefetcher Disabled, Enabled Cache (L2) streamer prefetcher. Enable the Mid Level Adjacent Cache Line Disabled, Enabled Cache (L2) prefetching Prefetch of adjacent cache lines. AT8060 www.kontron.com...
  • Page 92 Display only support for virtual machines. L1 Data Cache Display only L1 Data Cache Size L1 Code Cache Display only L1 Code Cache Size L2 Cache Display only L2 Cache Size L3 Cache Display only L3 Cache Size AT8060 www.kontron.com...
  • Page 93 MCERR but may signal CMCI if CMCI is enabled Enable/Disable IOH Poison Support. When Poison is enabled, no Poison Support in IOH Disabled, Enabled signaling or logging is done at IIO. Logging and signaling is responsibilty of the Data consumer. AT8060 www.kontron.com...
  • Page 94 Disabled, Enabled Disabled: PCI Expansion ROM not used to boot the system. Enabled: initializes RTM Management GbE port 2 Expansion ROM. RTM: GE OpROM, Port 2 Disabled, Enabled Disabled: PCI Expansion ROM not used to boot the system. AT8060 www.kontron.com...
  • Page 95 Only present when "AHC Mode" or "RAID SATA Ports Hot Plug Port 0 Hot Plug Disabled, Enabled Mode" is selected. Support External SATA Port 0 Disabled, Enabled Only present when "AHC Mode" is selected. eSATA Ports Support AT8060 www.kontron.com...
  • Page 96 CPU Energy Read Enable CPU Temperature Read CPU Temp Read Disabled, Enabled Enable Lock all Alert Enable Alert Enable Lock Disabled, Enabled settings PCH Alert Disabled, Enabled PCH Alert pin enable DIMM Alert Disabled, Enabled DIMM Alert pin enable AT8060 www.kontron.com...
  • Page 97 The time-out value for 1 sec, 5 sec, 10 sec, USB transfer time-out Control, Bulk, and 20 sec Interrupt transfers. USB mass storage device 10 sec, 20 sec, 30 Device reset time-out Start Unit command sec, 40 sec time-out. AT8060 www.kontron.com...
  • Page 98 Help text COM Port Configuration Subtitle COM Port Chip Display only COM Port Parameters. Set Parameters of COM COM Port A Configuration Selects sub-menu. port A Set Parameters of COM COM Port B Configuration Selects sub-menu. port B AT8060 www.kontron.com...
  • Page 99 Serial Port Disabled, Enabled Port (COM) Enable or Disable Serial Device Settings Display only Port (COM) Auto, IO=2F8h; IRQ=3;, IO=3F8h; IRQ=3,4,5,6,7,10,11, 12;, IO=2F8h; IRQ=3,4,5,6,7,10,11, Select an optimal setting Change Settings 12;, IO=3E8h; for IO device. IRQ=3,4,5,6,7,10,11, 12;, IO=2E8h; IRQ=3,4,5,6,7,10,11, AT8060 www.kontron.com...
  • Page 100 Disabled, Enabled Enable or Disable. The settings specify how the host computer and the remote computer Console Redirection (which the user is using) Selects sub-menu. Settings will exchange data. Both computers should have the same or compatible settings. AT8060 www.kontron.com...
  • Page 101 Redirection Settings page, for more Help with Terminal Type/ Emulation. Selects serial port transmission speed. The 9600, 19200, 57600, speed must be matched Bits per second 115200 on the other side. Long or noisy lines may require lower speeds. AT8060 www.kontron.com...
  • Page 102 Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning). The Stop Bits Display only standard setting is 1 stop bit. Communication with slow devices may require more than 1 stop bit. AT8060 www.kontron.com...
  • Page 103 Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning). The Stop Bits 1, 2 standard setting is 1 stop bit. Communication with slow devices may require more than 1 stop bit. AT8060 www.kontron.com...
  • Page 104 The Settings specify if BootLoader is selected than Legacy console redirection is disabled Redirection After BIOS Always Enable, before booting to Legacy POST BootLoader OS. Default value is Always Enable which means Legaacy console Redirection is enabled for Legacy OS. AT8060 www.kontron.com...
  • Page 105 Mark, Space Mark: parity bit is always 1. Space: Parity bit is always 0. Mark and Space Parity do not allow for error detection. They can be used as an additional data bit. AT8060 www.kontron.com...

  • Page 106: Chipset

    Force System Vga to Text Disabled, Enabled text mode When System Mode has Vga. 5.1.5 Chipset Feature Option Description Help text North Bridge Selects sub-menu. North Bridge Parameters South Bridge South Bridge Selects sub-menu. Parameters ME Subsystem ME Subsystem Selects sub-menu. Parameters AT8060 www.kontron.com...
  • Page 107 Memory Access (NUMA). Enable or Disable MPST Support. Along with enabling MPST Support, it also requires NUMA to MPST Support Disabled, Enabled be enabled and Channel Interleaving to be set to 1-way for MPST tables to be published. AT8060 www.kontron.com...
  • Page 108 Memory in the Slot. Node 0 Ch 1 Dimm 0 Display only Memory in the Slot. Node 0 Ch 2 Dimm 0 Display only Memory in the Slot. Node 0 Ch 3 Dimm 0 Display only Memory in the Slot. AT8060 www.kontron.com...
  • Page 109 3875700: PCIe* at 8 GT/s Enabled, Disabled 2/3 WA may not Train Correctly Enable/Disable based Equalization Phase 2/3 Enabled, Disabled Equalization Phase(2,3) Supported Supported or Not 3246043: Not sending Gen3 Equalization EQ TS1 in REC_RCVRLOCK Enabled, Disabled Redoing WA when redoing equalization AT8060 www.kontron.com...
  • Page 110 / total value of all sockets with 64MB alignment. Value ranges are from [1-8].Ratio calculated based on : value selected / total value of all Mmio Ratio Skt1 Numeric sockets. If granularity fails, resources will be allocated equally for all sockets. AT8060 www.kontron.com...
  • Page 111 Allows for selecting the QPI Link Frequency Select GT/s, 8.0 GT/s QPI Link Frequency Enable or Disable QPI QPI Link0s Disabled, Enabled Link0s Enable or Disable QPI QPI Link0p Disabled, Enabled Link0p Enable or Disable QPI QPI Link1 Disabled, Enabled Link1 AT8060 www.kontron.com...
  • Page 112 Disabled. Enabled/Disabled onboard SATA RAID option rom. When Enabled is selected (to Onboard SATA RAID Oprom Disabled, Enabled access SATA disks on the RTM), Disable SCU devices feature must be set to Disabled.. AT8060 www.kontron.com...
  • Page 113 USB Port 0 (SSD0) Disabled, Enabled Port 0 Enabled/Disabled USB USB Port 1 (SSD1) Disabled, Enabled Port 1 Enabled/Disabled USB USB Port 2 (FP0) Disabled, Enabled Port 2 Enabled/Disabled USB USB Port 5 (RTM0) Disabled, Enabled Port 5 AT8060 www.kontron.com...
  • Page 114 ME Ext FW Status Value : Display only BIOS Booting Mode Display only BIOS POST Booting mode No. of cores that should Cores Disabled Display only be disabled on each CPU Socket Firmware SKU ME FW SKU Information : Display only Information AT8060 www.kontron.com...

  • Page 115: Server Mgmt

    FRU2 On RTM Deactivation Deactivate FRU2 to shutdown the RTM only Select FRU0 to shutdown Deactivate FRU0, the whole board or FRU3 On RTM Disk Deactivation Deactivate FRU3 to shutdown the RTM Disk only AT8060 www.kontron.com...
  • Page 116 Maximum time in miliseconds taken to limit the power after the Correction Time Limit Numeric platform power has reached the power limit before the Exception Action will be taken Statistics sampling Statistics Sampling period Numeric period in seconds AT8060 www.kontron.com...
  • Page 117 System Version System Serial Number Display only System Serial Number Board Manufacturer Display only Board Manufacturer Board Product Name Display only Board Product Name Board Version Display only Board Version Board Serial Number Display only Board Serial Number AT8060 www.kontron.com...
  • Page 118 Packets are to be added or not. Enter VLAN ID value in 802.1q VLAN ID Value Numeric decimal. VLAN ID must be between 1 and 4094. Enter VLAN Priority 802.1q VLAN Priority Numeric value in decimal. Proper value below 8. AT8060 www.kontron.com...
  • Page 119 Packets are to be added or not. Enter VLAN ID value in 802.1q VLAN ID Value Numeric decimal. VLAN ID must be between 1 and 4094. Enter VLAN Priority 802.1q VLAN Priority Numeric value in decimal. Proper value below 8. AT8060 www.kontron.com...

  • Page 120: Boot

    Set the order of the Network Device BBS Display only if device are present. legacy devices in this Priorities group Set the order of the X Device BBS Priorities Display only if device are present. legacy devices in this group AT8060 www.kontron.com...

  • Page 121: Security

    Save Options Subtitle Save Changes done so Save Changes far to any of the setup options. Discard Changes done so Discard Changes far to any of the setup options. Restore/Load Default Restore Defaults values for all the setup options. AT8060 www.kontron.com...

  • Page 122: Boot Utilities

    2 Option ROM for SAS needs to be enabled in the BIOS (Setup -> Chipset -> South Bridge -> Onboard SAS Oprom). 3 Press "CTRL-I" during the execution of the option ROM. The SAS configuration utility menu is now available. AT8060 www.kontron.com...

  • Page 123: Console Redirection (Vt100 Mode)

    Emulation (VT-UTF8 and VT100+)",available for download at microsoft.com. F1 Key <ESC>1 F2 Key <ESC>2 F3 Key <ESC>3 F4 Key <ESC>4 F5 Key <ESC>5 F6 Key <ESC>6 F7 Key <ESC>7 F8 Key <ESC>8 F9 Key <ESC>9 F10 Key <ESC>0 AT8060 www.kontron.com...
  • Page 124 AMI Aptio UEFI Serial Redirection supports these key sequences under two configurations: • "Terminal Type" setup question is set to "VT-UTF8" • "Terminal Type" setup question is set to "VT100" or "ANSI" and "VTUTF8 Combo Key Support" setup question is set to "Enabled" AT8060 www.kontron.com...
  • Page 125 Chapter 6 Thermal Considerations 6.1 Thermal Monitoring ........... 111 AT8060 www.kontron.com...

  • Page 126: Thermal Considerations

    All sensors that are available on the AT8060, its RTM and the AMC can carry are listed into the Sensor Data Repository with their thresholds as defined by the PICMG 3.0 specification. The following extract (from the PICMG 3.0 Base Specification) details naming convention for thresholds as well as the meaning of each...

  • Page 127: Table 6-1 Temperature Sensors Thresholds

    +85°C +95°C (Channel 2, Dimm0) Temp DIMM#6 5°C 0°C -10°C +75°C +85°C +95°C (Channel 2, Dimm1) Temp DIMM#7 5°C 0°C -10°C +75°C +85°C +95°C (Channel 3, Dimm0) Temp DIMM#8 5°C 0°C -10°C +75°C +85°C +95°C (Channel 3, Dimm1) AT8060 www.kontron.com...

  • Page 128: Airflow Blockers

    AMC slot) to block any slot open to exterior air. Failure to do so, would go against forced air principles applied on ATCA components, reducing system's cooling efficiency. Additionally, airflow blockers offer a higher impedance to forced air than typical board, who tend to let more air into slots filled with AT8060 or other ATCA boards.

  • Page 129: Thermal Profile

    8 Cores 95W (Short Term 40CFM) 8 Cores 70W (Short Term 40CFM) 6 Cores 60W (40CFM) 6 Cores 95W (40CFM) Nebs Short term target (55C) Nebs Long term target (40C) 8 Cores 70W (Long term 29CFM) 8 Cores 95W (Long term 40CFM) AT8060 www.kontron.com...

  • Page 130: Memory & I/O Maps

    LAN BIOS around 30KB if activated, address may vary External Fiber Channel BIOS 18KB-64KB , address may vary E0000-FFFFF System BIOS 100000-PCI Memory DRAM available Note: Actual memory availability to OS depends on the total amount of DRAM installed and the PCI resource usage. AT8060 www.kontron.com...

  • Page 131: Kontron I/O Mapping

    Kontron I/O Mapping Address Optional Address Function 000-01F DMA Controller 1 020-03F Interrupt Controller 1 040-05F Timer 060-06F Keyboard (USB Emulation) 070-07F Real-time clock 080-09F DMA Page Register 0A0-0BF Interrupt Controller 2 0C0-0DF DMA Controller 2 0F0-0F1, 0F8-0FF Math Coprocessor...
  • Page 132 XAUI/BX4 Network Connection (rev 01) Interface Buses 05 - 0d are reserved for AMC Hot-Plug 8086 1d69 Serial Attached SCSI controller: Intel Corporation Patsburg 4-Port SATA/SAS Storage Control Unit (rev 05) 8086 1d70 SMBus: Intel Corporation Patsburg SMBus Controller 0 (rev AT8060 www.kontron.com...
  • Page 133 Register 0 (rev 07) 8086 3cf4 System peripheral: Intel Corporation Sandy Bridge Inte- IIO #0 grated Memory Controller System Address Decoder 0 (rev 8086 3cf6 System peripheral: Intel Corporation Sandy Bridge System IIO #0 Address Decoder (rev 07) AT8060 www.kontron.com...
  • Page 134 8086 3cb6 System peripheral: Intel Corporation Sandy Bridge Inte- IIO #0 grated Memory Controller ERROR Registers 2 (rev 07) 8086 3cb7 System peripheral: Intel Corporation Sandy Bridge Inte- IIO #0 grated Memory Controller ERROR Registers 3 (rev 07) AT8060 www.kontron.com...
  • Page 135 IIO #1 Channel 6 (rev 07) 8086 3c27 System peripheral: Intel Corporation Sandy Bridge DMA IIO #1 Channel 7 (rev 07) 8086 3c28 System peripheral: Intel Corporation Sandy Bridge Address IIO #1 Map, VTd_Misc, System Management (rev 07) AT8060 www.kontron.com...
  • Page 136 System peripheral: Intel Corporation Sandy Bridge Unicast IIO #1 Register 0 (rev 07) 8086 3ce8 System peripheral: Intel Corporation Sandy Bridge Unicast IIO #1 Register 0 (rev 07) 8086 3ce8 System peripheral: Intel Corporation Sandy Bridge Unicast IIO #1 Register 0 (rev 07) AT8060 www.kontron.com...
  • Page 137 System peripheral: Intel Corporation Sandy Bridge Inte- IIO #1 grated Memory Controller ERROR Registers 1 (rev 07) 8086 3cb4 System peripheral: Intel Corporation Sandy Bridge Inte- IIO #1 grated Memory Controller Channel 0-3 Thermal Control 2 (rev 07) AT8060 www.kontron.com...
  • Page 138 3c44 Performance counters: Intel Corporation Sandy Bridge Ring IIO #1 to QuickPath Interconnect Link 0 Performance Monitor (rev 8086 3c45 System peripheral: Intel Corporation Sandy Bridge Ring to IIO #1 QuickPath Interconnect Link 1 Performance Monitor (rev 07) AT8060 www.kontron.com...

  • Page 139: Connector Pinouts

    J15 & J17 Faceplate SFP Connectors AMC connector AMC Connector Base & Fabric Interface Connector Base & Fabric Interface Connector RTM Connectors J30 & J31 RTM Connectors Power & IPMB Power & IPMB Post Codes (J2) Signal VCC3 POST:DATA POST:CLOCK AT8060 www.kontron.com...

  • Page 140: Amc B1(J19

    CLK1+ B117 TxD13- B160 TxD20+ TxD2- CLK1- B118 TxD13+ B161 B119 B162 RxD20- RxD3+ CLK2+ B120 RxD13- B163 RxD20+ RxD3- CLK2- B121 RxD13+ B164 B122 B165 TCLK TxD3+ CLK3+ B123 TxD14- B166 TxD3- CLK3- B124 TxD14+ B167 TRST# AT8060 www.kontron.com...

  • Page 141: Usb Dual Port (J12

    Signal Signal Signal B125 B168 ENABLE# PS0#(GND) B126 RxD14- B169 B127 RxD14+ B170 B128 USB Dual Port (J12) Signal DATA- DATA+ Serial Port, COM1(J13) Signal Signal USB Flash Drive(J10, J11) Signal Signal N.C. N.C. USB_DATA- N.C. N.C. USB_DATA+ AT8060 www.kontron.com...

  • Page 142: Base Interface & Fabric Interface (J23

    N.C. N.C. N.C. N.C. N.C. N.C. ROW G ROW H ROW AB ROW CD ROW EF ROW GH Rx3[2]+ Rx3[2]- Rx1[2]+ Rx1[2]- Rx3[1]+ Rx3[1]- Rx1[1]+ Rx1[1]- BI_DD1+ BI_DD1- BI_DD2+ DI_DD2- N.C. N.C. N.C. N.C. N.C. N.C. N.C. N.C. AT8060 www.kontron.com...

  • Page 143: Rtm Connector (J30

    NC / AMC19_RX+ NC / AMC19_RX- NC /AMC20_TX+ NC / AMC20_TX- N/C+ PE2_TX+ PE2_TX- PE3_RX+ PE3_RX- PE1_TX+ PE1_TX- PE0_TX+ PE0_TX- PE1_RX- PE1_RX+ PE3_TX+ PE3_TX- SAS2_TX+ SAS2_TX- SAS2_RX+ SAS2_RX- SAS1_TX+ SAS1_TX- SAS0_TX+ SAS0_TX- MC_DDC_SCL_5 MC_DDC_SDA_5 CLK_PE1+ CLK_PE1- MC_HSYNCB MC_VSYNCB AT8060 www.kontron.com...

  • Page 144: Power (P10

    SAS1_RX- SAS0_RX+ SAS1_RX- MC_BLUE MC_RED MC_GREEN B.10 Power (P10) Signal Signal N.P. N.P. N.P. N.P. HA7/P SCL_A SDA_A SCL_B SDA_B MT1_TIP(N.C.) MT2_TIP(N.C.) RING_A(N.C.) RING_B(N.C.) MT1_RING(N.C.) MT2_RING(N.C.) RRTN_A(N.C.) RRTN_B(N.C.) SHELF_GND LOGIC_GND ENABLE_B VRTN_A VRTN_B EARLY_A EARLY_B ENABLE_A -48V_A -48V_B AT8060 www.kontron.com...

  • Page 145: Bios Setup Error Codes

    MRC is done C.1.2 Error Codes Code Description 0E8h No Memory 0E9h Memory is locked by LT, inaccessible. 0EAh DDR3 training did complete successfully 0EBh Memory test failure 0EDh UDIMMs and RDIMMs are both present DIMM vendor-specific errors AT8060 www.kontron.com...

  • Page 146: Sec Status Codes

    Pre-memory South Bridge initialization (South Bridge module specific) 0x1D - 0x2A OEM pre-memory initialization codes 0x2B Memory initialization. Serial Presence Detect (SPD) data reading 0x2C Memory initialization. Memory presence detection 0x2D Memory initialization. Programming memory timing information 0x2E Memory initialization. Configuring memory AT8060 www.kontron.com...
  • Page 147 0xE8 S3 Resume Failed in PEI 0xE9 S3 Resume PPI not Found 0xEA S3 Resume Boot Script Error 0xEB S3 OS Wake Error 0xEC-0xEF Reserved for future AMI error codes 0xF0 Recovery condition triggered by firmware (Auto recovery) AT8060 www.kontron.com...

  • Page 148: Dxe Status Codes

    South Bridge DXE Initialization (South Bridge module specific) 0x76 South Bridge DXE Initialization (South Bridge module specific) 0x77 South Bridge DXE Initialization (South Bridge module specific) 0x78 ACPI module initialization 0x79 CSM initialization 0x7A – 0x7F Reserved for future AMI DXE codes AT8060 www.kontron.com...
  • Page 149 0xB3 System Reset 0xB4 USB hot plug 0xB5 PCI bus hot plug 0xB6 Clean-up of NVRAM 0xB7 Configuration Reset (reset of NVRAM settings) 0xB8 – 0xBF Reserved for future AMI codes 0xC0 – 0xCF OEM BDS initialization codes AT8060 www.kontron.com...

  • Page 150: Acpi/Asl Status Codes

    System is waking up from the S3 sleep state 0x40 System is waking up from the S4 sleep state 0xAC System has transitioned into ACPI mode. Interrupt controller is in PIC mode. 0xAA System has transitioned into ACPI mode. Interrupt controller is in APIC mode. AT8060 www.kontron.com...

  • Page 151: Software Update

    D. Software Update To update the board software, it is recommended to use the Kontron update CD. A version of this CD can be found on the CD/DVD provided with your board or on the Kontron Canada’s site. Updating your board with this Update CD will have a payload impact on your board.

  • Page 152: Getting Help

    Tel.: +49 (0) 8341 803 333 Fax: (450) 437-8053 Fax: +49 (0) 8341 803 339 If you have any questions about Kontron, our products, or services, visit our Web site at: www.kontron.com You also can contact us by E-mail at: North America: support@ca.kontron.com...

  • Page 153: When Returning A Unit

    •Clearly write or mark the RMA number on the outside of the package you are returning. •Ship prepaid. We take care of insuring incoming units. North America EMEA Kontron Canada, Inc. Kontron Modular Computers GmbH 4555, Ambroise-Lafortune Sudetenstrasse 7 Boisbriand, Québec 87600 Kaufbeuren...

  • Page 154: Glossary

    Certification Body Compact Disk CDROM (Same as CD-ROM). Compact Disk Read-Only Memory. Conformit?Europ?nne. European Conformity. Cubic Foot per Minute Code of Federal Regulations CHannel CLocK. Acronym often used in signal name. CLK1 AdvancedTCA bused resource Synch clock group 1 AT8060 www.kontron.com...
  • Page 155 Emergency Management Services comit?Europ?n de Normalisation. European Committee for Standardization (English). The standards published by the European Committee for Standardization are recognizable by their prefix EN. ESCD Extended System Configuration Data ElectroStatic Discharge eUSB Embedded Universal Serial Bus AT8060 www.kontron.com...
  • Page 156 IPMB-A Intelligent Platform Management Bus A IPMB-B Intelligent Platform Management Bus B IPMB-L Intelligent Platform Management Bus Local IPMC Intelligent Platform Management Controller IPMI Intelligent Platform Management Interface Interrupt ReQuest Industry Standard Architecture. 16-bit (XT) bus architecture. KiloByte AT8060 www.kontron.com...
  • Page 157 (on-off) and a modulation in the analog domain. Programmable Interrupt Controller PICMG PCI Industrial Computer Manufacturers Group PICMG? PCI Industrial Computer Manufacturers Group Product Issue Report Programmable Logic Device AT8060 www.kontron.com...
  • Page 158 Small Form-factor Pluggable that supports data rates up to 10.0 Gbit/s. ShMC Shelf Management Controller SIMD Single Instruction, Multiple Data Stock-Keeping Unit. Unique identifier for each distinct product and service that can be purchased. SLP_S4 S4 Suspend to Disk Spread Spectrum Clock Solid-State Drive AT8060 www.kontron.com...
  • Page 159 Intel (R) Virtualization Technology for IA-32 Intel (R) Architecture WHEA Windows Hardware Error Architecture XAUI X (meaning ten) Attachement Unit Interface. A standard for connecting 10 Gigabit Ethernet (10GbE) ports. Power supply VCORE Processor CORE power supply Video Graphics Array AT8060 www.kontron.com...
  • Page 160 Intel (R) Virtualization Technology for Directed I/O VT-x Intel (R) Virtualization Technology for IA-32 Intel (R) Architecture WHEA Windows Hardware Error Architecture XAUI X (meaning ten) Attachement Unit Interface. A standard for connecting 10 Gigabit Ethernet (10GbE) ports. AT8060 www.kontron.com...

Table of Contents
