PCIe Drive Controllers in BaseIO Blade

RAID PCIe Disk Controller

007-5832-002
The SGI UV 2000 system offers a RAID or non-RAID (JBOD) PCIe-based drive controller that
resides in the BaseIO blade's PCIe slot. Figure 1-9 shows an example of the system disk HBA
controller location in the BaseIO blade.
Note: The PCIe drive controller (upper-right section in Figure 1-9) always hosts the system boot
drives.

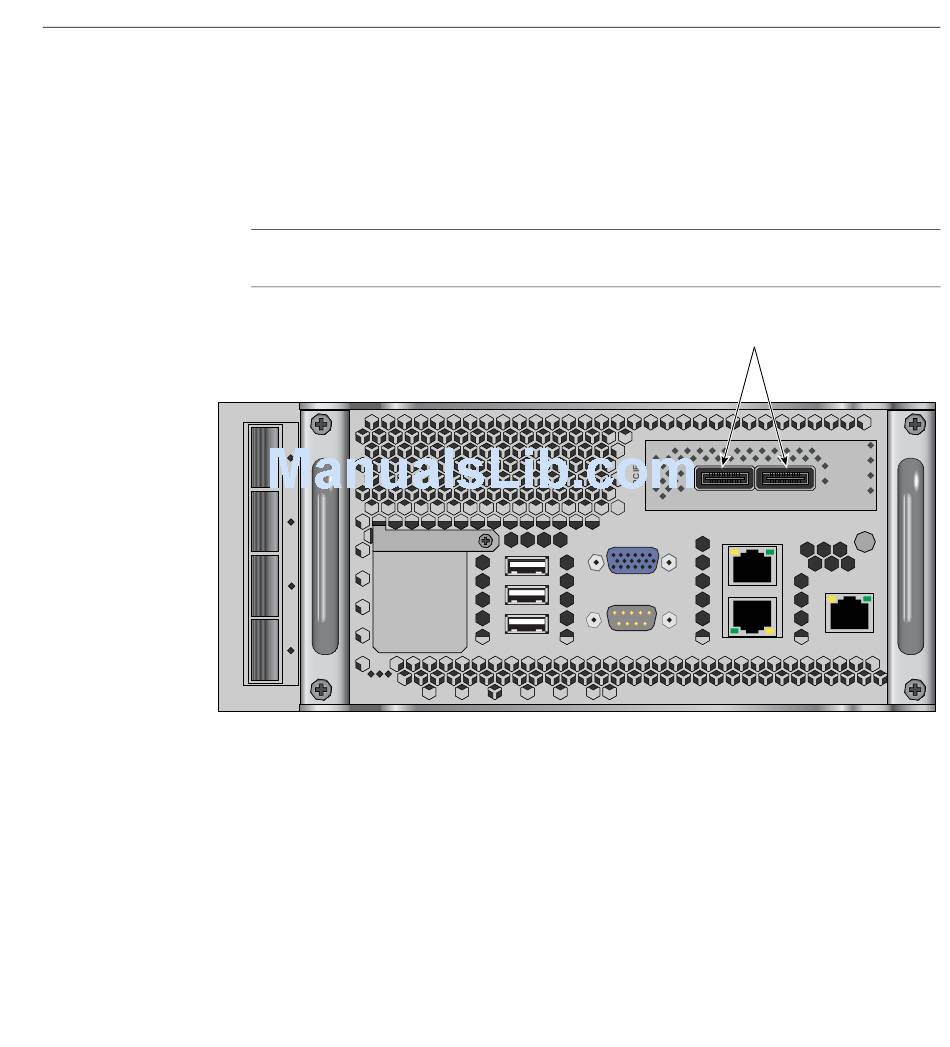

Figure 1-9 BaseIO Blade and PCIe Disk Controller Example
At the time this document was published, the optional RAID controller used in the BaseIO blade
PCIe slot is an LSI MegaRAID SAS 9280-8e. This PCIe 2.0 card uses two external SAS control
connectors and supports the following:
• RAID levels 0, 1, 5, 6, and 10
• Advanced array configuration and management utilities
SAS System Disk Connectors
VGA
2
1
0
USB SERIAL
Optional Components
LAN1
LAN0 BMC
