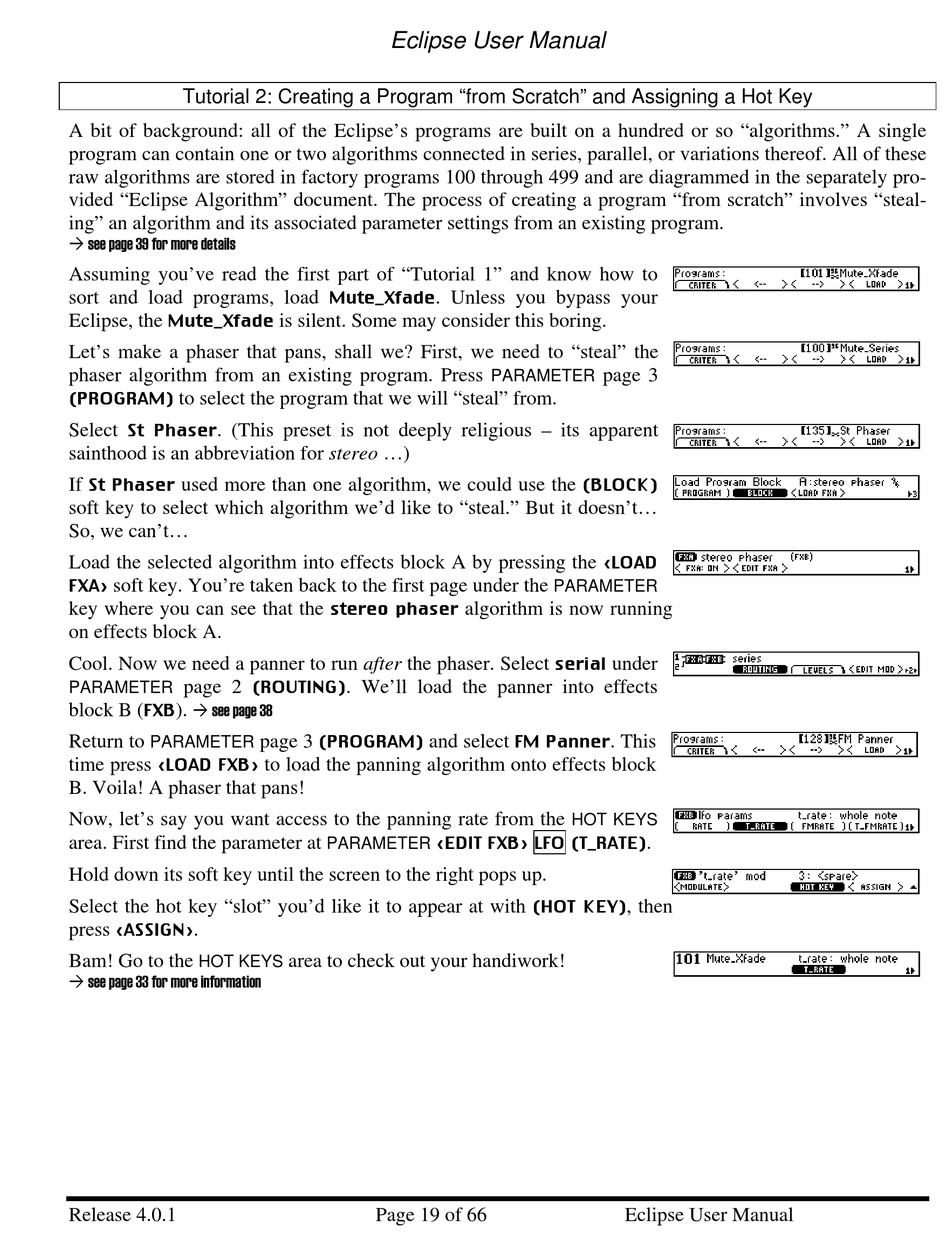

Tutorial 2: Creating a Program "from Scratch" and Assigning a Hot Key

A bit of background: all of the Eclipse's programs are built on a hundred or so "algorithms." A single
program can contain one or two algorithms connected in series, parallel, or variations thereof. All of these
raw algorithms are stored in factory programs 100 through 499 and are diagrammed in the separately pro-
vided "Eclipse Algorithm" document. The process of creating a program "from scratch" involves "steal-
ing" an algorithm and its associated parameter settings from an existing program.
 see page 39 for more details
Assuming you've read the first part of "Tutorial 1" and know how to
sort and load programs, load
Mute_Xfade
Eclipse, the
Let's make a phaser that pans, shall we? First, we need to "steal" the
phaser algorithm from an existing program. Press
(PROGRAM)
to select the program that we will "steal" from.
St Phaser
Select . (This preset is not deeply religious – its apparent
sainthood is an abbreviation for stereo ...)
St Phaser
If used more than one algorithm, we could use the
soft key to select which algorithm we'd like to "steal." But it doesn't...
So, we can't...
Load the selected algorithm into effects block A by pressing the
FXA>
soft key. You're taken back to the first page under the
key where you can see that the
on effects block A.
Cool. Now we need a panner to run after the phaser. Select
page 2
PARAMETER
FXB
 see page 38
block B ( ).
Return to
PARAMETER
<LOAD FXB>
time press
B. Voila! A phaser that pans!
Now, let's say you want access to the panning rate from the
area. First find the parameter at
Hold down its soft key until the screen to the right pops up.
Select the hot key "slot" you'd like it to appear at with
<ASSIGN>
press .
Bam! Go to the
HOT KEYS
 see page 33 for more information
