Eventide Eclipse User Manual

Hide thumbs Also See for Eclipse:
Table of Contents

Advertisement

Quick Links

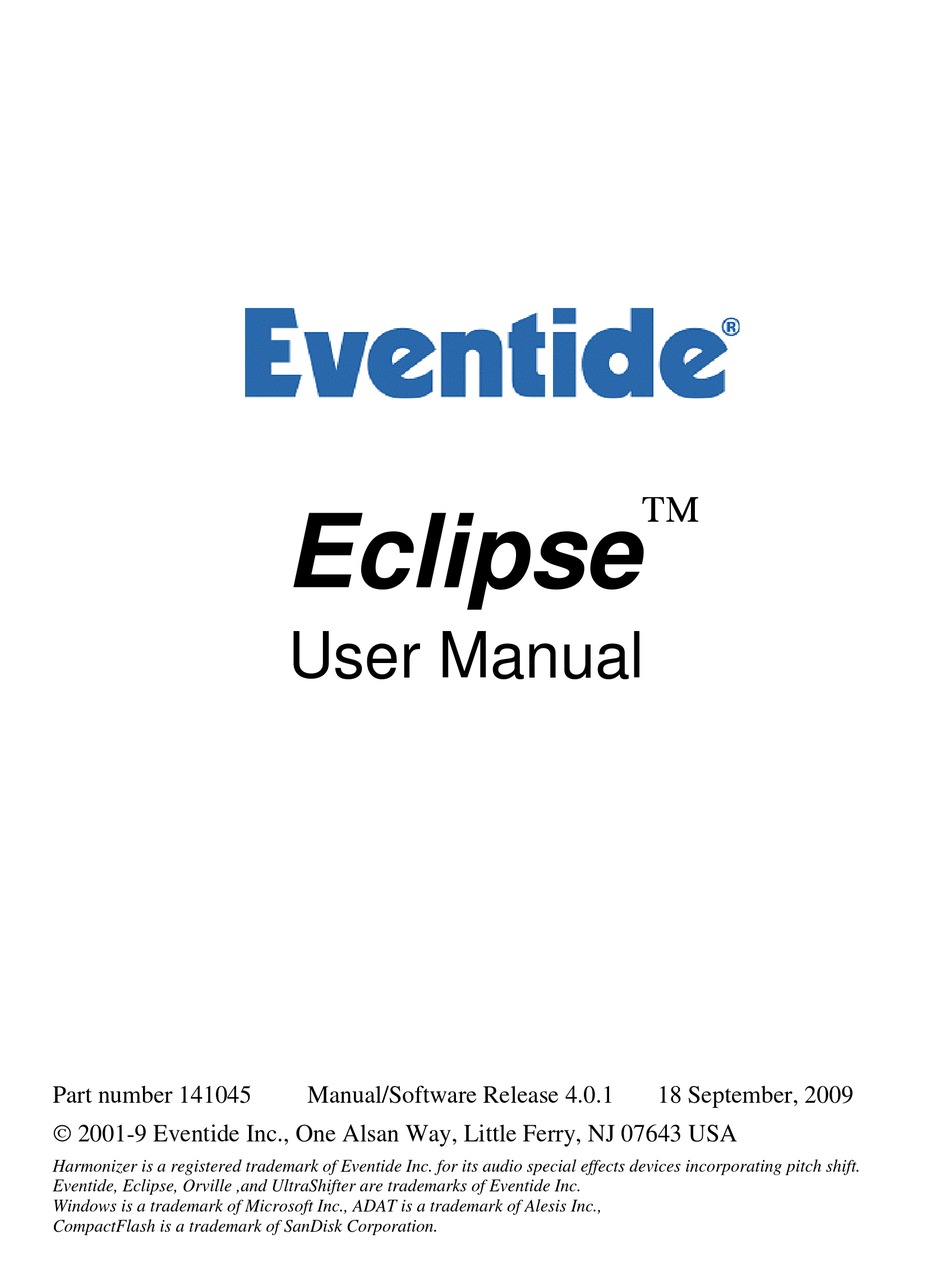

Eclipse
User Manual
Part number 141045
Manual/Software Release 4.0.1
18 September, 2009
 2001-9 Eventide Inc., One Alsan Way, Little Ferry, NJ 07643 USA
Harmonizer is a registered trademark of Eventide Inc. for its audio special effects devices incorporating pitch shift.
Eventide, Eclipse, Orville ,and UltraShifter are trademarks of Eventide Inc.
Windows is a trademark of Microsoft Inc., ADAT is a trademark of Alesis Inc.,
CompactFlash is a trademark of SanDisk Corporation.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eclipse and is the answer not in the manual?

Questions and answers

Related Manuals for Eventide Eclipse

Summary of Contents for Eventide Eclipse

  • Page 1 18 September, 2009  2001-9 Eventide Inc., One Alsan Way, Little Ferry, NJ 07643 USA Harmonizer is a registered trademark of Eventide Inc. for its audio special effects devices incorporating pitch shift. Eventide, Eclipse, Orville ,and UltraShifter are trademarks of Eventide Inc.
  • Page 2 This page is intentionally left blank...

  • Page 3: Table Of Contents

    Eclipse User Manual - Contents The Hows and Whys of This Manual....................5 Overviews, Basic Information, and Quickstart..................6 The Big Picture – A Must-Read ......................6 Knobs, Keys, and Jacks ........................... 7 The Front Panel ............................ 7 The Back Panel............................. 9 Getting Around and Altering Parameters ....................
  • Page 4 Eclipse User Manual - Contents Saving Programs ....................................30 Updating Programs................................... 31 Comparing the Current Program with the Saved Program....................... 31 User Groups ...................................... 31 Removing Programs........................... 31 Removing ALL Your Saved Programs ............................... 31 Checking free space in internal memory or a card..........................31 Copying and Protecting Programs......................
  • Page 5 Eclipse User Manual- Contents Sample Rates ..................................... 58 Frequency Response ..................................58 Digital Inputs/Outputs ..................................58 Analog Input (XLR Balanced Inputs)..............................58 Analog Output ....................................58 Remote Control Inputs..................................58 MIDI Connections ..................................... 58 Power ........................................ 59 Size ........................................59 Weight........................................

  • Page 6: Eclipse User Manual - Contents

    Eclipse User Manual - Contents This page is intentionally left blank Eclipse User Manual Page 4 of 66 Release 4.0.1...

  • Page 7: The Hows And Whys Of This Manual

    The Hows and Whys of This Manual Of course you have more exiting things to do than to read this manual. For one thing, you have Eventide’s fabulous new Eclipse Harmonizer brand processor waiting to effect all those sounds so badly in need of effecting.

  • Page 8: Overviews, Basic Information, And Quickstart

    PARAMETER When it comes to routing signals inside the Eclipse, it’s helpful to think of the effects blocks and the rout- ing between them as existing within the “DSP.” Eclipse User Manual Page 6 of 66...

  • Page 9: Knobs, Keys, And Jacks

    LEVELS SETUP area. Refer to the “Eclipse System Signal Flow” sheet provided in the pocket of this manual to “look” at the signal flow outside the DSP. You cannot save these settings as parts of programs.  All of the routing and levels inside the DSP are addressed in the area.
  • Page 10 12) Rate & Source The LED that is illuminated tells you the rate at which the Eclipse is sampling. The LED indicates that the Eclipse is taking its clock from the digital device connected to the  see page 25 Eclipse’s digital input.

  • Page 11: The Back Panel

    6dB. E) XLR Digital Interface Use these connectors to connect professional digital audio gear to the Eclipse. These cables are differential with a shielded twisted pair. To select the XLR input as the digital source, SETUP DIG-IN (DIG-IN) go to .
  • Page 12 Eclipse User Manual F) RCA Digital Interface Use these connectors to hook up the Eclipse to CD players, DAT recorders, and other au- dio gear using RCA connectors. The connectors are two-conductor RCA jacks. Your plug should have the shield connected to the sleeve with the single shielded conductor con- SETUP DIG-IN (DIG- nected at the tip.

  • Page 13: Getting Around And Altering Parameters

    49 Getting Around and Altering Parameters At any given time, the Eclipse is doing a whole bunch of “stuff.” Unfortunately, you can’t look at all that “stuff” in one fell swoop. We could have arranged things otherwise, but we figured you’d rather not devote twelve rack As a compromise, we’ve created a number of “win-...

  • Page 14: Understanding The Display And Soft Keys

    Press the Pressing the soft key below a bracketed phrase highlights key on your Eclipse until you see the same screen. LEVELS that phrase and allows you to adjust the parameter associated with that phrase. From now on, we’ll just {IN GAIN} treat those phrases as if they were actually the soft keys like so: “press...

  • Page 15: The Top Line Of The Display

    Eclipse User Manual You know you’re a level down because a little triangle appears in the lower right corner of the screen. To come “back up,” press the area key for the area you’re in (in this example, we’d LEVELS METER .

  • Page 16: Quickstart

    Hooking Up To the Outside World The Eclipse will sum analog and digital inputs and will output both analog and digital signals at all times.  see the separate “Eclipse System Signal Flow” sheet for all the gory details Analog Connections Insert either an unbalanced 1/4-inch cable (at –10dB) or a balanced XLR...

  • Page 17: Choosing Effects

    Tempo The Eclipse’s tempo feature is your ticket to a good time… Almost all the time-based parameters (LFO rates, delay times, etc.) in the Eclipse are synchronized to its tempo. Consequently, setting the Eclipse’s tempo to the tempo of the material you’re working with makes for very useful effecting.

  • Page 18: Tempo Mode

    Tutorial 1: Loading a Program, Setting the Tempo, and Assigning Modulation OK, we’re going to run you through “a day in the life of your Eclipse”! First, turn it on. We want to load a program, and that’s the sort of thing that happens in the “...
  • Page 19 Select and use the knob to tune in the “good stuff”! OK, let’s load a different program that has an LFO so we can check out the Eclipse’s tempo feature. Go back to the area and press the PROGRAM <...
  • Page 20 Eclipse User Manual Finally, let’s assign the modulation block’s LFO to a parameter. Press <EDIT MOD> LFO#1 (T_RATE) whole page 2 , and set PARAMETER note . Now the modulation block’s LFO is cycling once a measure. Use ^-BACK  see page 43 for information on the modula- soft key to “jump up”...

  • Page 21: Tutorial 2: Creating A Program "From Scratch" And Assigning A Hot Key

    Tutorial 2: Creating a Program “from Scratch” and Assigning a Hot Key A bit of background: all of the Eclipse’s programs are built on a hundred or so “algorithms.” A single program can contain one or two algorithms connected in series, parallel, or variations thereof. All of these raw algorithms are stored in factory programs 100 through 499 and are diagrammed in the separately pro- vided “Eclipse Algorithm”...

  • Page 22: Operation

    Keep the Eclipse well ventilated, dust-free, dry, and, like Little Bear’s porridge, neither too hot nor too cold. Don’t play catch with the Eclipse or use it as a bat. Pat the Eclipse gently and whisper sweet nothings of affection in its direction before powering it down for the night…...

  • Page 23: Global Signal Flow And Levels

    These adjustments are global in that they do not change when you load a new program. As such, they are useful for adjusting the levels and signal flow of your Eclipse relative to the rest of your studio or rack.

  • Page 24: Input And Output Modes (Global Stereo Or Global Mono?)

    Use the that we are discussing here to harmonize your Eclipse with the rest of your studio or rack. If you use the Eclipse LEVELS (WET/DRY) in an effects loop, you probably want set to 100%, but if you always run a guitar through it, you may want this parameter set to some lower value.
  • Page 25 . It is advisable to leave this at 0dB and to optimize the input level by adjusting the device connected to the analog inputs of the Eclipse. However, definitely LEVELS {IN-GAIN} should the connected device be constrained in some way.

  • Page 26: Bypassing And Muting

    Digital Setup The Eclipse is ready to interface with virtually any piece of digital equipment on the market; any rate, any bit depth, any connector. What’s more, it can accept one protocol at its input and pass a different protocol at its output.

  • Page 27: Internal And External Clock Source

    Eclipse User Manual The Eclipse reads the digital input format and makes any adjustments that it needs to automatically, with the exception of slaving to the digital input’s clock. Unless the device connected to the Eclipse is slaved to SETUP DIG-IN (CLOCK)

  • Page 28: Using Higher Sampling Rates Disables Some Programs

    Note: If there is no signal at the digital input or if the signal is absent or corrupt, the LED and rate LED will blink and the Eclipse will switch to the internal rate closest to the last valid external rate.

  • Page 29: Adat Output Or Two-Channel Optical Output

    The selected ADAT channel will carry the same signal that the corresponding ADAT input carried. Mute The selected ADAT channel will carry silence. Ch 1 The selected ADAT channel will carry the Eclipse’s channel 1 output. Ch 2 The selected ADAT channel will carry the Eclipse’s channel 2 output. ADAT If you select...

  • Page 30: Program Operations - Load, Save, Remove, Etc

    Sorting and Loading Programs The Eclipse comes with a wealth of factory programs (program numbers 100 – 499). In addition, you can save up to one hundred programs in internal memory (numbers 0 – 99), and up to five hundred programs on a memory card (numbers 500 –...

  • Page 31: Loading Programs From Midi

    SETUP nels. That’s all fine, but get this: MIDI program change messages range from 1 to 128. The Eclipse’s program numbers range from 0 to 999. Those numbers don’t jibe. There are two solutions to this problem: midi maps, and bank select messages.

  • Page 32: Using Midi Bank Select Messages

    13. At power-up, Eclipse will default to the current Midi Map (see above). After receiving a MIDI bank se- lect message, Eclipse will “remember” this bank until it receives another Bank Select message and will NOT use the selected MIDI Map.

  • Page 33: Updating Programs

    <REMOVE> Next, press page 2 PROGRAM To avoid accidents, Eclipse will want to be sure that you are sure before removing a possibly important program. Hey! You can’t remove factory programs! Removing ALL Your Saved Programs You can remove all your internal programs in one fell swoop by press- UTILITY <CLEAR>...

  • Page 34: Copying And Protecting Programs

    Eclipse User Manual Copying and Protecting Programs SAVE AS To copy a program, simply load it and then use page 2 to save it in a new location. PROGRAM SETUP MODES To protect all your programs from fumbling hands, turn (PROTECT) Naming Things –...

  • Page 35: Parameters

    Hot Keys OK, the Eclipse has a cute little screen and sometimes you have to dig to get to the parameter you want to adjust. That can be a drag, especially if the parameter is one that you access often. The...

  • Page 36: Renaming Hot Keys

    If the hot keys “slot” you chose was unoccupied, the Eclipse will assign the hot key without hesitation. However, if the slot you chose was occupied, the Eclipse will verify that you would like to replace the old hot key with the new one.

  • Page 37: Tempo-Based Parameters: T_Rate, T_Delay, T_Tap, Etc

    “master” controls. HOT KEYS Tempo-based Parameters: T_RATE, T_DELAY, T_TAP, etc. The Eclipse’s little heart is always thumping to the beat of its “tempo.” The tempo can be keyed in, (see page tapped in on the key, derived from a sequencer connected to the Eclipse’s MIDI in, and so on .

  • Page 38: Envelope-Following Parameters: Sens, Attack, And Decay

    In the Eclipse, envelope followers frequently modulate LFO rates, so that as the input signal gets louder, the LFO rate speeds up.

  • Page 39: Sends And "Manual" Parameters

    PARAMETER These parameters exist to tweak the levels and interaction between the effects blocks to achieve a desired overall effect. Do not use these parameters to adjust the level of the Eclipse relative to the rest of your (page 21) studio or rack –...

  • Page 40: Routing

    For example, if you’re us- stereo ing the Eclipse during a mixdown, you’ll probably want to have the input mode set to , but if Mono (see page 22) you’re using it with a guitar, you’ll probably want it in...

  • Page 41: Wet/Dry Ratio

    Think of it as stealing the algorithm and its parameter values. Since programs 100 to 199 represent the raw algorithms themselves, loading a “raw algorithm” is just a special case of the more general procedure. See the separate “Eclipse Algorithms” document for more information about the Eclipse’s algorithms.

  • Page 42: Modulating Parameters Via The Modulation Block: Lfo, Adsr, Envelope, Midi, Pedals, And More

    Eclipse User Manual Note that if you load an algorithm into effects block B ( ), none of the newly loaded algorithm’s will be present. KEYS In most cases, any two algorithms can be selected and loaded. However, a few algorithms are sufficiently large that they can only be paired with a small one.

  • Page 43: Scaling Modules And Selecting Modulation Type

    Eclipse User Manual ext1 ext16 through Modules ernal to the Eclipse (such as MIDI controllers or foot pedals) modulate the pa- ext1 ext2 ext3 rameter. You decide which external modules are associated with , and so EXTERNAL  see page 45 for more on...
  • Page 44 Eclipse User Manual bipolar bipolar uses the base value as a starting point and modulates above and below it. In the example above, the parameter value will vary between 1,500 and 2,500 (centering on the base value). Note that for bipolar, the scale setting reflects the amount the parame- ter will vary above and below the base value.

  • Page 45: Setting Up The Modulation Block

    Setting Up the Modulation Block The Modulation Block Let it be said: The modulation block is totally cool. It’s a collection of modules residing inside the Eclipse waiting to be patched to effects <EDIT parameters. The modulation block exists at...

  • Page 46: More On Modulation

    Eclipse User Manual More on modulation On Eclipse, almost everything can be modulated, and almost everything can be a modulation source. For example, a hot key can be used to modulate other parameters, but it can itself be modulated. A powerful demonstration of this is to load or create a dual-effect program.

  • Page 47: External Controllers

    Eclipse User Manual External Controllers EXTERNAL page 3 “connects” external controllers to the Eclipse. You can make up to sixteeen SETUP EXT#1 EXT#16 “connections,” through . Let’s see how one of these “connections” is made. EXTERNAL EXT#1 First, press page 3 .
  • Page 48 “captures” the EXTERNAL EXT#1 <CAPTURE> first MIDI message sent to the Eclipse. Press page 3 page 2 , and SETUP then send the Eclipse the MIDI message you would like to use. Eclipse User Manual Page 46 of 66 Release 4.0.1...

  • Page 49: Dedicated External Controllers

    (FXB BYP) Allows you to bypass effect block B if it is being used. (BYPASS) Allows you to bypass the Eclipse from a foot switch or MIDI source. Using this controller  see pages 8 and 24 for more on Bypass is the same as hitting the switch on the front panel.

  • Page 50: Midi Setup

    ” might call for MIDI notes to adjust the amount of pitch shifting that is applied to an audio signal.  to remote control almost any parameter in the Eclipse (including input and output levels) via external  see page 40 controllers.

  • Page 51: The Rear Panel Pedal Jacks

    “system exclusive, sequence out” MIDI mes- sages of the Eclipse loop back into the same Eclipse without delay, this will create a situa- tion similar to acoustic feedback and digital demons will unleash a raging fury inside your helpless Eclipse.

  • Page 52: Storing And Loading Setups

    Storing and Loading Setups The Eclipse’s global configuration or “setup” can be saved internally in much the same way as a user pre- set. This “setup” consists of all the machine settings except for the preset, its parameters and related set- tings.

  • Page 53: Utilities

    Eclipse expects to receive at the serial port. For things to work properly, all of these parameters must be set to the same values on both the Eclipse and the machine connected to the serial port. Higher baud rates result in faster transmission times, but most machines have a ceiling above which errors occur.

  • Page 54: Bulk Copying Programs

    WARNING: If, for any reason, this dump gets corrupted in some way beyond the Eclipse’s control and then sent back to the Eclipse, you will lose all the information you are trying to back up, as well as the Eclipse's contents. If you do a “backup” in this way, especially to a computer, it would be a good idea to do it twice, to two separate files, and then to compare the size of the files.

  • Page 55: Fixing And Initializing Internal Memory

    Fixing Strange Behavior, Freezes, Etc. In the rare and unlikely event that your Eclipse starts behaving erratically or freezes, the first thing to do is power down, let it sit for a few seconds in the corner to “think about what it did,” then power back up.

  • Page 56: Formatting Memory Cards

    Still having problems? Try reinstalling the operating system as described in the Updating Software sec- tion below. No luck? Your system may have a hardware problem and you should contact Eventide or your dealer for servicing. Formatting Memory Cards...

  • Page 57: Word Clock Termination

    Eclipse is shipped without termination in place meaning that they can be used at one end of a Word Clock cable without changes. To use them in the middle of a chain the termination should be disconnected by removing the black jumper on the motherboard directly behind the Word Clock connector.

  • Page 58: Updating Software

    Update Utility Awaiting Contact 6. If you have not connected the Eclipse to the COM1 port on your PC, you may need to use the “OUp- date Setup” button to change the COM port. You should not change the default settings of 115200 baud, 8 data bits, 1 stop bit, and no parity.

  • Page 59: Finding Out The Current Software Version

    The characteristics of CompactFlash cards may vary, depending on model and manufacturer. The follow- ing have been successfully tested by Eventide for use with Eclipse. Other cards may well be entirely suitable. Also, other capacities in the same manufacturer’s ranges as those listed below will probably also be suitable.

  • Page 60: Electrical Specifications

    Eclipse User Manual Electrical Specifications Sample Rates 96kHz, 88.2kHz, 48kHz, 44.1kHz or external. Frequency Response Sample Rate 44.1kHz 48kHz 88.2kHz 96kHz +0/-0.1dB 20Hz-20kHz 20Hz-22kHz 20Hz-41kHz 20Hz-44kHz +0/-3.0dB 5Hz-21kHz 5Hz-23kHz 5Hz-42kHz 5Hz-46kHz Digital Inputs/Outputs 2 AES and 2 S/P DIF at 44.1-96kHz. AES relay bypass at power down.

  • Page 61: Power

    Eclipse User Manual Power 25 watts 100-125V, 220-240V, AC 50/60Hz Size Inches: 1.75h x 19w x 12.5d 4.45h x 48.3w x 31.7d Weight 12 pounds (5.5 Kg) net, 17 pounds (8Kg) shipping weight All specifications are subject to change or improvement at any time without notice or obligation.

  • Page 62: Warranty Information

    The warranty DOES NOT COVER shipping damage, either to or from Eventide. If you receive a new unit from us in damaged condition, notify us and the car- rier;...

  • Page 63: Who Performs Warranty Work

    Who performs warranty work The only company authorized to perform work under this warranty is Eventide Inc., Little Ferry, New Jersey. While you are free to give personal authorization to anyone else (or to work on it yourself), we will not honor claims for payment for parts or labor from you or from third parties.

  • Page 65: Index

    Eclipse User Manual Index Algorithms, 8, Numbers, Loading, 19, Dumping data, Analog input, 9, Edited LED, 8 Effect blocks Guitar, 9, 14 Loading Analog output, algorithms, 9, 14 Busy LED, 8 Effects blocks, MIDI In / 6, 33, 34 Serial port...
  • Page 66 Eclipse User Manual- Index Program- Modulating. specific, 39 LFO. See Modulation Parameters block Memory card, 8, Retriggering 20, 56 LFO's, 37 Meter, 8, 21 Sends, 37 MIDI Tap to As external determine modulators, delay times, Loading Tempo- Programs, controlled, 16, 35...
  • Page 67 Eclipse User Manual Ganged Tempo, 6, 8, 15, Parameters, 16, 17 Conceptual Understanding flow chart Different of, 17 Kinds, 12 Disabling, 16, Software Updating, 56 Unbalancing Version, 57 analog Storing data connectors, 9 externally. User Groups. See Dumping See Programs...

  • Page 68: Eclipse User Manual

    Eclipse User Manual- Index This page is intentionally left blank Eclipse User Manual Page 66 of 66 Release 4.0.1...
