MIDI double
Allows selection of any MIDI control number with very
fine quantization. Input range is 0 to 16,383. A third pa-
rameter appears,
for con are 0 to 31. The MIDI control number con will pass the "coarse" value for the
modulation and the MIDI control number
the modulation.
chan pressur
MIDI channel pressure message.
pitch wheel
MIDI pitch bend message.
note on
MIDI keyboard note number. Middle C on an 88-note keyboard gives a value of "60."
Note switch
Triggers when a MIDI note on event is received.
MIDI program
Triggers when a MIDI program change message is received.
MIDI clock
Modulates as a function of the BPM (beats per minute) of a MIDI clock signal. The
value of this external controller is
so 120BPM yields a value of 0.25, 96BPM yields a value of 0.2, and so on. This MIDI
message is channel-independent.
MIDI start
Triggers when a MIDI start command is received. This MIDI command is channel-
independent.
MIDI stop
Triggers when a MIDI stop command is received. This MIDI command is channel-
independent.
For all of the above MIDI messages (except for those involving "MIDI
clock"), if page 2
SETUP
MIDI message will be accepted on any channel.
On the other hand, if
6
channel (e.g., ), then you must select the channel that the external con-
troller will be accepted on.
Jumping back to
SETUP

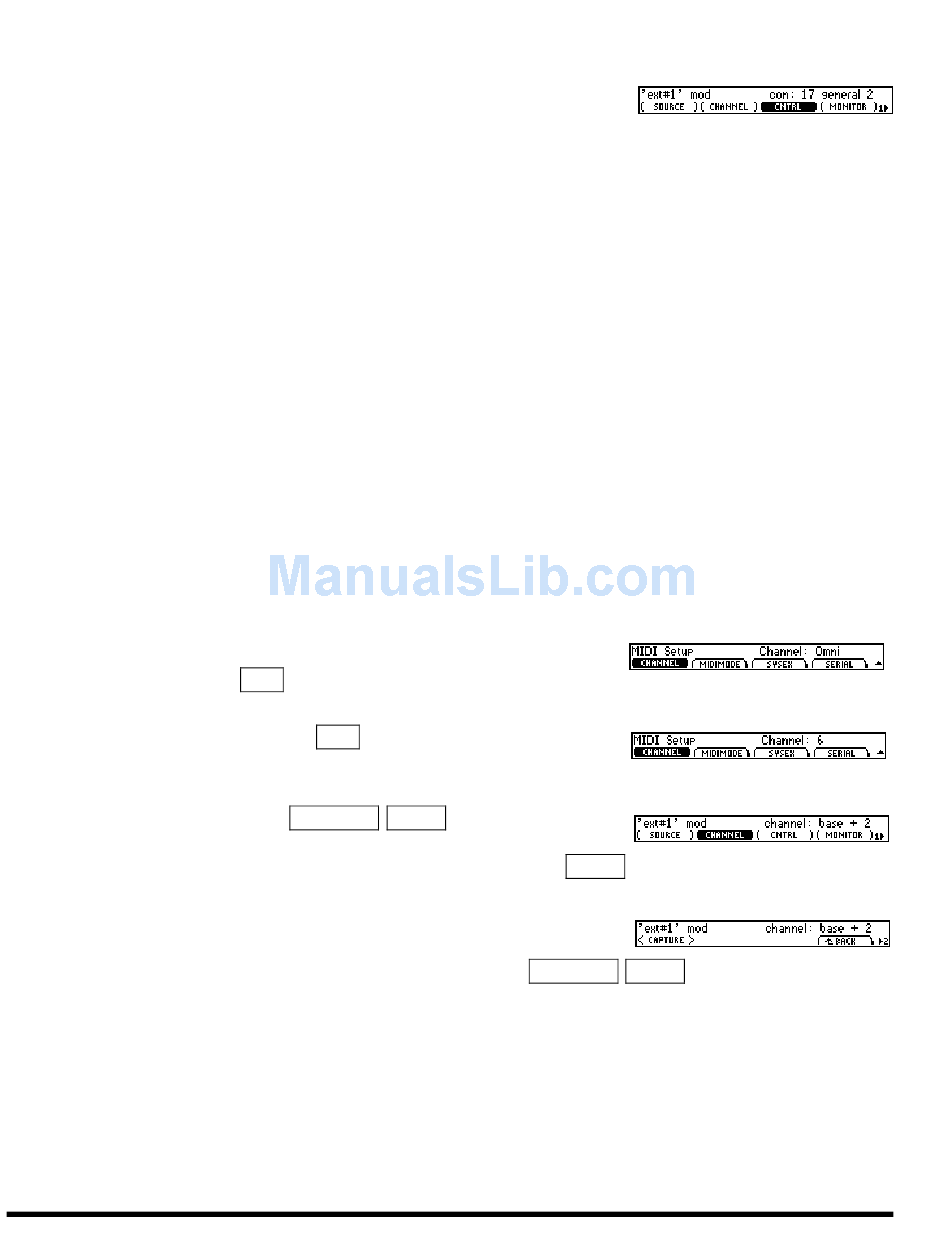

Your selection is made relative to the channel selected in the MIDI
setup. In the example shown to the right, our base channel is
on channel 8 (6 + 2 = 8).
As opposed to "manually" selecting a MIDI controller along with its
proper channel and control number, a feature exists that "captures" the
first MIDI message sent to the Eclipse. Press
then send the Eclipse the MIDI message you would like to use.
