PERCIVAL MEW GULL

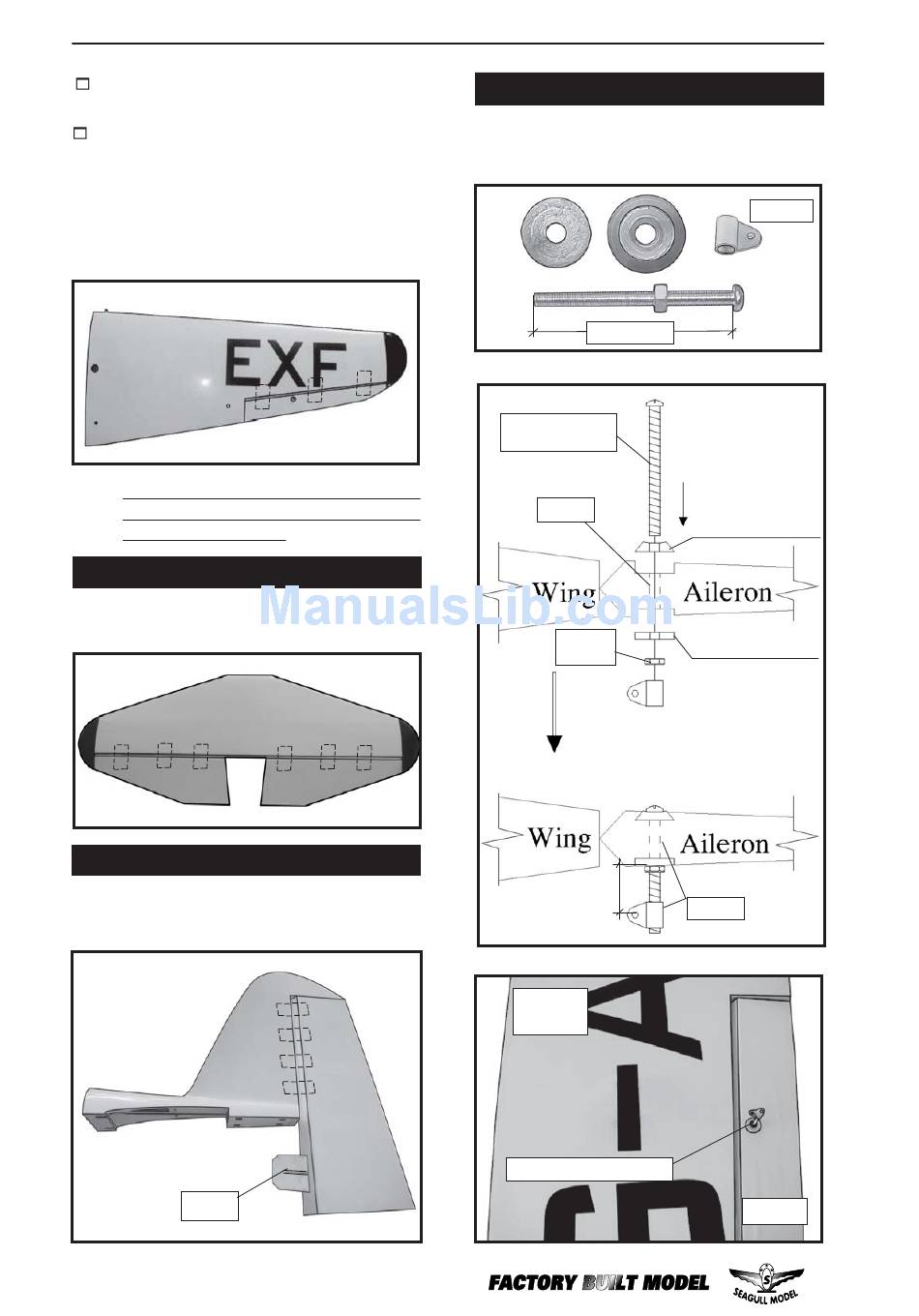

7) Repeat this process with the other wing
panel, securely hinging the aileron in place.
8) After both ailerons are securely hinged,
firmly grasp the wing panel and aileron to
make sure the hinges are securely glued and
cannot be pulled out. Do this by carefully
applying medium pressure, trying to separate
the aileron from the wing panel. Use caution
not to crush the wing structure.
Note:
Work the aileron up and down several
times to "work in" the hinges and check
for proper movement.

HINGING THE ELEVATOR.

Glue the elevator hinges in place using the
same techniques used to hinge the ailerons.

HINGING THE RUDDER.

Glue the rudder hinges in place using the
same techniques used to hinge the ailerons.
Hinge.
4
Instruction Manual
AILERON CONTROL HORN
Aileron control horn installation:
.
below
3x40mm.
CONTROL HORN
.
M3 SCREW
Epoxy.
M3 LOCK
.
NUT
.
18mm
Wing
bottom.
Aileron control horn.
See pictures
2 sets.
.
ALUMINUM WASHER
.
ALUMINUM WASHER
Epoxy.
Aileron.
