PERCIVAL MEW GULL

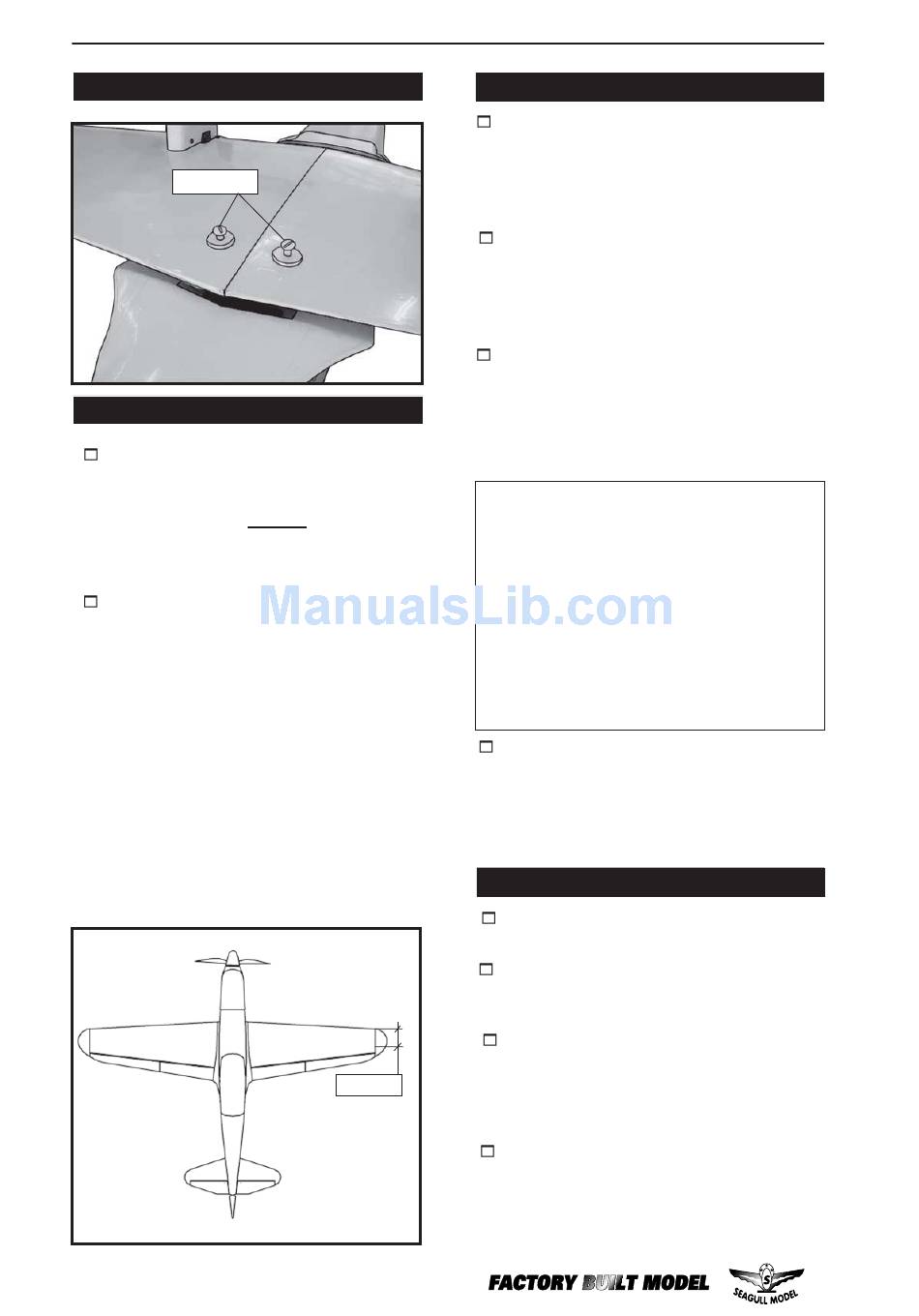

ATTACHMENT WING - FUSELAGE.
Wing bolt.
BALANCING.
1) It is critical that your airplane be bal-
anced correctly. Improper balance will cause
your plane to lose control and crash. The cen-
ter of gravity is locate
leading edge of the wing, measured at wing
tip.
2) If the nose of the plane falls, the plane
is nose heavy. To correct this first move the
battery pack further back in the fuselage. If
this is not possible or does not correct it, stick
small amounts of lead weight on the fuselage
sides under the horizontal stabilizer. If the tail
of the plane falls, the plane is tail heavy.
To correct this, move the battery and receiver
forward orif this is not possible, stick weight
onto the firewall.
When balanced correctly, the airplane should
sit level or slightly nose down when you lift it
up with your fingers.
22
70mm
back from the
70mm.
Instruction Manual

CONTROL THROWS.

1) We highly recommend setting up the
PERCIVAL MEWGULL using the control
throws listed at right. We have listed control
throws for both Low Rate (initial test
flying/sport flying) (aerobatic flying).
2) Turn on the radio system, and with the
trim tabs on the transmitter in neutral, center
the control surfaces by making adjustments
to the clevises or adjustable servo connectors.
The servo arms should be centered also.
3) When the elevator, rudder and aileron
control surfaces are centered, use a ruler and
check the amount of the control throw in each
surface. The control throws should be
measured at the widest point of each sur-
face!
INITIAL FLYING/SPORT FLYING
Ailerons : 10mm" up 10mm" down.
Elevator : 10mm" up 10mm" down.
Rudder : 15mm" right 15mm" left.
AEROBATIC FLYING
Ailerons : 15mm" up 15mm" down.
Elevator : 15mm" up 15mm" down.
Do not use the aerobatic settings for
4) By moving the position of the adjust-
able control horn out from the control surface,
you will decrease the amount of throw of that
control surface. Moving the adjustable con-
trol horn toward the control surface will in-
crease the amount of throw.
FLIGHT PREPARATION.
A) Check the operation and direction of
the elevator, rudder, ailerons and throttle.
B) Plug in your radio system per the
manufacturer's instructions and turn every-
thing on.
C) Check the elevator first. Pull back on
the elevator stick. The elevator halves should
move up. If it they do not, flip the servo re-
versing switch on your transmitter to change
the direction.
D) Check the rudder. Looking from be-
hind the airplane, move the rudder stick to the
right. The rudder should move to the right. If it
does not, flip the servo reversing switch on
your transmitter to change the direction.
