PERCIVAL MEW GULL

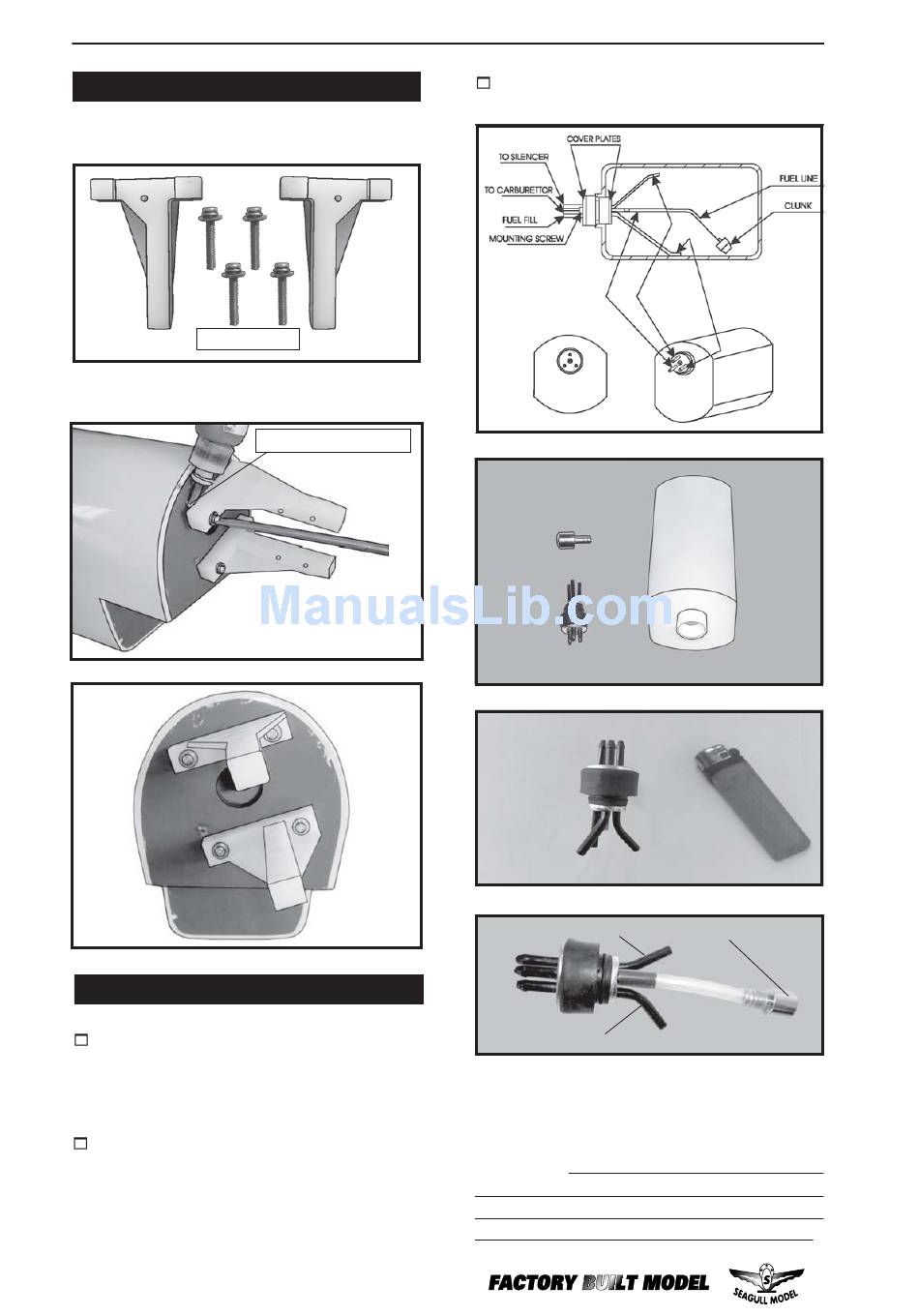

ENGINE MOUNT INSTALLATION.

See pictures below.Make yourself the
template of your engine on paper.
M4 x 30mm.
Mark and drill 4 holes for engine mount.
Insert 4 blind nuts to firewall.
INSTALLING THE STOPPER ASSEMBLY.
1) Using a modeling knife, carefully cut
off the rear portion of one of the 3 nylon tubes
leaving 1/2" protruding from the rear of the
stopper. This will be the fuel pick up tube.
2) Using a modeling knife, cut one length
of silicon fuel line. Connect one end of the line
to the weighted fuel pick up and the other end
to the nylon pick up tube.(The silicon tube is
not included).
6
Thread locker glue
Instruction Manual
3) Carefully bend the second nylon tube
up at a 45º angle. This tube is the vent tube.
Vent tube
Fuel fill tube
Carefully use a lighter or heat gun to
permenently set the angle of the vent tube.
Important: When the stopper assembly is in-
stalled in the tank, the top of the vent tube
should rest just below the top surface of the
tank. It should not touch the top of the tank.
Fuel pick up tube
