3-6 ENGINE CONTROL SYSTEM

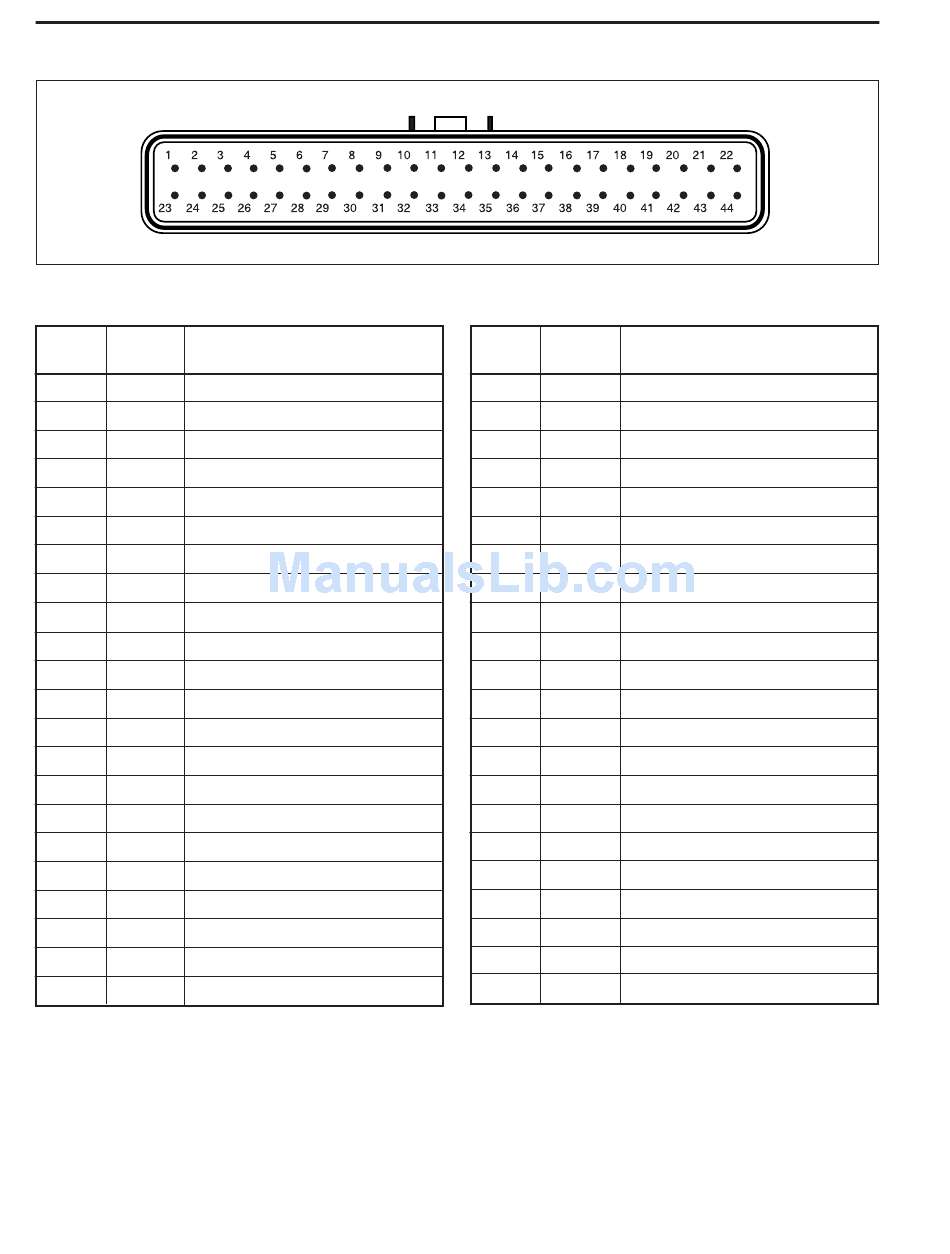

ECM CONNECTOR / TERMINALS LAYOUT

ECM CIRCUITS
TERMI-
WIRE
NAL COLOR
1 —
2 B l / R Emergency stop switch
3 O Buzzer cancel
4 Y / B Tachometer
5 Br Neutral switch
6 —
7 V/ W Ex-manifold temp. sensor
8 —
9 Lg/W Cylinder temp. sensor
10 B Ground for ECM
11 B / W Ground for sensors
12 B l / B Oil lamp
13 P / B Ground for ECM main relay
14 —
15 R / B CKP sensor
16 O/Y PC communication
17 G / Y TEMP lamp
18
B/ R IAC valve solenoid (–)
19 —
20 B Ground for ignition coil
21 —
22 Lg No.4 Fuel injector (–)
CIRCUIT
—
—
—
—
—
—
TERMI-
WIRE
NAL COLOR
23 Bl Oil pressure switch
24 Lg/R CTP switch
25 P REV-LIMIT lamp
26 G / W CHECK ENGINE lamp
27 B l / W Buzzer
28 —
29 W MAP sensor
30 Gr ECM power source
31 L g / B IAT sensor
32 B Ground for ECM
33 O/ G CMP sensor
34 B/G
O feedback / PC communication
2
35 R Power source for MAP sensor
36 Y PC communication
37 B / W Fuel pump (–)
38 R / W No.3 Fuel injector (–)
39 B / Y No.2 Fuel injector (–)
40 O/ B No.1 Fuel injector (–)
41
—
42 B
Ground for ignition coil
43 Bl
No.2 Ignition coil (–)
O No.1 Ignition coil (–)
44
CIRCUIT
—
—
