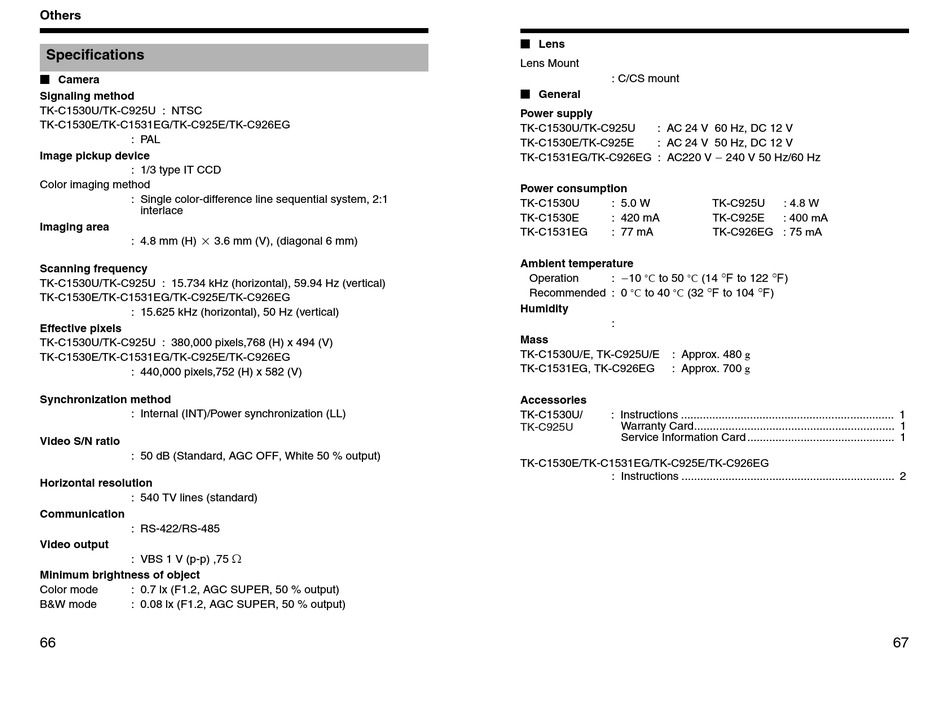

Specifications

Camera
Signaling method
TK-C1530U/TK-C925U : NTSC
TK-C1530E/TK-C1531EG/TK-C925E/TK-C926EG
: PAL
Image pickup device
: 1/3 type IT CCD
Color imaging method
: Single color-difference line sequential system, 2:1
interlace
Imaging area
: 4.8 mm (H)
3.6 mm (V), (diagonal 6 mm)
Scanning frequency
TK-C1530U/TK-C925U : 15.734 kHz (horizontal), 59.94 Hz (vertical)
TK-C1530E/TK-C1531EG/TK-C925E/TK-C926EG
: 15.625 kHz (horizontal), 50 Hz (vertical)
Effective pixels
TK-C1530U/TK-C925U : 380,000 pixels,768 (H) x 494 (V)
TK-C1530E/TK-C1531EG/TK-C925E/TK-C926EG
: 440,000 pixels,752 (H) x 582 (V)
Synchronization method
: Internal (INT)/Power synchronization (LL)
Video S/N ratio
: 50 dB (Standard, AGC OFF, White 50 % output)
Horizontal resolution
: 540 TV lines (standard)
Communication
: RS-422/RS-485
Video output
: VBS 1 V (p-p) ,75 K
Minimum brightness of object
Color mode
: 0.7 lx (F1.2, AGC SUPER, 50 % output)
B&W mode
: 0.08 lx (F1.2, AGC SUPER, 50 % output)
66
Lens
Lens Mount
: C/CS mount
General
Power supply
TK-C1530U/TK-C925U
: AC 24 V 60 Hz, DC 12 V
TK-C1530E/TK-C925E
: AC 24 V 50 Hz, DC 12 V
TK-C1531EG/TK-C926EG : AC220 V - 240 V 50 Hz/60 Hz
Power consumption
TK-C1530U
: 5.0 W
TK-C1530E
: 420 mA
TK-C1531EG
: 77 mA
Ambient temperature
: -10 I to 50 I (14 g to 122 g)
Operation
Recommended : 0 I to 40 I (32 g to 104 g)
Humidity
:
Mass
TK-C1530U/E, TK-C925U/E
: Approx. 480 g
TK-C1531EG, TK-C926EG
: Approx. 700 g
Accessories
TK-C1530U/
: Instructions .................................................................... 1
Warranty Card................................................................ 1
TK-C925U
Service Information Card ............................................... 1
TK-C1530E/TK-C1531EG/TK-C925E/TK-C926EG
: Instructions .................................................................... 2
TK-C925U
: 4.8 W
TK-C925E
: 400 mA
TK-C926EG : 75 mA
67
