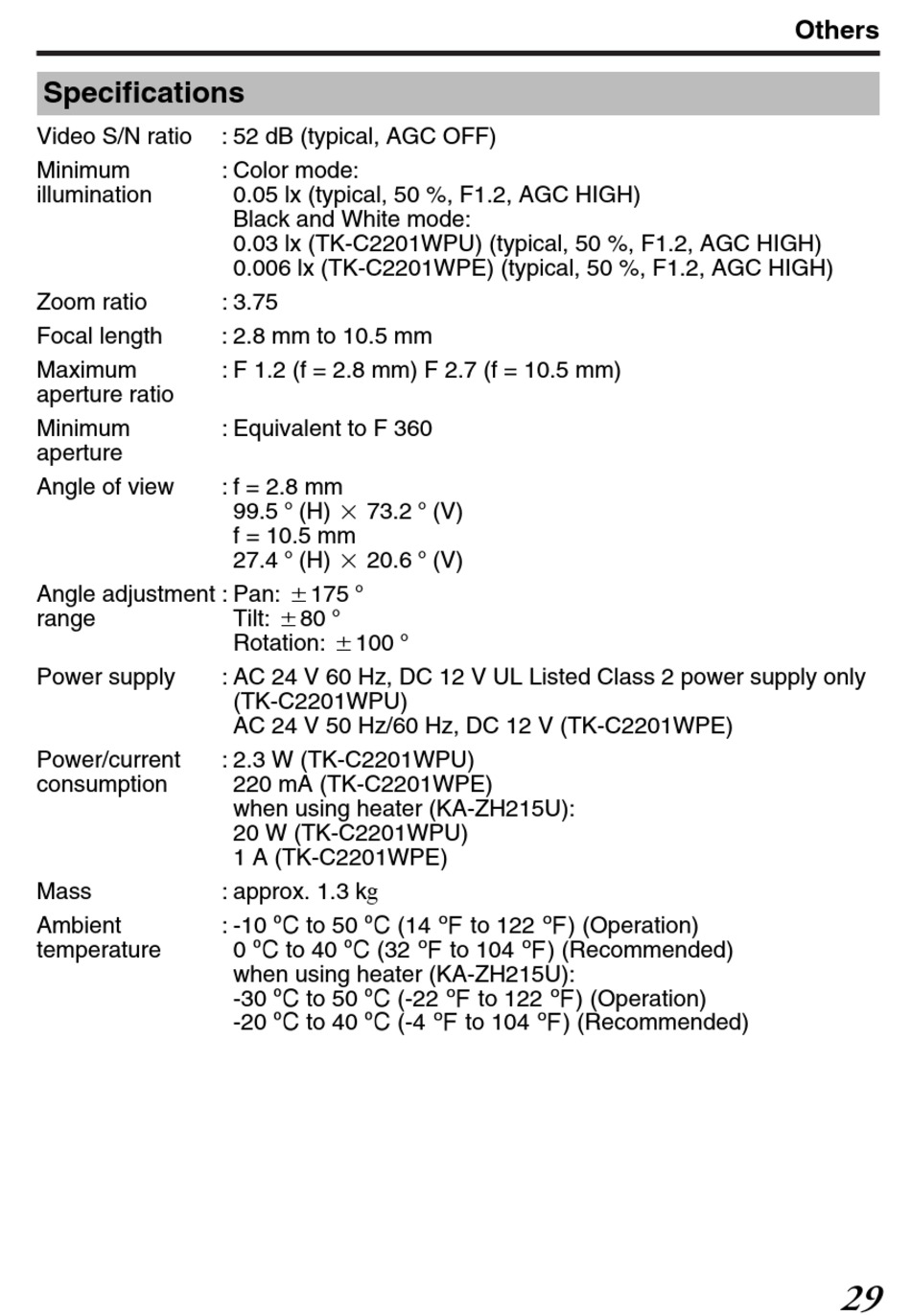

Specifications

Video S/N ratio
Minimum
illumination
Zoom ratio
Focal length
Maximum
aperture ratio
Minimum
aperture
Angle of view
Angle adjustment
range
Power supply
Power/current
consumption
Mass
Ambient
temperature
: 52 dB (typical, AGC OFF)
: Color mode:
0.05 lx (typical, 50 %, F1.2, AGC HIGH)
Black and White mode:
0.03 lx (TK-C2201WPU) (typical, 50 %, F1.2, AGC HIGH)
0.006 lx (TK-C2201WPE) (typical, 50 %, F1.2, AGC HIGH)
: 3.75
: 2.8 mm to 10.5 mm
: F 1.2 (f = 2.8 mm) F 2.7 (f = 10.5 mm)
: Equivalent to F 360
: f = 2.8 mm
99.5  (H)  73.2  (V)
f = 10.5 mm
27.4  (H)  20.6  (V)
: Pan: 175 
Tilt: 80 
Rotation: 100 
: AC 24 V 60 Hz, DC 12 V UL Listed Class 2 power supply only
(TK-C2201WPU)
AC 24 V 50 Hz/60 Hz, DC 12 V (TK-C2201WPE)
: 2.3 W (TK-C2201WPU)
220 mA (TK-C2201WPE)
when using heater (KA-ZH215U):
20 W (TK-C2201WPU)
1 A (TK-C2201WPE)
: approx. 1.3 kg
: -10 f to 50 f (14 g to 122 g) (Operation)
0 f to 40 f (32 g to 104 g) (Recommended)
when using heater (KA-ZH215U):
-30 f to 50 f (-22 g to 122 g) (Operation)
-20 f to 40 f (-4 g to 104 g) (Recommended)

Others
