JVC TK-C1480BE Specifications

1/2" ccd colour video cameras, advanced high-sensitivity super lolux colour cctv cameras with multi-function (24v ac/12v dc) & (220-240v ac)
Hide thumbs

1
2
3
4

Advertisement

Quick Links

Download this manual See also: Instruction Manual
0.3
S
L
L
uper
o
ux
TM
lux
1/2" Super LoLux type CCD
High resolution equivalent to 480 TV lines
Powerful DSP
Minimum Required Illumination
0.3 lux (F1.2, video 25%, AGC 20dB, Normal shutter 1/50 sec.)
Slow shutter to 32/50 sec. for minimum illumination to 0.01 lux
Sophisticated Backlight compensation
= BLC
= Extended Dynamic Range
= High Light Inverter

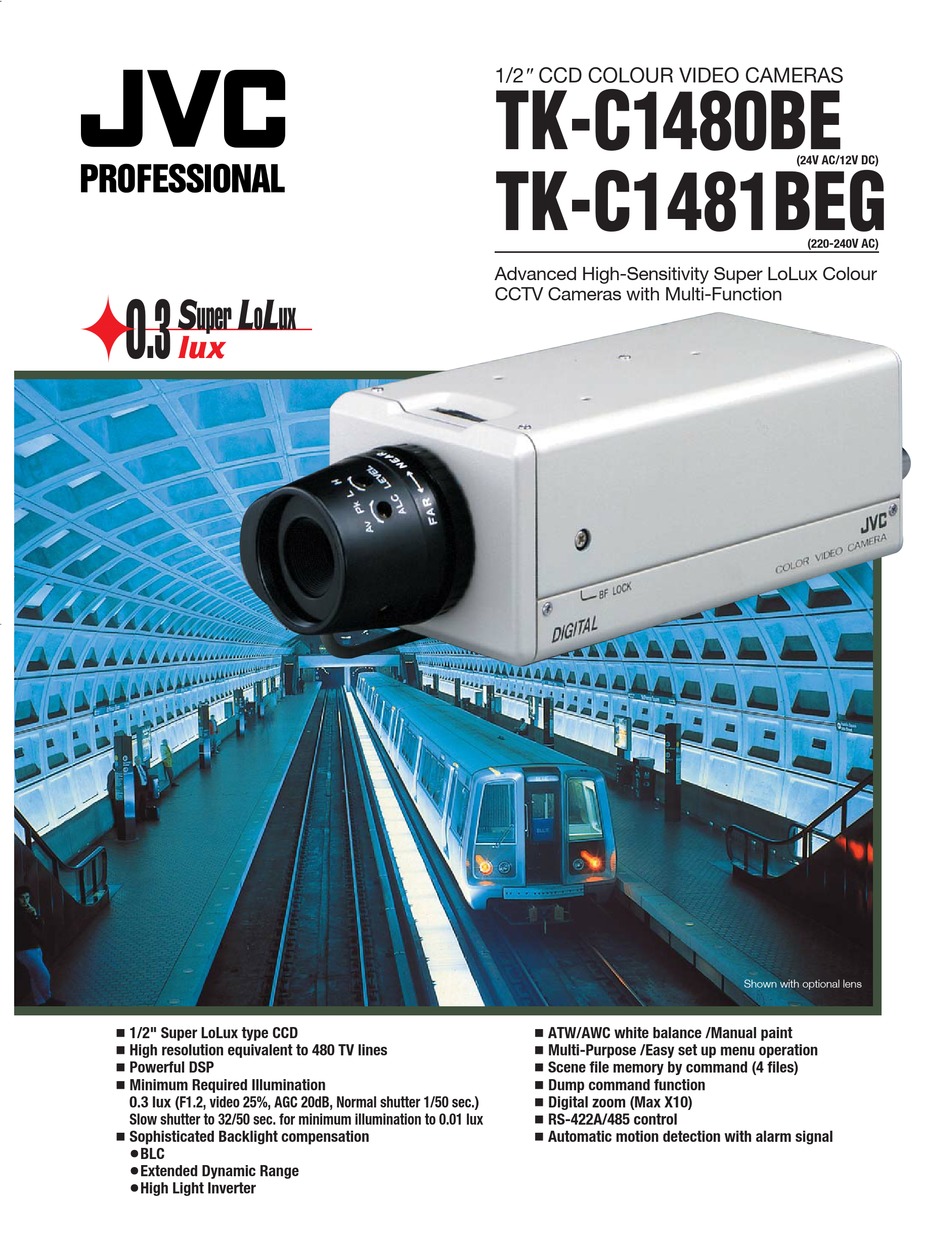

1/2" CCD COLOUR VIDEO CAMERAS
TK-C1480BE
TK-C1481BEG
Advanced High-Sensitivity Super LoLux Colour
CCTV Cameras with Multi-Function
ATW/AWC white balance /Manual paint
Multi-Purpose /Easy set up menu operation
Scene file memory by command (4 files)
Dump command function
Digital zoom (Max X10)
RS-422A/485 control
Automatic motion detection with alarm signal
(24V AC/12V DC)
(220-240V AC)
Shown with optional lens

Advertisement

loading

  Also See for JVC TK-C1480BE

JVC TK-C1480 Instructions Manual
JVC TK-C1480 Instructions Manual 20 pages

  Related Manuals for JVC TK-C1480BE

  Summary of Contents for JVC TK-C1480BE

  • Page 1 1/2" CCD COLOUR VIDEO CAMERAS TK-C1480BE (24V AC/12V DC) TK-C1481BEG (220-240V AC) Advanced High-Sensitivity Super LoLux Colour CCTV Cameras with Multi-Function uper Shown with optional lens 1/2" Super LoLux type CCD ATW/AWC white balance /Manual paint High resolution equivalent to 480 TV lines...
  • Page 2 And, with a signal-to-noise ratio exposure. Both of the images read in are of more than 50dB, the TK-C1480BE and then synthesised to output a single image TK-C1481BEG produce crisp images with...
  • Page 3 Full Genlock Y/C Output Connectors make the INT/EXT (Full genlock)/LINE LOCK opens The TK-C1480BE and TK-C1481BEG are surroundings of up a wide array of shooting options with equipped with connectors for BB or VBS the highlighted connectors for BB or VBS (BNC) sync...

  • Page 4: Specifications

    0.005 lux (F 1.2, 25%, AGC 26dB, Slow shutter 32/50 sec.) Communication RS-422A or RS-485 (switchable) Lens mount C/CS mount Power requirement TK-C1480BE: AC 24 V (50 /60 Hz), DC 12 V TK-C1481BEG: AC 220 240 V (50 /60 Hz) Power consumption TK-C1480BE: 450 mA TK-C1481BEG: 75 mA &...
