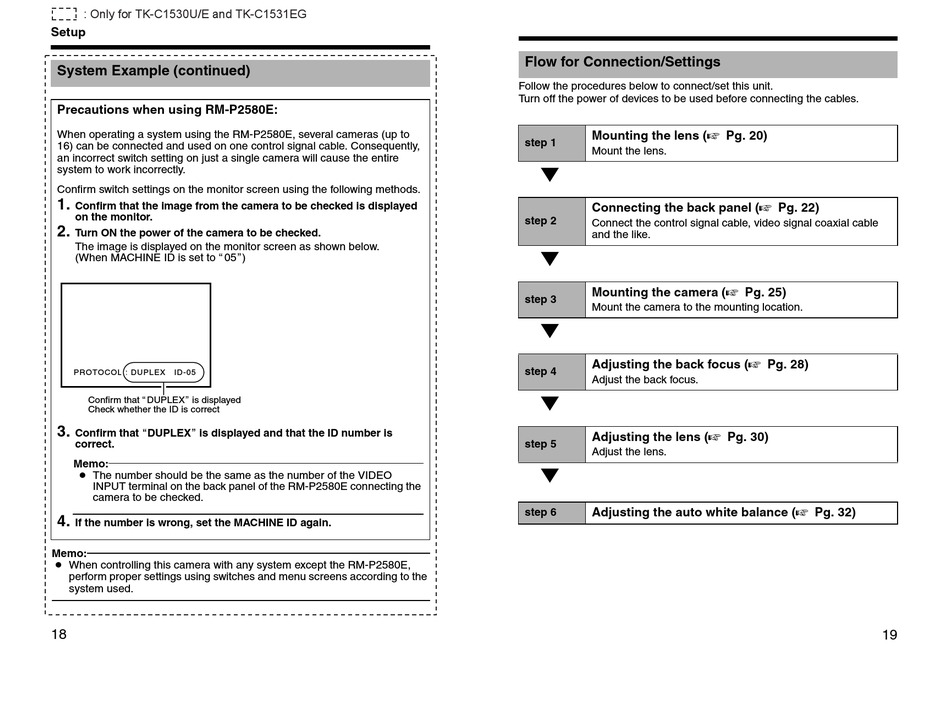

: Only for TK-C1530U/E and TK-C1531EG
Setup
System Example (continued)
Precautions when using RM-P2580E:
When operating a system using the RM-P2580E, several cameras (up to
16) can be connected and used on one control signal cable. Consequently,
an incorrect switch setting on just a single camera will cause the entire
system to work incorrectly.
Confirm switch settings on the monitor screen using the following methods.
1.
Confirm that the image from the camera to be checked is displayed
on the monitor.
2.
Turn ON the power of the camera to be checked.
The image is displayed on the monitor screen as shown below.
(When MACHINE ID is set to 05 )
PROTOCOL : DUPLEX
ID-05
Confirm that DUPLEX is displayed
Check whether the ID is correct
3.
Confirm that DUPLEX is displayed and that the ID number is
correct.
Memo:
● The number should be the same as the number of the VIDEO
INPUT terminal on the back panel of the RM-P2580E connecting the
camera to be checked.
4.
If the number is wrong, set the MACHINE ID again.
Memo:
● When controlling this camera with any system except the RM-P2580E,
perform proper settings using switches and menu screens according to the
system used.
18

Flow for Connection/Settings

Follow the procedures below to connect/set this unit.
Turn off the power of devices to be used before connecting the cables.
Mounting the lens (A Pg. 20)
step 1
Mount the lens.
K
Connecting the back panel (A Pg. 22)
step 2
Connect the control signal cable, video signal coaxial cable
and the like.
K
Mounting the camera (A Pg. 25)
step 3
Mount the camera to the mounting location.
K
Adjusting the back focus (A Pg. 28)
step 4
Adjust the back focus.
K
Adjusting the lens (A Pg. 30)
step 5
Adjust the lens.
K
Adjusting the auto white balance (A Pg. 32)
step 6
19
