: Only for TK-C1530U/E and TK-C1531EG
Detailed setting

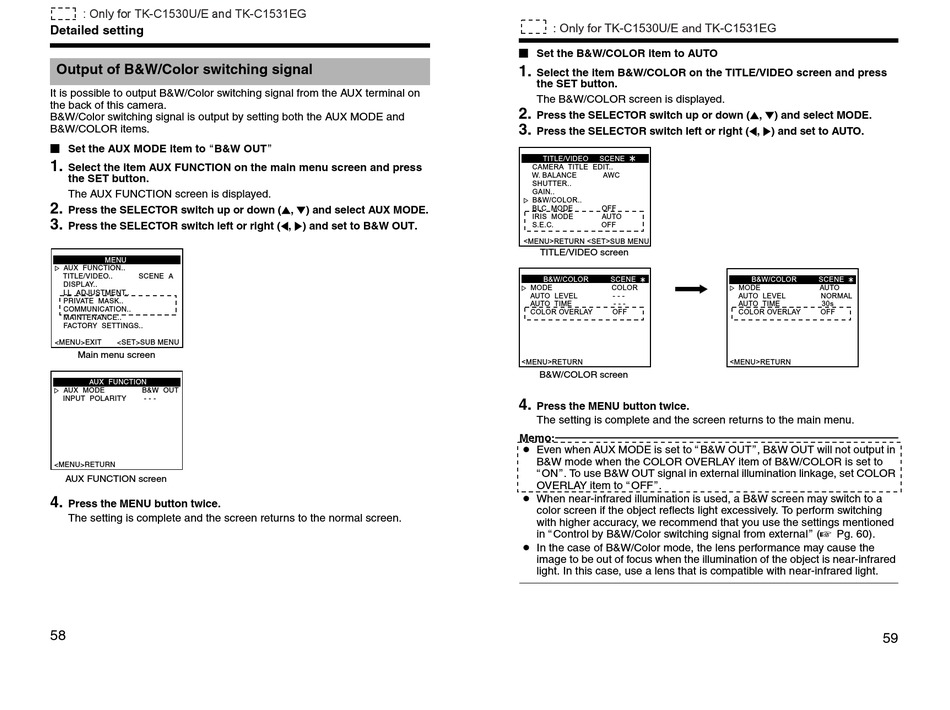

Output of B&W/Color switching signal
It is possible to output B&W/Color switching signal from the AUX terminal on
the back of this camera.
B&W/Color switching signal is output by setting both the AUX MODE and
B&W/COLOR items.
Set the AUX MODE item to B&W OUT
1.
Select the item AUX FUNCTION on the main menu screen and press
the SET button.
The AUX FUNCTION screen is displayed.
2.
Press the SELECTOR switch up or down ( ,
3.
Press the SELECTOR switch left or right ( , ) and set to B&W OUT.
MENU
AUX FUNCTION..
TITLE/VIDEO..
SCENE A
DISPLAY..
LL ADJUSTMENT..
PRIVATE MASK..
COMMUNICATION..
MAINTENANCE..
FACTORY SETTINGS..
<MENU>EXIT
<SET>SUB MENU
Main menu screen
AUX FUNCTION
AUX MODE
B&W OUT
INPUT POLARITY
- - -
<MENU>RETURN
AUX FUNCTION screen
4.
Press the MENU button twice.
The setting is complete and the screen returns to the normal screen.
58
) and select AUX MODE.
: Only for TK-C1530U/E and TK-C1531EG
Set the B&W/COLOR item to AUTO
1.
Select the item B&W/COLOR on the TITLE/VIDEO screen and press
the SET button.
The B&W/COLOR screen is displayed.
2.
Press the SELECTOR switch up or down ( ,
3.
Press the SELECTOR switch left or right ( , ) and set to AUTO.
TITLE/VIDEO
SCENE
CAMERA TITLE EDIT..
W. BALANCE
AWC
SHUTTER..
GAIN..
B&W/COLOR..
BLC MODE
OFF
IRIS MODE
AUTO
S.E.C.
OFF
<MENU>RETURN <SET>SUB MENU
TITLE/VIDEO screen
B&W/COLOR
SCENE
MODE
COLOR
AUTO LEVEL
- - -
AUTO TIME
- - -
COLOR OVERLAY
OFF
<MENU>RETURN
B&W/COLOR screen
4.
Press the MENU button twice.
The setting is complete and the screen returns to the main menu.
Memo:
● Even when AUX MODE is set to B&W OUT , B&W OUT will not output in
B&W mode when the COLOR OVERLAY item of B&W/COLOR is set to
ON . To use B&W OUT signal in external illumination linkage, set COLOR
OVERLAY item to OFF .
● When near-infrared illumination is used, a B&W screen may switch to a
color screen if the object reflects light excessively. To perform switching
with higher accuracy, we recommend that you use the settings mentioned
in Control by B&W/Color switching signal from external (A Pg. 60).
● In the case of B&W/Color mode, the lens performance may cause the
image to be out of focus when the illumination of the object is near-infrared
light. In this case, use a lens that is compatible with near-infrared light.
) and select MODE.
B&W/COLOR
SCENE
MODE
AUTO
AUTO LEVEL
NORMAL
AUTO TIME
30s
COLOR OVERLAY
OFF
<MENU>RETURN
59
