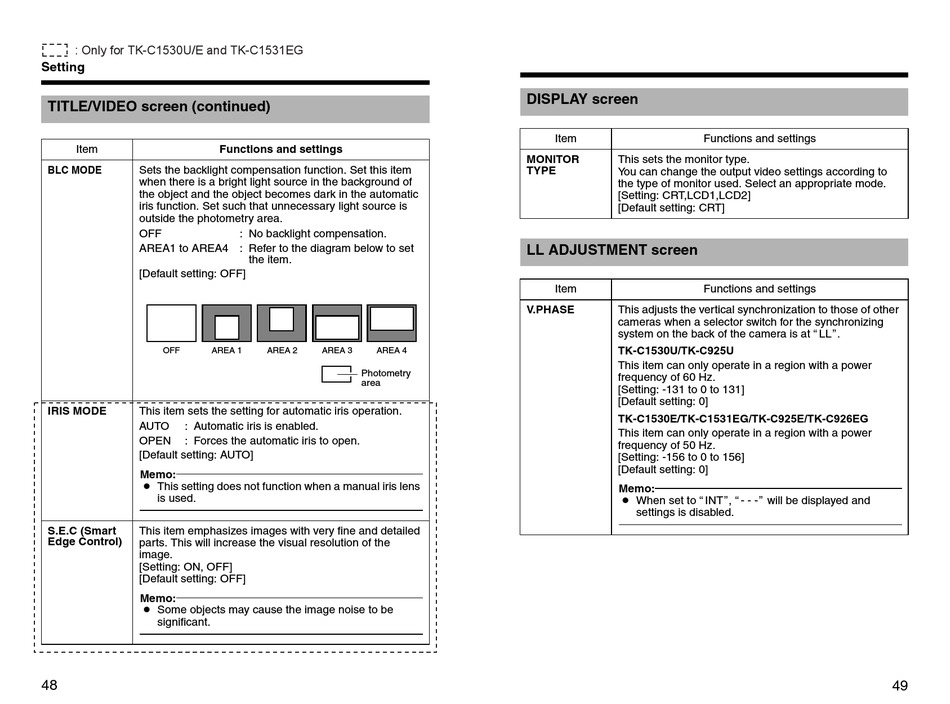

: Only for TK-C1530U/E and TK-C1531EG
Setting
TITLE/VIDEO screen (continued)
Item
Functions and settings
BLC MODE
Sets the backlight compensation function. Set this item
when there is a bright light source in the background of
the object and the object becomes dark in the automatic
iris function. Set such that unnecessary light source is
outside the photometry area.
OFF
AREA1 to AREA4 : Refer to the diagram below to set
[Default setting: OFF]
IRIS MODE
This item sets the setting for automatic iris operation.
AUTO
: Automatic iris is enabled.
OPEN
: Forces the automatic iris to open.
[Default setting: AUTO]
Memo:
● This setting does not function when a manual iris lens
is used.
S.E.C (Smart
This item emphasizes images with very fine and detailed
Edge Control)
parts. This will increase the visual resolution of the
image.
[Setting: ON, OFF]
[Default setting: OFF]
Memo:
● Some objects may cause the image noise to be
significant.
48
: No backlight compensation.
the item.
Photometry
area

DISPLAY screen

Item
Functions and settings
MONITOR
This sets the monitor type.
TYPE
You can change the output video settings according to
the type of monitor used. Select an appropriate mode.
[Setting: CRT,LCD1,LCD2]
[Default setting: CRT]

LL ADJUSTMENT screen

Item
Functions and settings
V.PHASE
This adjusts the vertical synchronization to those of other
cameras when a selector switch for the synchronizing
system on the back of the camera is at LL .
TK-C1530U/TK-C925U
This item can only operate in a region with a power
frequency of 60 Hz.
[Setting: -131 to 0 to 131]
[Default setting: 0]
TK-C1530E/TK-C1531EG/TK-C925E/TK-C926EG
This item can only operate in a region with a power
frequency of 50 Hz.
[Setting: -156 to 0 to 156]
[Default setting: 0]
Memo:
● When set to INT , - - - will be displayed and
settings is disabled.
49
