Setup

Adjusting the back focus

This camera is adjusted to a optimum wide range for CS-mount lens before
shipment but readjustment is required when using zoom lens or C-mount lens
or when the lens focus ring is out of focus. Use the following methods to adjust
the back focus.

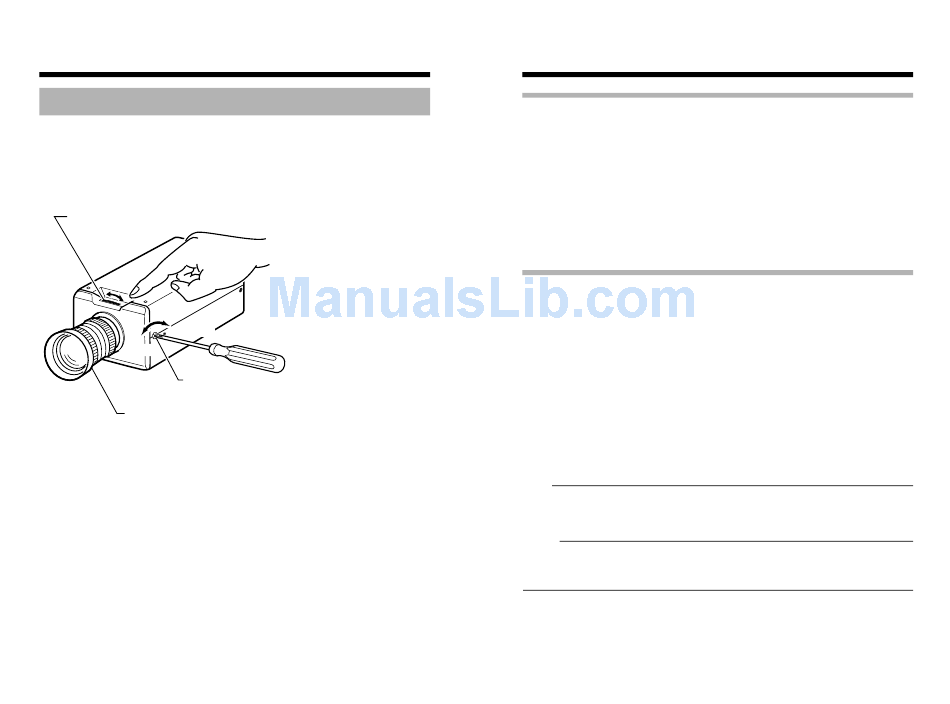

Back focus adjustment ring
Tighten
Loosen
Back focus fastening screw (M2.6)
Lens focus ring
28
With a fixed-focus lens
If the focus cannot be adjusted correctly with the lens focus ring, adjust the
back focus as follows.
1.
Loosen the back focus fastening screw by turning it anti-clockwise
with a + screwdriver.
2.
Shooting an object or a picture with fine patterns that is away from the
object
3.
Turn the lens focus ring to ∞.
4.
Turn the back focus adjustment ring to focus at the best point.
5.
Tighten the back focus fastening screw by turning it clockwise.
With a zoom lens
If the image is out of focus when zooming (telephoto - wide angle), adjust the
camera as follows.
1.
Loosen the back focus fastening screw by turning it anti-clockwise
with a + screwdriver.
2.
Shooting an object or a picture with fine patterns that is away from the
object
3.
Zoom to the maximum telephoto position and turn the lens focus ring
to adjust the focus.
4.
Zoom to the maximum wide angle position and turn the back focus
adjustment ring to adjust the focus.
5.
Repeat steps 3 and 4 two or three times.
6.
Tighten the back focus fastening screw by turning it clockwise.
Note:
● In the case of B&W/Color mode, the lens performance may cause the
image to be out of focus when the illumination of the object is near-infrared
light. In such a case, use a lens that is compatible with near-infrared light.
Memo:
● Focus setting may differ on the color and on the black and white screen.
Make adjustments so that the focus will come to the optimum on both
screens.
29
