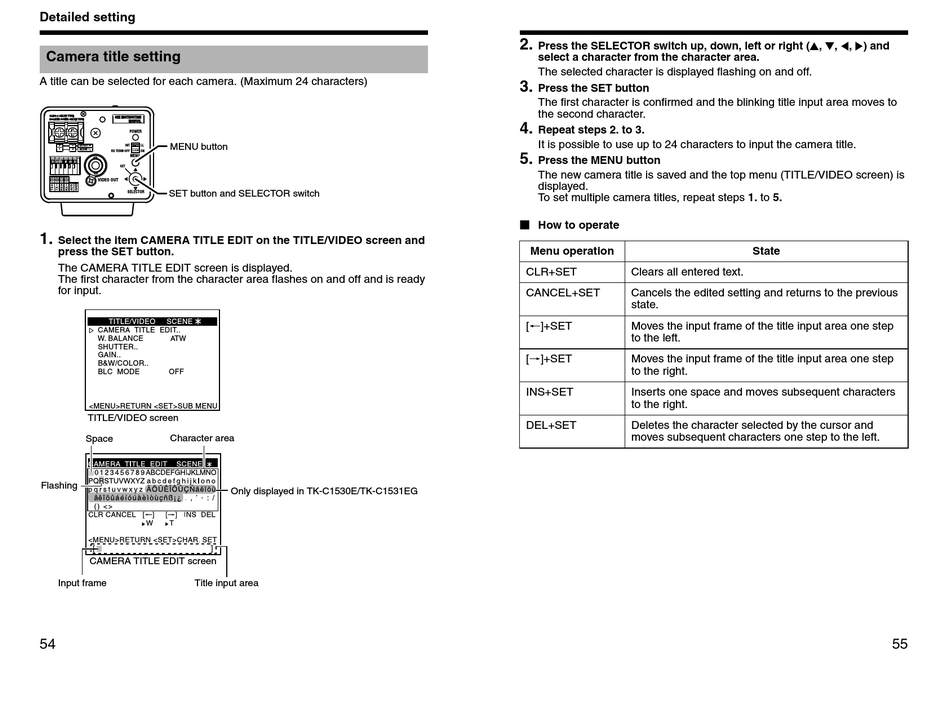

Detailed setting

Camera title setting

A title can be selected for each camera. (Maximum 24 characters)
CLASS 2 ONLY(U TYPE)
SEE INSTRUCTION
ISOLATED POWER ONLY(E TYPE)
MANUAL
POWER
+
MENU button
-
DC12V
INT
LL
AC24V
RX TERM-OFF
ON
MENU
SET
VIDEO OUT
SELECTOR
SET button and SELECTOR switch
1.
Select the item CAMERA TITLE EDIT on the TITLE/VIDEO screen and
press the SET button.
The CAMERA TITLE EDIT screen is displayed.
The first character from the character area flashes on and off and is ready
for input.
TITLE/VIDEO
SCENE
CAMERA TITLE EDIT..
W. BALANCE
ATW
SHUTTER..
GAIN..
B&W/COLOR..
BLC MODE
OFF
<MENU>RETURN <SET>SUB MENU
TITLE/VIDEO screen
Character area
Space
Flashing
CAMERA TITLE EDIT screen
Input frame
Title input area
54
Only displayed in TK-C1530E/TK-C1531EG
2.
Press the SELECTOR switch up, down, left or right (J, K, H, I) and
select a character from the character area.
The selected character is displayed flashing on and off.
3.
Press the SET button
The first character is confirmed and the blinking title input area moves to
the second character.
4.
Repeat steps 2. to 3.
It is possible to use up to 24 characters to input the camera title.
5.
Press the MENU button
The new camera title is saved and the top menu (TITLE/VIDEO screen) is
displayed.
To set multiple camera titles, repeat steps 1. to 5.
How to operate
Menu operation
CLR+SET
Clears all entered text.
CANCEL+SET
Cancels the edited setting and returns to the previous
state.
[O]+SET
Moves the input frame of the title input area one step
to the left.
[N]+SET
Moves the input frame of the title input area one step
to the right.
INS+SET
Inserts one space and moves subsequent characters
to the right.
DEL+SET
Deletes the character selected by the cursor and
moves subsequent characters one step to the left.
State
55
