: Only for TK-C1530U/E and TK-C1531EG
Setting

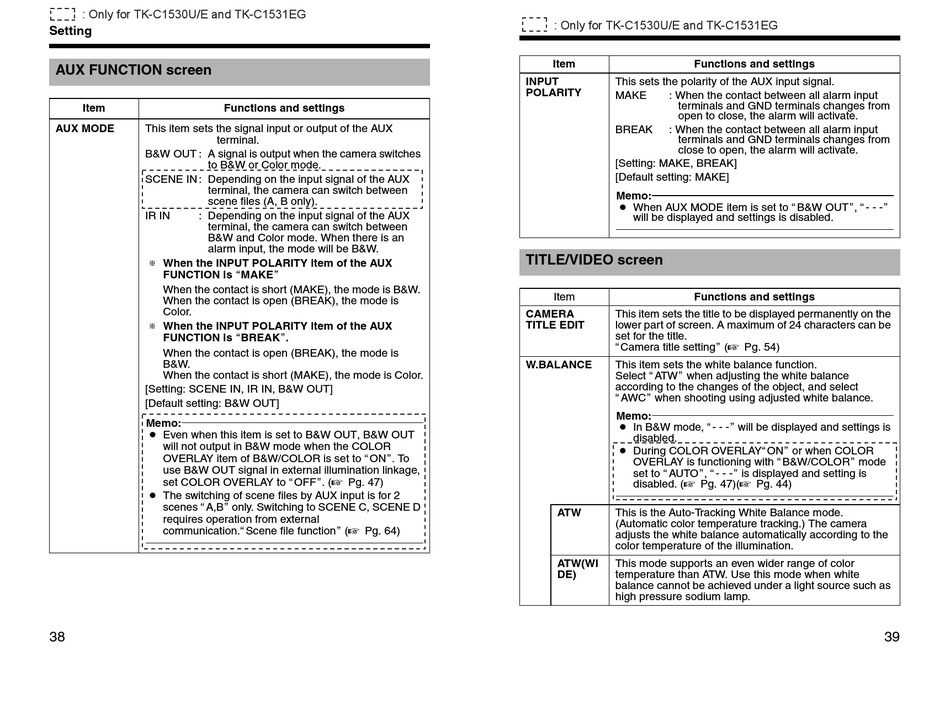

AUX FUNCTION screen

Item
Functions and settings
AUX MODE
This item sets the signal input or output of the AUX
terminal.
B&W OUT : A signal is output when the camera switches
to B&W or Color mode.
SCENE IN : Depending on the input signal of the AUX
terminal, the camera can switch between
scene files (A, B only).
IR IN
: Depending on the input signal of the AUX
terminal, the camera can switch between
B&W and Color mode. When there is an
alarm input, the mode will be B&W.
T When the INPUT POLARITY item of the AUX
FUNCTION is MAKE
When the contact is short (MAKE), the mode is B&W.
When the contact is open (BREAK), the mode is
Color.
T When the INPUT POLARITY item of the AUX
FUNCTION is BREAK .
When the contact is open (BREAK), the mode is
B&W.
When the contact is short (MAKE), the mode is Color.
[Setting: SCENE IN, IR IN, B&W OUT]
[Default setting: B&W OUT]
Memo:
● Even when this item is set to B&W OUT, B&W OUT
will not output in B&W mode when the COLOR
OVERLAY item of B&W/COLOR is set to ON . To
use B&W OUT signal in external illumination linkage,
set COLOR OVERLAY to OFF . (A Pg. 47)
● The switching of scene files by AUX input is for 2
scenes A,B only. Switching to SCENE C, SCENE D
requires operation from external
communication. Scene file function (A Pg. 64)
38
: Only for TK-C1530U/E and TK-C1531EG
Item
Functions and settings
INPUT
This sets the polarity of the AUX input signal.
POLARITY
MAKE
: When the contact between all alarm input
terminals and GND terminals changes from
open to close, the alarm will activate.
BREAK
: When the contact between all alarm input
terminals and GND terminals changes from
close to open, the alarm will activate.
[Setting: MAKE, BREAK]
[Default setting: MAKE]
Memo:
● When AUX MODE item is set to B&W OUT , - - -
will be displayed and settings is disabled.

TITLE/VIDEO screen

Item
Functions and settings
CAMERA
This item sets the title to be displayed permanently on the
TITLE EDIT
lower part of screen. A maximum of 24 characters can be
set for the title.
Camera title setting (A Pg. 54)
W.BALANCE
This item sets the white balance function.
Select ATW when adjusting the white balance
according to the changes of the object, and select
AWC when shooting using adjusted white balance.
Memo:
● In B&W mode, - - - will be displayed and settings is
disabled.
● During COLOR OVERLAY ON or when COLOR
OVERLAY is functioning with B&W/COLOR mode
set to AUTO , - - - is displayed and setting is
disabled. (A Pg. 47)(A Pg. 44)
ATW
This is the Auto-Tracking White Balance mode.
(Automatic color temperature tracking.) The camera
adjusts the white balance automatically according to the
color temperature of the illumination.
ATW(WI
This mode supports an even wider range of color
DE)
temperature than ATW. Use this mode when white
balance cannot be achieved under a light source such as
high pressure sodium lamp.
39
