Detailed setting

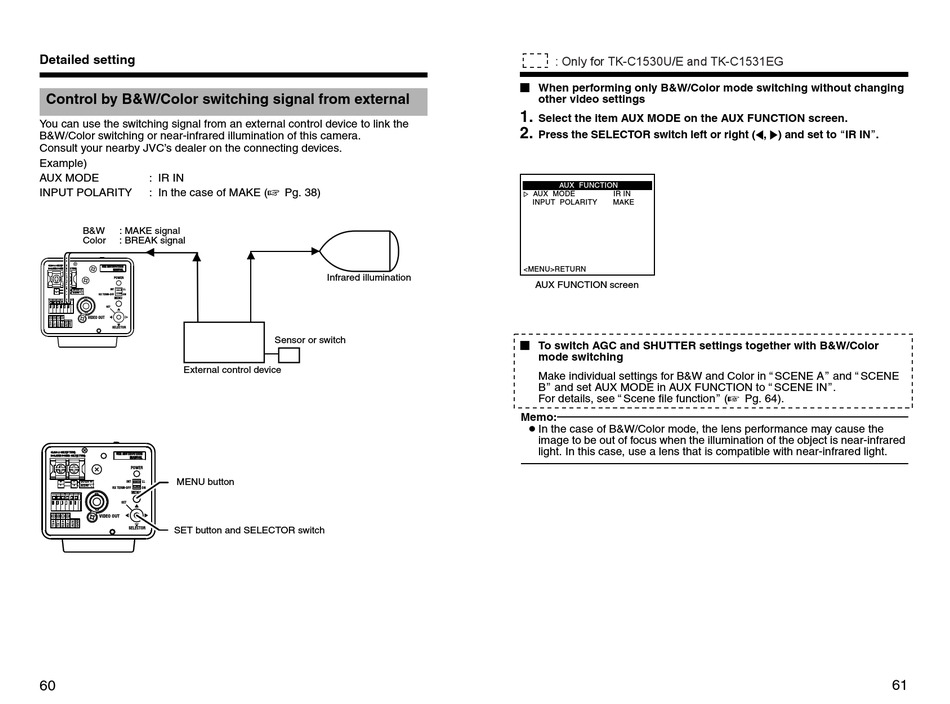

Control by B&W/Color switching signal from external
You can use the switching signal from an external control device to link the
B&W/Color switching or near-infrared illumination of this camera.
Consult your nearby JVC's dealer on the connecting devices.
Example)
AUX MODE
: IR IN
INPUT POLARITY
: In the case of MAKE (A Pg. 38)
B&W
: MAKE signal
Color
: BREAK signal
CLASS 2 ONLY(U TYPE)
SEE INSTRUCTION
ISOLATED POWER ONLY(E TYPE)
MANUAL
POWER
+
DC12V
INT
LL
-
AC24V
1
2
RX TERM-OFF
ON
MENU
SET
VIDEO OUT
SELECTOR
External control device
CLASS 2 ONLY(U TYPE)
SEE INSTRUCTION
ISOLATED POWER ONLY(E TYPE)
MANUAL
POWER
MENU button
+
INT
LL
-
DC12V
AC24V
RX TERM-OFF
ON
MENU
SET
VIDEO OUT
SELECTOR
SET button and SELECTOR switch
60
Infrared illumination
Sensor or switch
: Only for TK-C1530U/E and TK-C1531EG
When performing only B&W/Color mode switching without changing
other video settings
1.
Select the item AUX MODE on the AUX FUNCTION screen.
2.
Press the SELECTOR switch left or right ( , ) and set to IR IN .
AUX FUNCTION screen
To switch AGC and SHUTTER settings together with B&W/Color
mode switching
Make individual settings for B&W and Color in SCENE A and SCENE
B and set AUX MODE in AUX FUNCTION to SCENE IN .
For details, see Scene file function (A Pg. 64).
Memo:
● In the case of B&W/Color mode, the lens performance may cause the
image to be out of focus when the illumination of the object is near-infrared
light. In this case, use a lens that is compatible with near-infrared light.
61
