DOOR PANEL MOUNTING FRAMES

Both surface and flush mounting frames are available. The size of the frame will depend

on the number of modules that make up the door panel. The last digit of the frame code

indicates the number of modules it will take. Frames are available in gun metal gray finish,

chrome finish (Suffix \C to the frame code) or gold finish (Suffix \G to the frame code).

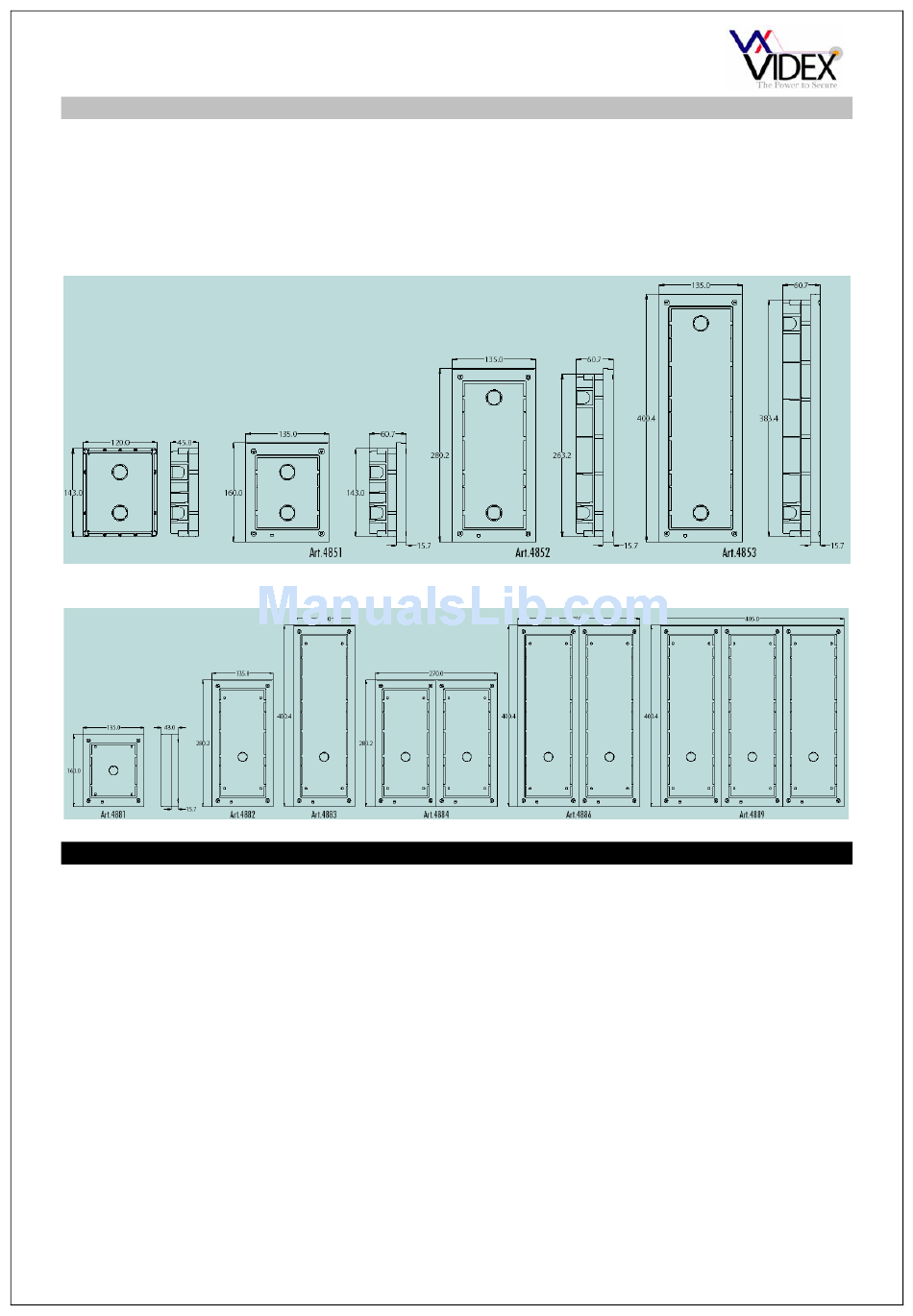

Flush frames:

Surface frames:

The GSM intercom panel is designed to work with power supplies in the range or 12-

14Vdc. The power supply should be capable of supplying a constant current of no less

than 1 amp (If the system is to work with failsafe lock releases or magnetic locks we would

recommend a minimum of 2 amps). The following Videx power supplies can be used:-

AMR2-12

Art.521B

SP29

SP28

PAGE 7 of 32

12-14Vdc 2A switched mode PSU

13.5Vdc 1A DIN box PSU

13.8Vdc 2A boxed PSU with battery backup facility

13.8Vdc 3A boxed PSU with battery backup facility

DIGITAL GSM INTERCOM TECHNICAL MANUAL

VER2.1.1
