Videx DIGITAL GSM DOOR INTERCOM SYSTEM Technical Manual page 17

Speech board Mode:
Speaker volume:
Speaker volume:
Time bands:
Language:
Display Line 1:
Switched display:

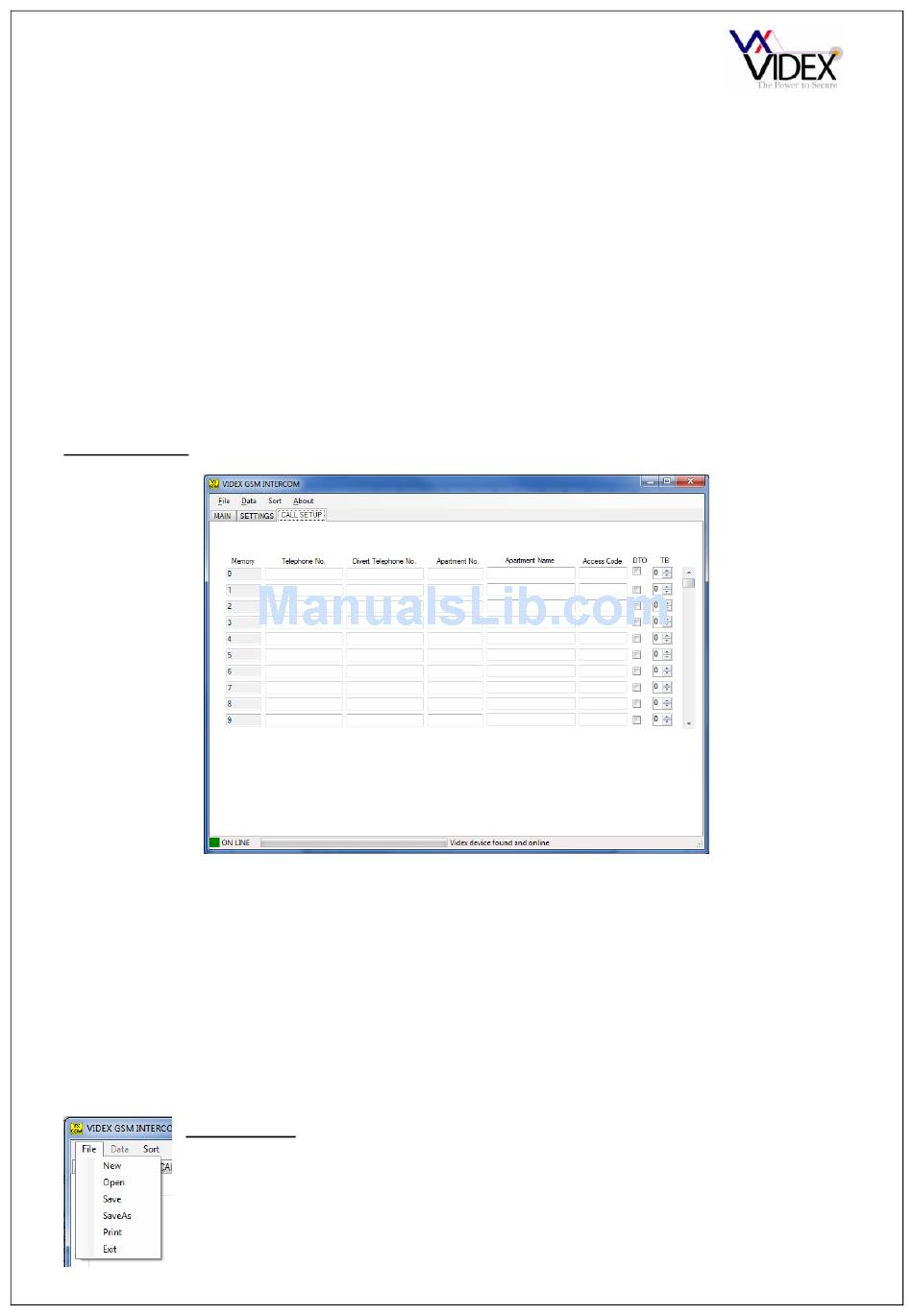

CALL SETUP:
From the call setup page it is possible to assign up to 2 telephone numbers to each of the 1000 available
locations. The divert telephone number will be used if the call is busy or not answered and will divert to this
number after the divert time has elapsed. If no divert number is stored, the first number will continue to ring
until the call times out.
Apartment No. can be up to 6 digits and is the number entered by a caller to initiate a call.
Apartment Name is only used on panels with the scroll facility. It is used to store names which can be
scrolled through on the panel. The names can be up to 16 characters long.
Access Code is a unique to each user code that can be used to release the door/gate via the door panel
keypad. The code can be up to 6 digits.
DTO when set means that the telephone number and the divert number for that user can dial into the panel
and release the door/gate.
TB Select a time band for the user. This user will only be able to receive calls within this timeband.
FILE MENU:
From the file menu it is possible to create a new data file, open an existing
data file, save the current data file and print. These options are available
online or offline allowing the data file to be created on or off site for
convenience.
PAGE 17 of 32
The voice annunciation can be set to speak the number being called as a whole
number (i.e. 100 would be spoken as 'One hundred') or can be set to speak the
numbers individually (i.e. 100 would be spoken as 'One' 'Zero' 'Zero'). Alternatively
the speech board can be disabled from the drop down menu.
The speaker volume can be between 0 & 9. The higher the number the higher the
volume.
The microphone volume can be between 0 & 9. The higher the number the higher
the volume.
There are 10 time bands. The first is fixed to all day and cannot be changed , the
other 9 can be set to any times (Ensure the ON time is lower than the OFF time).
The language of the messages show on the LCD display
The standby message on the LCD display
A second message which switches with the one above every 8 seconds.
DIGITAL GSM INTERCOM TECHNICAL MANUAL VER2.1.1
