CABLE SIZE GUIDE

Connections for power supply output to intercom panel and lock release connections.
0.5mm²
Connections
The power supply should be located as close to the intercom panel as possible for best performance.
Maximum acceptable resistance for above cables = 3Ω

INSTALLATION

- Check that all components are free from damage before installing (Do not proceed with
installation in the event of damage).
- Keep all packaging away from children.
- Do not obstruct the ventilation openings or slots on any of the devices.
- All connections to mains voltages must be made to the current national standards (IEE
Wiring regulations)
- Install an appropriate fused spur or isolation switch to isolate the mains.
- Isolate the mains before carrying out any maintenance work on the system.
- Avoid water ingress into the rear of the module, always seal the module frame after
installation using a suitable silicon based sealant.
- All intercom and access control cables must be routed separately from the mains.

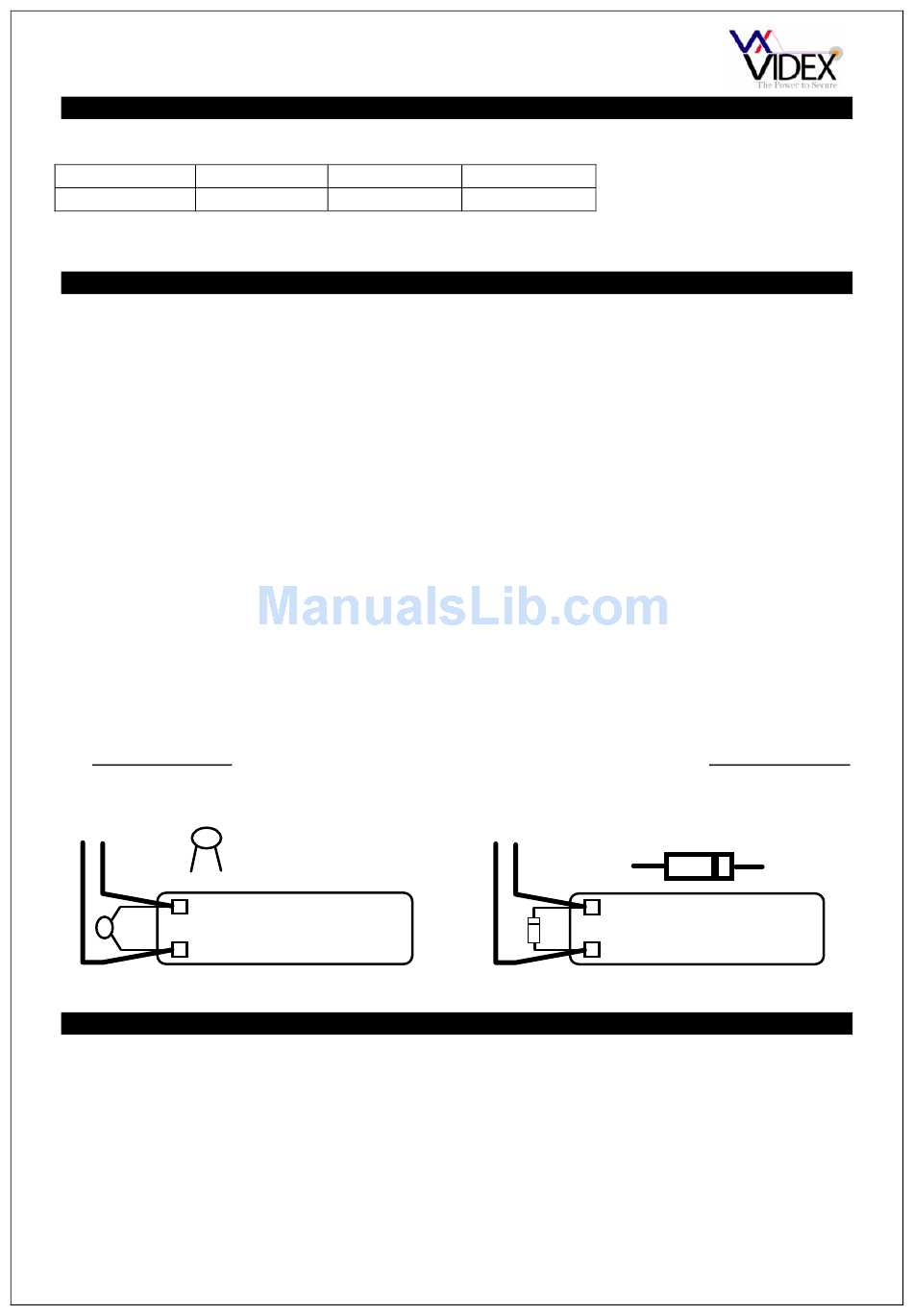

Lock release back EMF protection : A capacitor must be fitted across the terminals on
an AC lock release and a diode must be fitted across the terminals on a DC lock release
as shown in the diagrams below to suppress back EMF voltages.
~ ~

PANEL CARE

The door panel's facia is either mirror finish stainless steel, brushed stainless steel or matt
finish aluminium. It is important that the facia is cleaned on regular occasions to prevent
dirt build up and tarnishing of the metal. A general household metal polish can be used but
care should be taken to follow the grain of the metal when polishing and also avoid any
polish build up around the call buttons which may prevent the buttons from operating
correctly.
