Videx 4000 Series Installation Instructions Manual

4000 Series
Art. 4312

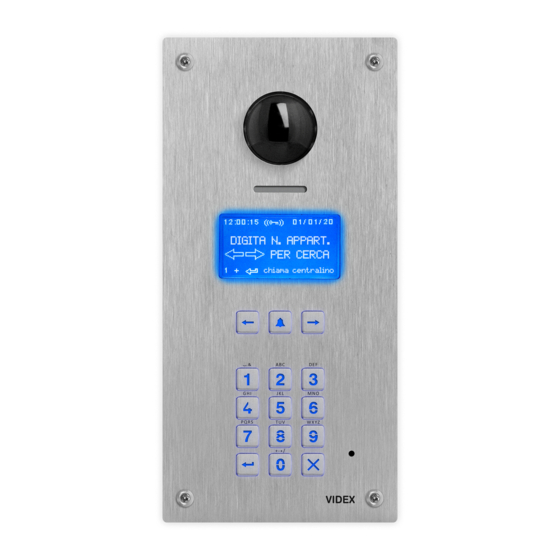

Audio/video digital front panel
Art. 4312V

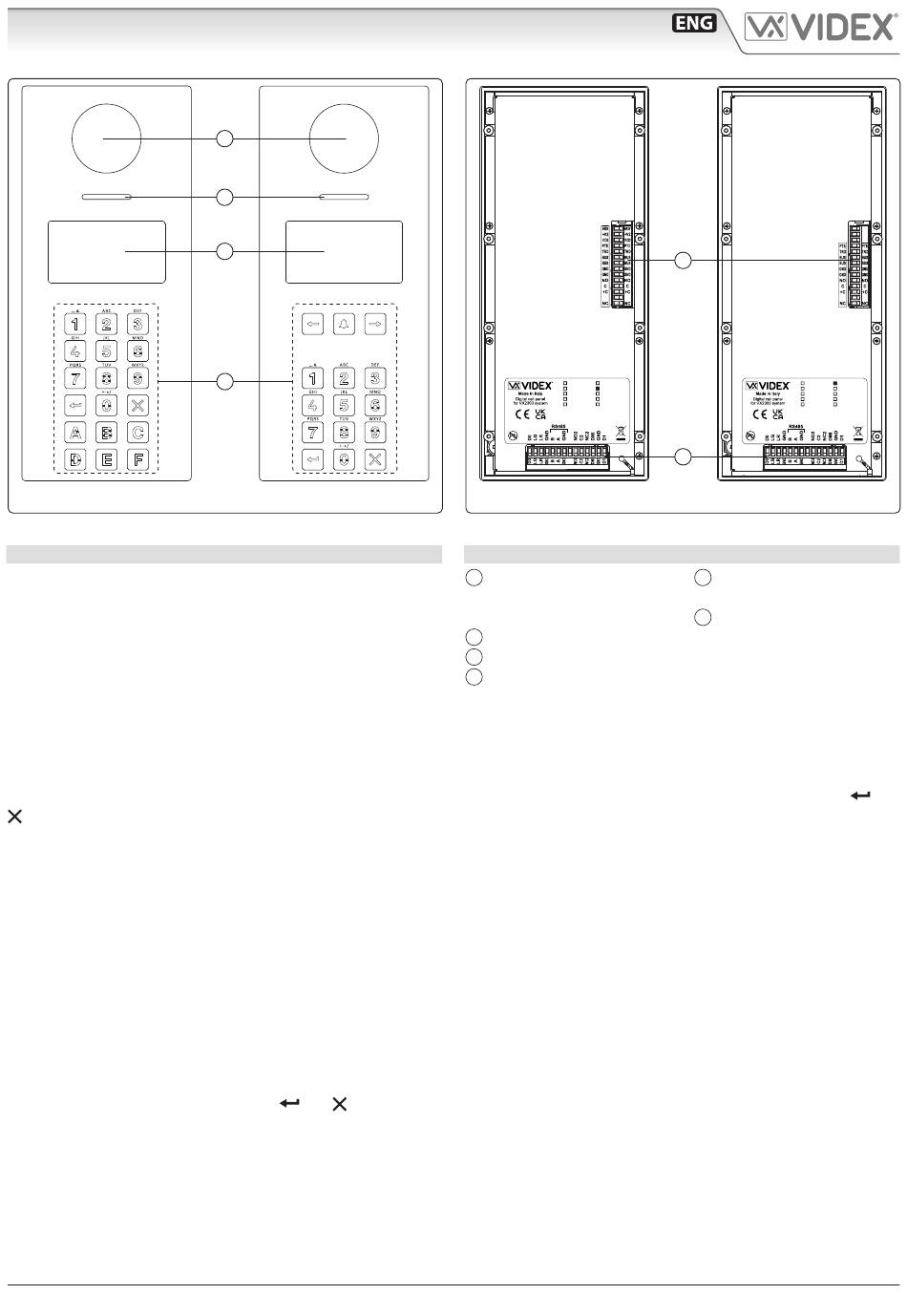

Fig. 1 Front
DESCRIPTION
ART. 4312V, ART. 4312V/F, ART. 4312
4000 Series Vandal resistant (front plate in brushed stainless with
2mm thickness) digital call panel for Videx VX 2300 digital sys-
tems (2 wire BUS). This panel is compatible with the 4000 Series
modular system and has the size of two 4000 Series modules.
Complementing all digital door panels manufactured by Videx
is the ability for all users to have their own unique access code
(each apartment can have more than one access code). The access code can have up to six digits and is blind to onlookers. Also,inte-
grated into the panel is a proximity reader enabling a number of proximity fobs to be stored and used individually or in combination
with the access code to enter the building. In addition to the speaker unit functions, the panel includes a 128 x 64 pixel graphical
LCD display with blue back light (to provide text and graphical messages in multiple languages guiding a visitor through the panel
operation) plus a keypad with 18 blue back lit buttons 6 of which are alpha buttons (A..F), 10 are numeric buttons (0..9) plus
buttons. The tenants can be called by dialling the relevant apartment code. The device use NFC/MIFARE as proximity key reader
(ISO IEC 14443A).
To complement the visual messages provided from the display, the panel has the voice annunciation facility to supply audio messag-
es concerning the system operation. The built-in camera (excluding Art. 4312 and Art. 4312R) is a colour CMOS wide angle camera
with white light illumination LED's (the wide angle camera provides a viewing angle of 170 degrees). Interfaces include a Wiegand
output (for systems based on this interface) plus two serial interfaces (USB and RS-485) both allow for programming and event
logging. The programming menu and the setup menu are protected by two passwords with different login levels (the engineer
password that grants full access and the system administrator password that is limited to some specific settings) while if you oper-
ate from a PC an "Engineer's Password" is requested to program the unit. A "Trade Code" function is available (for periodic visitors)
enabled by the specific input or by programmable time band and "Direct Call Mode" for small installations (up to 10 apartments).
The memory capacity allows to store up to 998 users data, up to 2800 access codes, up to 2800 proximity keys and up to 4000
events. The front panel finish is brushed stainless steel while the frame finishes are the standard offered in the 4000 Series.
ART. 4312RV, ART. 4312RV/F, ART. 4312R
As Art. 4312V but using a keypad with 15 blue back lit buttons 3 of which are navigation buttons used for the repertory name fa-
cility, 10 are numeric buttons (0..9) plus
by searching the relevant name using the repertory name function.
Art. 4312 - Installation instructions
A
B
C
D
Art. 4312RV
and buttons. The tenants can be called by dialling the relevant apartment number or
4312 4312R
4312V 4312RV
4312V/F 4312RV/F
4312V/NFP 4312RV/NFP
VR4312V VR4312RV
Art. 4312RV
Fig. 2 Back
LEGEND
Wide angle camera and
A
illumination LEDs
(only for video versions)
Loudspeaker
B
Display
C
Backlit keypad
D
- 1 -
E
4312 4312R
4312V 4312RV
4312V/F 4312RV/F
4312V/NFP 4312RV/NFP
VR4312V VR4312RV
F
Art. 4312R
Top mobile connection
E
terminals
Lower mobile connection
F
terminals
66252090 - V1.2 - 15/03/24
and
