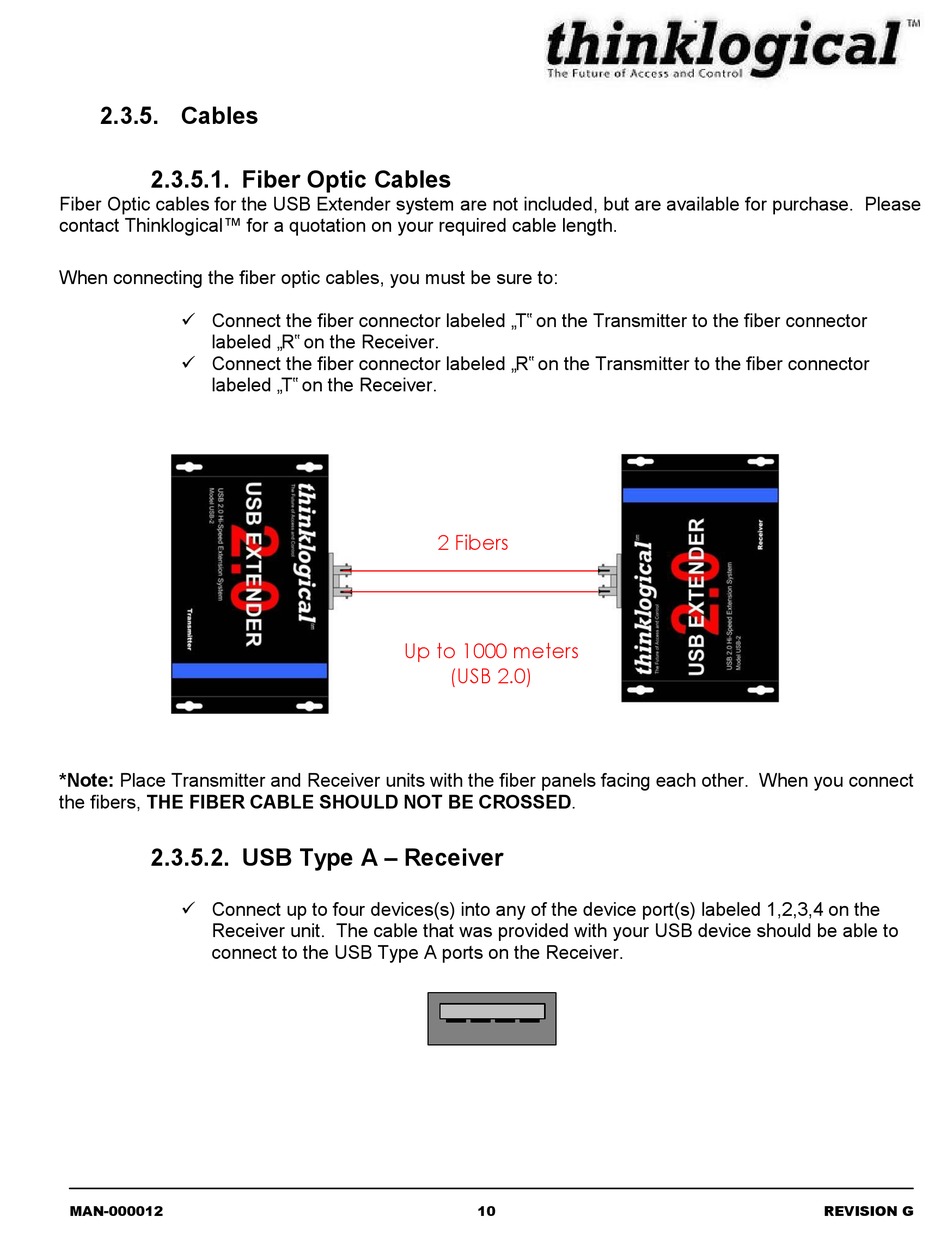

2.3.5. Cables

2.3.5.1. Fiber Optic Cables
Fiber Optic cables for the USB Extender system are not included, but are available for purchase. Please
contact Thinklogical™ for a quotation on your required cable length.
When connecting the fiber optic cables, you must be sure to:
 Connect the fiber connector labeled „T‟ on the Transmitter to the fiber connector
labeled „R‟ on the Receiver.
 Connect the fiber connector labeled „R‟ on the Transmitter to the fiber connector
labeled „T‟ on the Receiver.
*Note: Place Transmitter and Receiver units with the fiber panels facing each other. When you connect
the fibers, THE FIBER CABLE SHOULD NOT BE CROSSED.
2.3.5.2. USB Type A – Receiver
 Connect up to four devices(s) into any of the device port(s) labeled 1,2,3,4 on the
Receiver unit. The cable that was provided with your USB device should be able to
connect to the USB Type A ports on the Receiver.
MAN-000012
2 Fibers
Up to 1000 meters
(USB 2.0)
