Supplied Cables

All TLX10 Models will be supplied with an HDMI 1.4 (supports 4K @ 30Hz) cable and all TLX20 Models
will be supplied with a DisplayPort 1.2 (supports 4K @ 60Hz) cable. Transmitters will also be supplied
with Audio and USB A-B cables (2 each). Transmitters and Receivers will both be supplied with a CAT5
cable and RJ45 to DB9 Adapters as described below.
MODEL
TLX-TMM-U00D10
ADP-000025-R
CBL000001-002MR
CBL000015-006FR
CBL000016-006FR
CBL000103-002MR
TLX-RMM-U00D10
ADP-000019-R
CBL000001-002MR
TLX-TMM-U00D20
ADP-000025-R
CBL000001-002MR
CBL000015-006FR
CBL000016-006FR
CBL000104-002MR
TLX-RMM-U00D20
ADP-000019-R
CBL000001-002MR
Supplied with all TLX10 Transmitters:
Supplied with all TLX20 Transmitters:

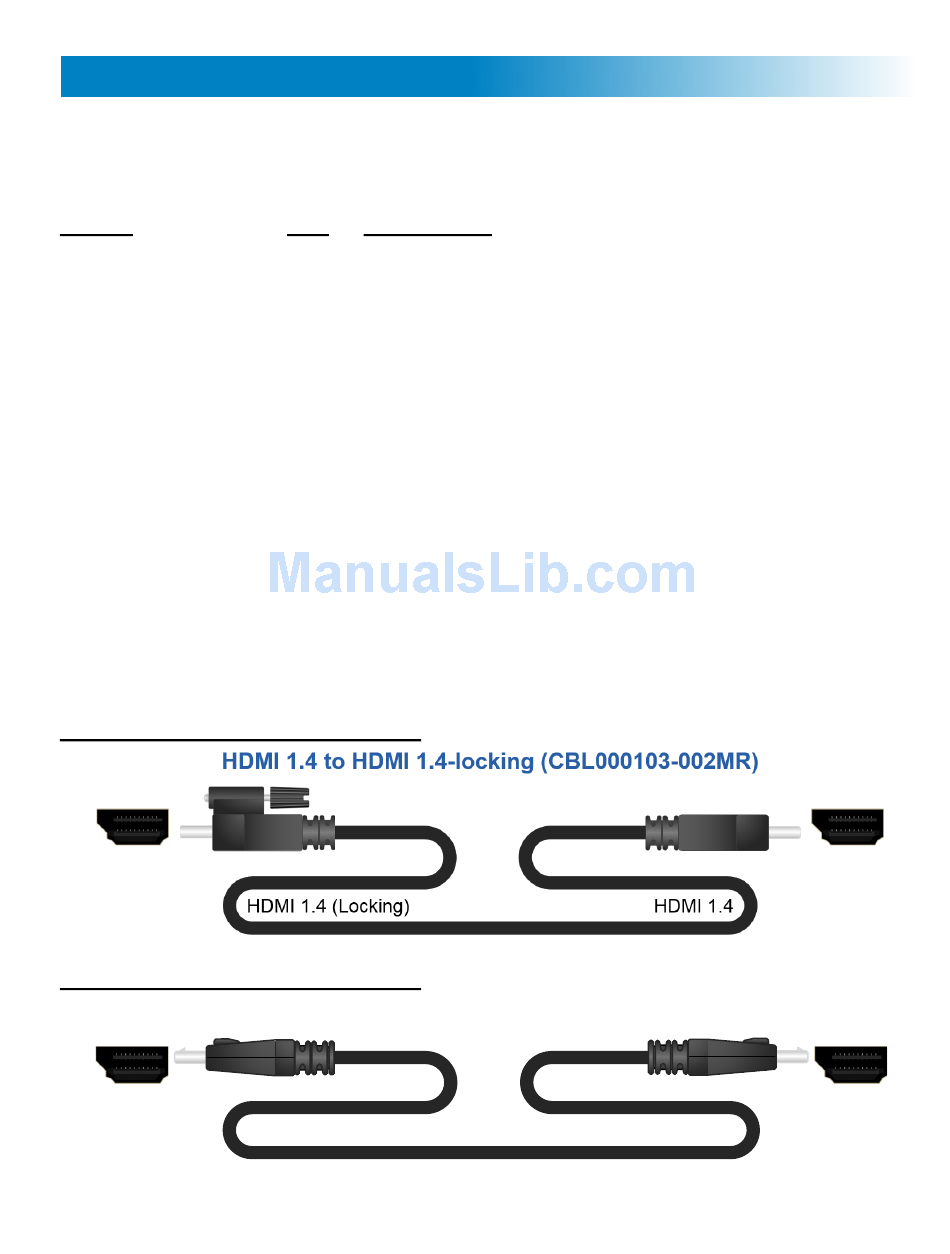

DisplayPort 1.2 to DisplayPort 1.2, locking (CBL000104-002MR)
TLX CATx Extension Products Manual
QTY CABLE TYPE
1 RJ-45 to DB-9F
1 CAT5, 2 Meters
2 USB A-B, 6 ft.
2 3.5mm to 3.5mm plug, M/M, 6 ft.
1 HDMI 1.4 to HDMI 1.4, 2 Meters
1 RJ-45 to DB-9M
1 CAT5, 2 Meters
1 RJ-45 to DB-9F
1 CAT5, 2 Meters
2 USB A-B, 6 ft.
2 3.5mm to 3.5mm plug, M/M, 6 ft.
1 Display Port 1.2 to Display Port 1.2
1 RJ-45 to DB-9M
1 CAT5, 2 Meters
DisplayPort 1.2 DisplayPort 1.2
