2.1.4 Drive Bay Installation

The standard type of the drive bay of ICS-480V can
hold up to three external 5.25" devices (or two 5.25"
and one 3.5" devices) and one 3.5" HDD. Axiomtek
also offer the 5.25" to 3.5" holder (GHA-FM01.)
Customer can install this holder on the 5.25" drive bays
to get extra 3.5" drive bays.
1. Remove the top cover
2. Release the four screws from the top of the Drive
Bay Module
3. Lift off the Drive Bay Module
4. Insert the devices into the proper location of the
Drive Bay Module and secure them with the screws
provided (See Figure 2.5)
5. Connect the disk drive power and signal cables
and re-install the Drive Bay Module to the chasses

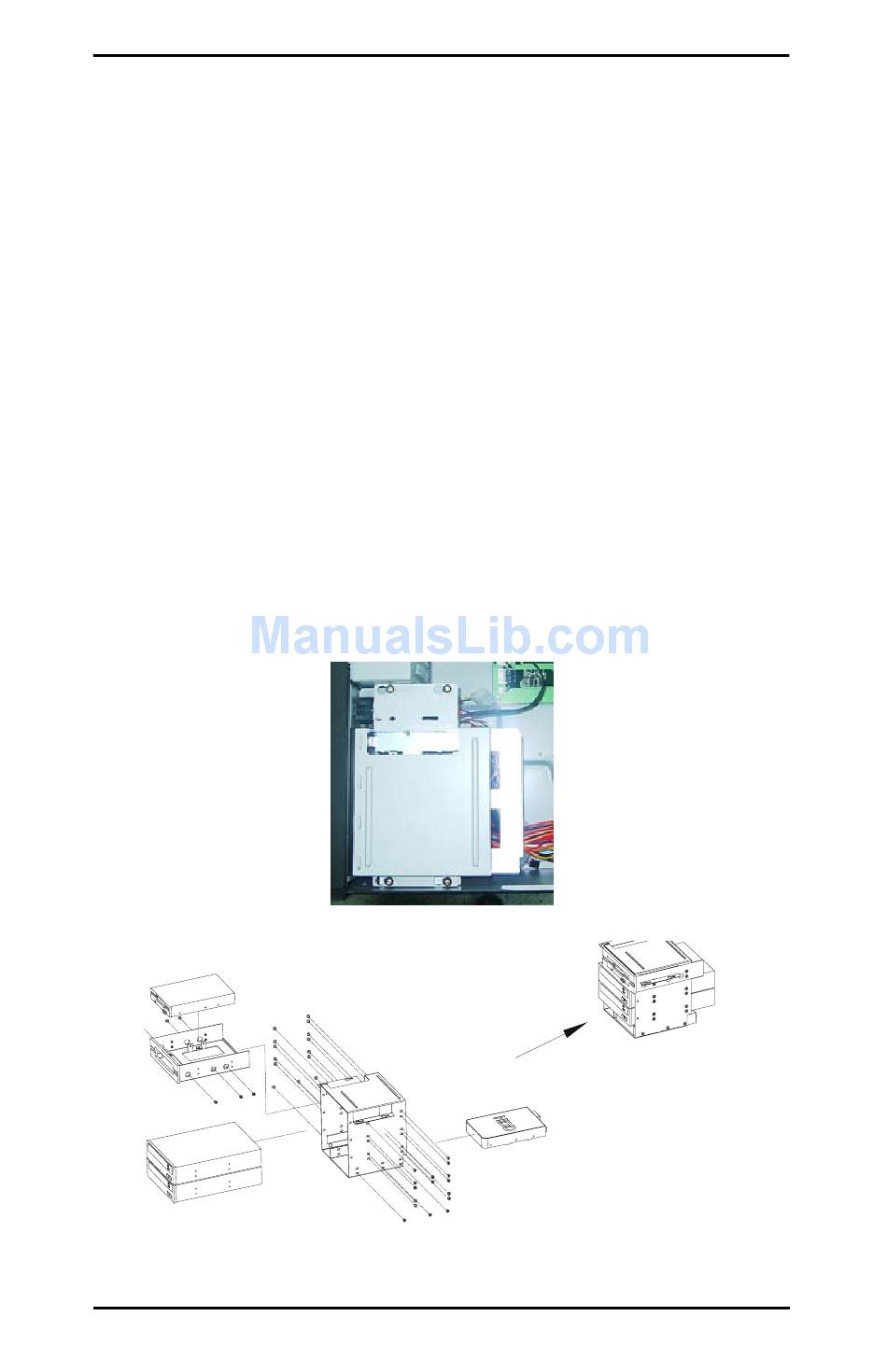

Figure 2.5: Explosive Diagram of Drive Bay
8
Figure 2.4: Drive Bay
