2.1.2 Chassis Front and Rear Sections

Face to the front view of ICS-480V, you will find a
8.4" TFT display module. There is a front door on the
left side of the front panel, which has 12 function keys
and 65 data entry keys on it. The front panel switches
and I/O interface behind the door are used for system
reset, power switch, USB port, OSD control, and
keyboard lock.
6

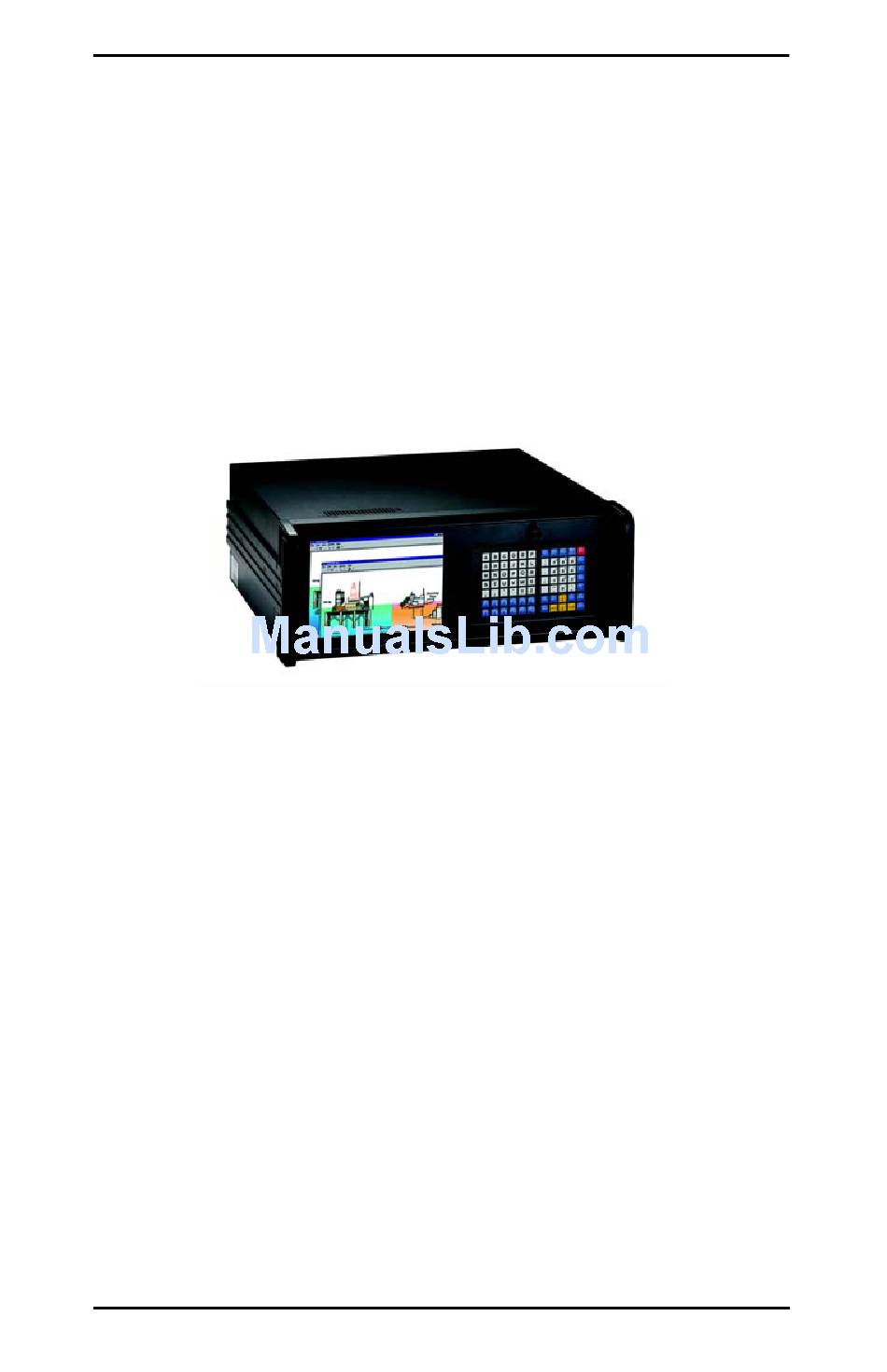

Figure 2.2: Front View
System Setup
