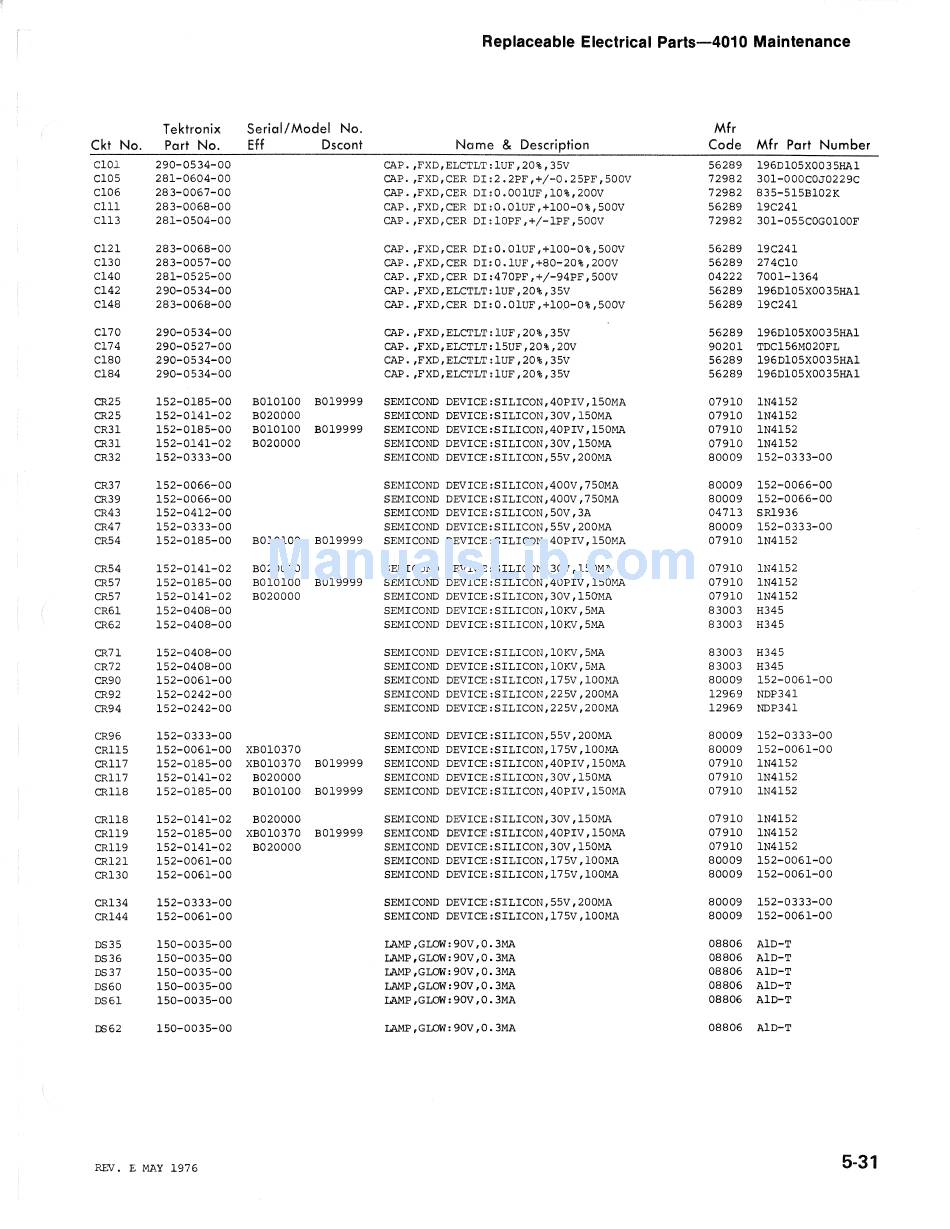

Tektronix 4010 Maintenance Manual page 99

Replaceable Electrical Parts-4010 Maintenance
Tektronix
Serial/ Model No. Mfr
Ckt No. Part No. Eff Dscont Name & Description Code Mfr Part Number
CI01 290-0534-00
CAP.,FXD,ELCTLT:IUF,20%,35V 56289 196DI05X0035HAl
CI05 281-0604-00 CAP. ,FXD,CER DI:2.2PF,+/-0.25PF,500V 72982 301-000COJ0229C
C106 283-0067-00 CAP.,FXD,CER DI:0.00IUF,10%,200V 72982 835-515B102K
Clll 283-0068-00 CAP.,FXD,CER DI:0.OIUF,+100-0%,500V 56289 19C241
Cll3 281-0504-00 CAP.,FXD,CER DI:10PF,+/-lPF,500V 72982
301-055COGOI00F
Cl21 283-0068-00 CAP. ,FXD,CER DI:0.OIUF,+100-0%,500V 56289 19C241
C130 283-0057-00 CAP. ,FXD,CER DI:0.1UF,+80-20%,200V 56289 274CI0
C140 281-0525-00 CAP. ,FXD,CER DI:470PF,+/-94PF,500V 04222 7001-1364
C142 290-0534-00 CAP. ,FXD,ELCTLT:IUF,20%,35V 56289 196DI05X0035HAl
C148 283-0068-00 CAP. ,FXD,CER DI:0.OIUF,+10.o-0%,500V 56289 19C241
C170 290-0534-00 CAP.,FXD,ELCTLT:IUF,20%,35V 56289 196D105X0035HAl
C174
290-0527-00 CAP. ,FXD,ELCTLT:15UF,20%,20V 90201 TDC156M020FL
C180 290-0534-00 CAP.,FXD,ELCTLT:IUF,20%,35V 56289 196DI05X0035HAl
C184 290-0534-00 CAP.,FXD,ELCTLT:IUF,20%,35V 56289 196DI05X0035HAl
CR25 152-0185-00 BOI0I00 B019999
SEMICOND DEVICE:SILICON,40PIV,150MA
07910 IN4152
CR25 152-0141-02 B020000 SEMlCOND DEVICE:SILICON,30V,150MA 07910 IN4152
CR31
152-0185-00 BOI0I00 B019999 SEMICOND DEVICE:SILICON,40PIV,150MA
07910
IN4152
CR31 152-0141-02 B020000 SEMICOND DEVICE:SILICON,30V,150MA 07910 IN4152
CR32 152-0333-00 SEMICOND DEVICE:SILICON,55V,200MA 80009 152-0333-00
CR37 152-0066-00 SEMICOND DEVICE:SILICON,400V,750MA 80009 152-0066-00
CR39 152-0066-00 SEMICOND DEVICE:SILICON,400V,750MA 80009 152-0066-00
CR43 152-0412-00
SEMICOND DEVICE:SILICON,50V,3A 04713 SRl936
CR47 152-0333-00 SEMICOND DEVICE:SILICON,55V,200MA 80009 152-0333-00
CR54
152-0185-00 BOI0I00 B019999 SEMICOND DEVICE:SILICON,40PIV,150MA 07910 IN4152
CR54 152-0141-02
B020000 SEMICOND DEVICE:SILICON,30V,150MA 07910 IN4152
CR57 152-0185-00 BOI0I00 B019999
SEMICOND DEVICE:SILICON,40PIV,150MA 07910 IN4152
CR57 152-0141-02 B020000 SEMICOND DEVICE:SILICON,30V,150MA 07910 IN4152
CR61
152-0408-00 SEMICOND DEVICE:SILICON,10KV,5MA 83003 H345
CR62 152-0408-00
SEMlCOND DEVlCE:SILICON,10KV,5MA 83003 H345
CR71 152-0408-00
SEMICOND DEVICE:SILICON,10KV,5MA 83003 H345
CR72 152-0408-00 SEMICOND DEVICE:SILICON,10KV,5MA 83003 H345
CR90 152-0061-00 SEMICOND DEVICE:SILICON,175V,100MA 80009
152-0061-00
CR92 152-0242-00 SEMICOND DEVICE:SILICON,225V,200MA 12969 NDP341
CR94 152-0242-00 SEMICOND DEVICE:SILICON,225V,200MA 12969 NDP341
CR96 152-0333-00
SEMICOND DEVICE:SILICON,55V,200MA 80009 152-0333-00
CRll5
152-0061-00 XBOI0370 SEMICOND DEVICE:SILICON,175V,100MA 80009 152-0061-00
CR1l7
152-0185-00 XBOI0370 B019999 SEMICOND DEVICE:SILICON,40PIV,150MA 07910 IN4152
CRll7
152-0141-02 B020000 SEMICOND DEVICE:SILICON,30V,150MA 07910 IN4152
CR1l8
152-0185-00 BOlCI00 B019999 SEMICOND DEVICE:SILICON,40PIV,150MA
07910 IN4152
CRll8 152-0141-02 B020000
SEMICOND DEVICE:SILICON,30V,150MA 07910 IN4152
CR1l9 152-0185-00 XBOI0370
B019999 SEMICOND DEVICE:SILICON,40PIV,150MA 07910 IN4152
CR1l9 152-0141-02 B020000
SEMICOND DEVICE:SILICON,30V,150MA 07910 IN4152
CR121 152-0061-00
SEMICOND DEVICE:SILICON, 175V, 100MA 80009 152-0061-00
CR130
152-0061-00
SEMICOND DEVICE:SILICON,175V,100MA 80009 152-0061-00
CR134
152-0333-00
SEMICOND DEVICE:SILICON,55V,200MA 80009 152-0333-00
CR144 152-0061-00
SEMICOND DEVICE:SILICON,175V,100MA 80009 152-0061-00
DS35 150-0035-00
LAMP,GLOW:90V,0.3MA 08806 AID-T
DS36 150-0035-00
LAMP,GLOW:90V,0.3MA 08806 AID-T
DS37 150-0035-00
LAMP,GLOW:90V,0.3MA 08806 AID-T
DS60 150-0035-00
LAMP,GLOW:90V,0.3MA 08806 A1D-T
DS61 150-0035-00
LAMP,GLOW:90V,0.3MA 08806 AID-T
0062 150-0035-00
LAMP,GLOW:90V,0.3MA 08806 AID-T
REV. E MAY 1976
5-31
