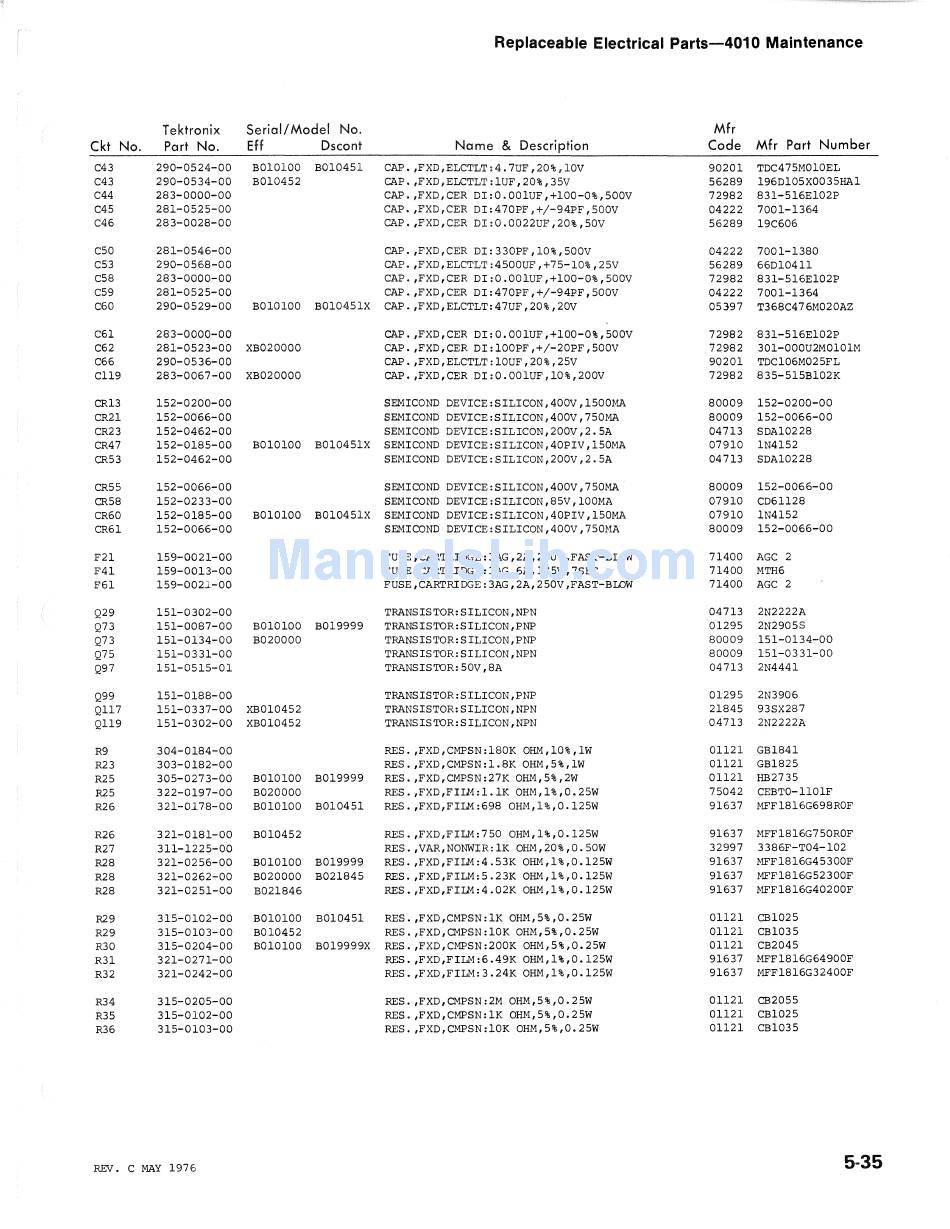

Replaceable Electrical Parts-4010 Maintenance
Tektronix
Serial/ Model No. Mfr
Ckt No. Part No. Eff
Dscont Name
&
Description Code Mfr Part Number
C43 290-0524-00 B010100 B010451 CAP.,FXD,ELCTLT:4.7UF,20%,10V
90201
TDC475M010EL
C43 290-0534-00 B010452 CAP.,FXD,ELCTLT:1UF,20%,35V 56289 196D105X0035HA1
C44 283-0000-00 CAP.,FXD,CER DI:0.001UF,+100-0%,500V 72982 831-516E102P
C45 281-0525-00 CAP. ,FXD,CER DI:470PF,+/-94PF,500V 04222 7001-1364
C46 283-0028-00 CAP.,FXD,CER DI:0.0022UF,20%,50V
56289 19C606
CSO 281-0546-00 CAP. ,FXD,CER DI:330PF,10%,500V
04222 7001-1380
C53 290-0568-00 CAP.,FXD,ELCTLT:4500UF,+75-10%,2SV
56289 66D10411
CS8 283-0000-00 CAP.,FXD,CER DI:0.001UF,+100-0%,SOOV 72982 831-516E102P
C59 281-0525-00 CAP.,FXD,CER DI:470PF,+/-94PF,500V 04222 7001-1364
C60 290-0529-00 BOlO100 B010451x CAP.,FXD,ELCTLT:47UF,20%,20V OS397 T368C476M020AZ
C61 283-0000-00 CAP.,FXD,CER DI:0.001UF,+100-0%,500V 72982 831-516E102P
C62 281-0523-00
XB020000 CAP.,FXD,CER DI:100PF,+/-20PF,500V 72982 301-000U2M0101M
C66 290-0536-00 CAP.,FXD,ELCTLT:10UF,20%,25V 90201 TDC106M025FL
C1l9 283-0067-00 XB020000 CAP.,FXD,CER DI:0.001UF,10%,200V 72982 835-515BlO2K
CR13 152-0200-00
SEMICOND DEVICE:SILICON,400V,1500MA
80009
lS2-0200-00
CR21 152-0066-00 SEMICOND DEVICE:SILICON,400V,750MA 80009 152-0066-00
CR23 152-0462-00 SEMICOND DEVICE:SILICON,200V,2.5A 04713 SDA10228
CR47
152-0185-00 B010lO0 B010451X SEMICOND DEVICE:SILICON,40PIV,150MA 07910 1N4152
CR53 152-0462-00 SEMICOND DEVICE:SILICON,200V,2.SA
04713 SDA10228
CR55 152-0066-00
SEMlCOND DEVICE:SILICON,400V,750MA 80009 152-0066-00
CR58 152-0233-00
SEMlCOND DEVICE:SILICON,85V,100MA 07910 CD61128
CR60 152-0185-00 B010100 B010451X SEMICOND DEVICE:SILICON,40PIV,150MA 07910
1N4152
CR61 152-0066-00
SEMICOND DEVICE:SILICON,400V,750MA 80009 152-0066-00
F21 159-0021-00
FUSE,CARTRIDGE:3AG,2A,250V,FAST-BLOW 71400 AGC 2
F41 159-0013-00 FUSE,CARTRIDGE:3AG,6A,125V,7SEC 71400 MTH6
F61 159-0021.-00 FUSE,CARTRIDGE:3AG,2A,250V,FAST-BLOW
71400 AGC 2
Q29 151-0302-00
TRANSISTOR:SILICON,NPN 04713 2N2222A
Q73 151-0087-00 B010100
B019999 TRANSISTOR:SILICON,PNP 01295 2N2905S
Q73 lSl-0134-00
B020000 TRANSISTOR:SILICON,PNP 80009 151-0134-00
Q75
151-0331-00 TRANSISTOR:SILICON,NPN 80009 151-0331-00
Q97
151-0515-01 TRANSISTOR:50V,8A 04713 2N4441
Q99
151-0188-00
TRANSISTOR:SILICON,PNP 01295 2N3906
Q1l7 151-0337-00 XB010452
TRANSISTOR:SILICON,NPN 21845 93SX287
Q1l9 151-0302-00
XB0104S2 TRANSISTOR:SILICON,NPN 04713 2N2222A
R9
304-0184-00 RES. ,FXD,CMPSN:180K OHM,10%,lW
01121 GB1841
R23 303-0182-00
RES.,FXD,CMPSN:1.8K OHM,5%,lW 01121 GB1825
R25 305-0273-00 B010100
B019999 RES. ,FXD,CMPSN:27K OHM,5%,2W 01121 HB2735
R25 322-0197-00 B020000
RES.,FXD,FILM:1.1K OHM,1%,0.25W 75042 CEBTO-ll01F
R26 321-0.178-00
B010lO0 B010451 RES.,FXD,FILM:6980HM,1%,0.125W 91637 MFF1816G698ROF
R26 321-0181-00 B010452
RES.,FXD,FILM:750 OHM,1%,0.125W 91637 MFF1816G750ROF
R27 311-1225-00
RES.,VAR,NONWIR:1K OHM,20%,0.50W 32997
3386F-T04-102
R28 321-0256-00
B010lO0 B019999 RES. ,FXD,FILM:4.53K OHM,1%,0.125W 91637 MFF1816G45300F
R28 321-0262-00 B020000 B021845
RES. ,FXD,FILM:5.23K OHM,1%,0.125W 91637 MFF1816G52300F
R28 321-0251-00 B021846
RES.,FXD,FILM:4.02K OHM,1%,0.125W 91637 MFF1816G40200F
R29 315-0102-00 B010100
B010451 RES.,FXD,CMPSN:1K OHM,5%,0.25W 01121 CB1025
R29 315-0103-00
B010452 RES.,FXD,CMPSN:10K OHM,5%,0.25W 01121 CB103S
R30
315-0204-00 B010100 B019999X
RES. ,FXD,CMPSN:200K OHM,5%,0.25W 01121 CB2045
R31 321-0271-00
RES. ,FXD,FILM:6.49K OHM,1%,0.125W 91637
MFF1816G64900F
R32
321-0242-00
RES. ,FXD,FILM:3.24K OHM,1%,0.125W 91637
MFF1816G32400F
R34 315-0205-00
RES. ,FXD,CMPSN:2M OHM,5%,0.25W
01121 CB20S5
R35
315-0102-00 RES. ,FXD,CMPSN:1K OHM,5%,0.2SW
01121 CB1025
R36
315-0103-00 RES. ,FXD,CMPSN:10K OHM,5%,0.25W
01121 CB1035
REV. C MAY 1976
5-35
