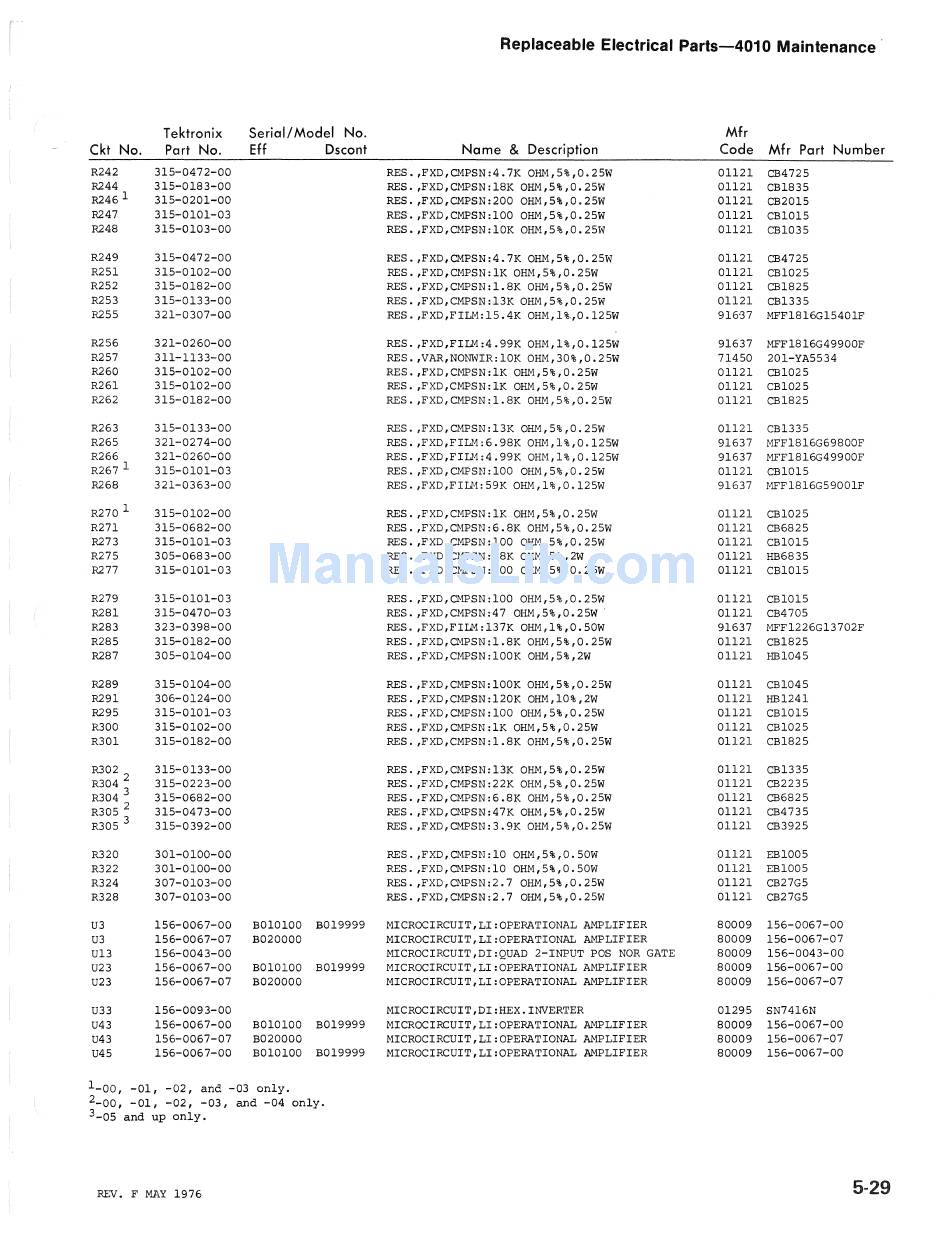

Replaceable Electrical Parts-4010 Maintenance'
Tektronix Serial/Model No.
Mfr
Ckt No. Part No.
Eff
Dscont Name
&
Description Code Mfr Part Number
R242 315-0472-00 RES.,FXD,CMPSN:4.7K OHM,5%,0.25W 01121
CB4725
R244 315-0183-00 RES. ,FXD,CMPSN:18K OHM,5%,0.25W 01121
CB1835
R246 1
315-0201-00 RES. ,FXD,CMPSN:200 OHM,5%,0.25W
01121 CB2015
R247 315-0101-03
RES. ,FXD,CMPSN:100 OHM,5%,0.25W 01121 CB1015
R248
315-0103-00 RES.,FXD,CMPSN:10K OHM,5%,0.25W 01121
CB1035
R249 315-0472-00
RES. ,FXD,CMPSN:4.7K OHM,5%,0.25W 01121 CB4725
R251
315-0102-00 RES.,FXD,CMPSN:1K OHM,5%,0.25W 01121 CB1025
R252
315-0182-00 RES.,FXD,CMPSN:1.8K OHM,5%,0.25W 01121 CB1825
R253 315-0133-00 RES.,FXD,CMPSN:13K OHM,5%,0.25W 01121
CB1335
R255 321-0307-00
RES. ,FXD,FILM:15.4K OHM,1%.,0.125W 91697 MFF1816G15401F
R256 321-0260-00 RES.,FXD,FILM:4.99K OHM,1%,0.125W 91637 MFF1816G49900F
R257 311-1133-00
RES.,VAR,NONWIR:10K OHM,30%,0.25W 71450 201-YA5534
R260 315-0102-00
RES.,FXD,CMPSN:1K OHM,5%,0.25W 01121 CB1025
R261 315-0102-00
RES. ,FXD,CMPSN:1K OHM,5%,0.25W 01121 CB1025
R262 315-0182-00
RES. ,FXD,CMPSN:1.8K OHM,5%,0.25W 01121 CB1825
R263 315-0133-00
RES. ,FXD,CMPSN:13K OHM,5%,0.25W 01121 CB1335
R265 321-0274-00 RES.,FXD,FILM:6.98K OHM,1%,0.125W 91637 MFF1816G69800F
R266 321-0260-00 RES. ,FXD,FILM:4.99K OHM,1%,0.125W 91637 MFF1816G49900F
R267 1
315-0101-03 RES. ,FXD,CMPSN:100 OHM,5%,0.25W
01121 CB1015
R268 321-0363-00 RES.,FXD,FILM:59K OHM,1%,0.125W
91637 MFF1816G59001F
R2701
315-0102-00 RES.,FXD,CMPSN:1K OHM,5%,0.25W 01121 CB1025
R271 315-0682-00 RES. ,FXD,CMPSN:6.8K OHM,5%,0.25W 01121 CB6825
R273 315-0101-03 RES. ,FXD,CMPSN:100 OHM,5%,0.25W 01121 CB1015
R275
305-0683-00 RES.,FXD,CMPSN:68K OHM,5%,2W 01121 HB6835
R277 315-0101-03
RES.,FXD,CMPSN:100 OHM,5%,0.25W
01121 CB1015
R279 315-0101-03 RES. ,FXD,CMPSN:100 OHM,5%,0.25W 01121
CB1015
R281 315-0470-03 RES. ,FXD,CMPSN:47 OHM,5%,0.25W .
01121 CB4705
R283
323-0398-00
RES. ,FXD,FILM:137K OHM,1%,0.50W 91637 MFF1226G13702F
R285 315-0182-00 RES. ,FXD,CMPSN:1.8K OHM,5%,0.25W 01121 CB1825
R287 305-0104-00 RES. ,FXD,CMPSN:100K OHM,5%,2W 01121 HB1045
R289 315-0104-00 RES.,FXD,CMPSN:100K OHM,5%,0.25W 01121 CB1045
R291 306-0124-00 RES. ,FXD,CMPSN:120K OHM,10%,2W 01121 HB1241
R295 315-0101-03 RES.,FXD,CMPSN:100 OHM,5%,0.25W 01121 CB1015
R300 315-0102-00
RES.,FXD,CMPSN:1K OHM,5%,0.25W
01121
CB1025
R301 315-0182-00 RES. ,FXD,CMPSN:1.8K OHM,5%,0.25W
01121
CB1825
R302 315-0133-00 RES. ,FXD,CMPSN:13K OHM,5%,0.25W 01121 CB1335
R304 ;
315-0223-00 RES. ,FXD,CMPSN:22K OHM,5%,0.25W 01121 CB2235
R304 315-0682-00 RES.,FXD,CMPSN:6.8K OHM,5%,0.25W 01121 CB6825
R305 2
315-0473-00 RES.,FXD,CMPSN:47K OHM,5%,0.25W 01121 CB4735
R305 3
315-0392-00 RES.,FXD,CMPSN:3.9K OHM,5%,0.25W 01121 CB3925
R320 301-0100-00 RES. ,FXD,CMPSN:10 OHM,5%,0.50W 01121 EB1005
R322 301-0100-00 RES. ,FXD,CMPSN:10 OHM,5%,0.50W 01121 EB1005
R324 307-0103-00 RES. ,FXD,CMPSN:2.7 OHM,5%,0.25W 01121 CB27G5
R328 307-0103-00 RES.,FXD,CMPSN:2.70HM,5%,0.25W 01121 CB27G5
U3
156-0067-00 B010100 B019999 MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 80009 156-0067-00
U3 156-0067-07
B020000 MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 80009 156-0067-07
U13 156-0043-00
MICROCIRCUIT,DI:QUAD 2-INPUT POS NOR GATE 80009 156-0043-00
U23 156-0067-00 B010100 B019999 MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 80009 156-0067-00
U23 156-0067-07 B020000 MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 80009 156-0067-07
U33
156-0093-00 MICROCIRCUIT,DI:HEX.INVERTER 01295 SN7416N
U43 156-0067-00 BOlO100 B019999 MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 80009 156-0067-00
U43 156-0067-07 B020000 MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 80009 156-0067-07
U45 156-0067-00 BOlO100 B019999 MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 80009 156-0067-00
1- 00 , -01, -02, and -03 only.
2- 00 , -01, -02, -03,
3- 0 5 and up only.
and -04 only.
REV. F MAY 1976
5-29
