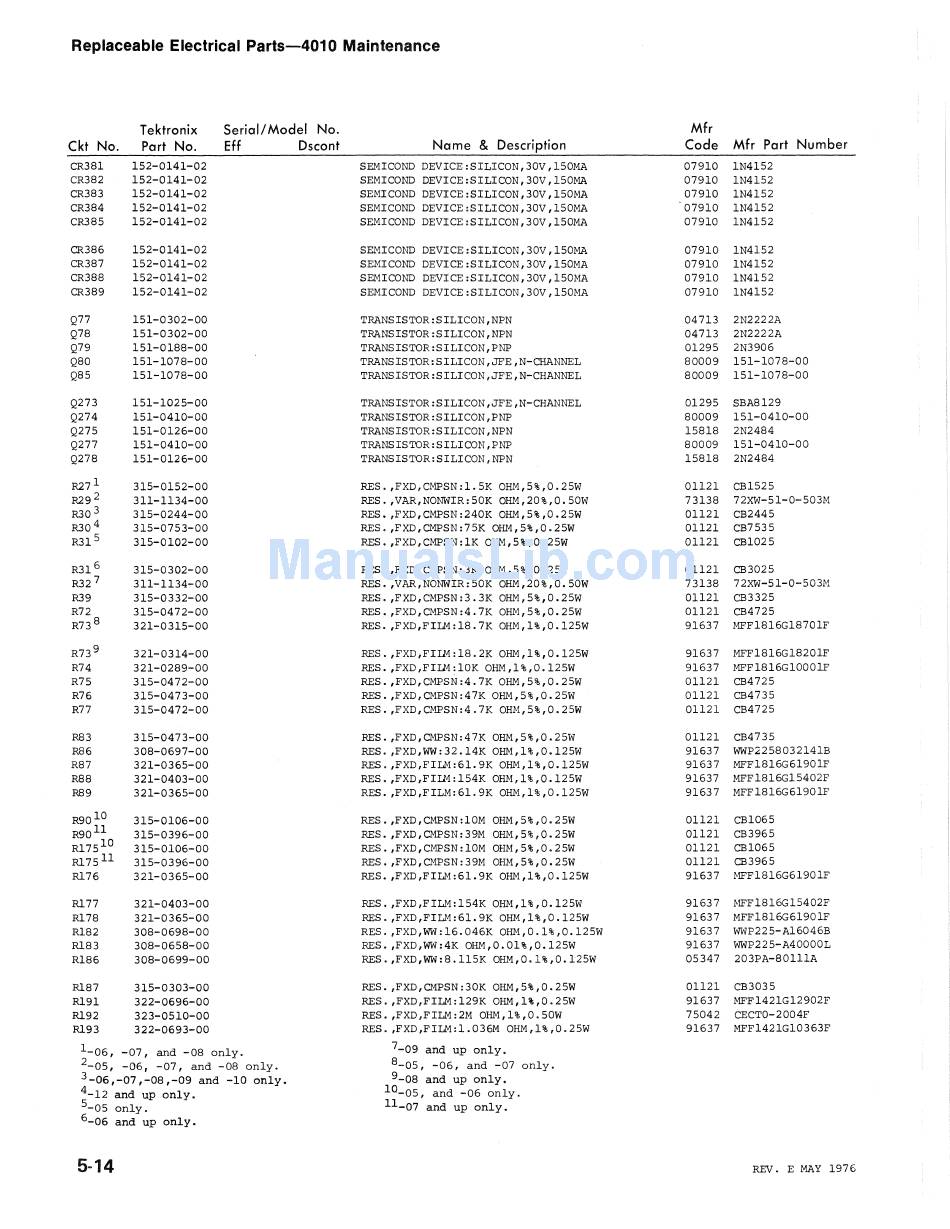

Replaceable Electrical Parts-4010 Maintenance
Tektronix
Serial/Model No. Mfr
Ckt No. Part No. Eff Dscont
Name
&
Description
Code Mfr Part Number
CR381 152-0141-02 SEMICOND DEVICE:SILICON,30V,150MA 07910 IN4152
CR382 152-0141-02 SEMlCOND DEVICE:SILICON,30V,150MA 07910 IN4152
CR383 152-0141-02
SEMICOND DEVICE:SILICON,30V,150MA 07910 IN4152
CR384 152-0141-02 SEMICOND DEVICE:SILICON,30V,150MA 07910 IN4152
CR385 152-0141-02
SEMlCOND DEVICE:SILICON,30V,150MA 07910
IN4152
CR386 152-0141-02 SEMICOND DEVICE:SILICON,30V,150MA 07910 IN4152
CR387 152-0141-02
SEMICOND DEVlCE:SILICON,30V,150MA 07910
IN4152
CR388 152-0141-02
SEMICOND DEVICE:SILICON,30V,150MA 07910 IN4152
CR389
152-0141-02 SEMICOND DEVICE:SILICON,30V,150MA 07910 IN4152
Q77
151-0302-00 TRANSISTOR:SILICON,NPN
04713
2N2222A
Q78 151-0302-00 TRANSISTOR:SILICON,NPN 04713 2N2222A
Q79
151-0188-00 TRANSISTOR:SILICON,PNP 01295 2N3906
Q80 151-1078-00 TRANSISTOR:SILICON,JFE,N-CHANNEL 80009 151-1078-00
Q85 151-1078-00 TRANSISTOR:SILlCON,JFE,N-CHANNEL 80009 151-1078-00
Q273
151-1025-00 TRANSISTOR:SILICON,JFE,N-CHANNEL 01295 SBA8129
Q274 151-0410-00 TRANSISTOR:SILICON,PNP 80009
151-0410-00
Q275 151-0126-00
TRANSISTOR:SILICON,NPN 15818 2N2484
Q277 151-0410-00 TRANSISTOR:SILlCON,PNP 80009 151-0410-00
Q278 151-0126-00 TRANSISTOR:SILICON,NPN 15818 2N2484
R271
315-0152-00 RES.,FXD,CMPSN:l.5K OHM,5%,0.25W 01121
CB1525
R29 2
311-1134-00 RES. ,VAR,NONWIR:50K OHM,20%,0.50W 73138 72XW-51-0-503M
R30 3
315-0244-00 RES. ,FXD,CMPSN:240K OHM,5%,0.25W
01121 CB2445
R30 4
315-0753-00
RES. ,FXD,CMPSN:75K OHM,5%,0.25W 01121 CB7535
R31 5
315-0102-00
RES. ,FXD,CMPSN:IK OHM,5%,0.25W 01121 CBI025
R31 6
315-0302-00
RES. ,FXD,CMPSN:3K OHM,5%,0.25W 01121 CB3025
R32 7
311-1134-00 RES. ,VAR,NONWIR:50K OHM,20%,0.50W 73138
72XW-51-0-503M
R39
315-0332-00
RES. ,FXD,CMPSN:3.3K OHM,5%,0.25W 01121 CB3325
R72 315-0472-00 RES.,FXD,CMPSN:4.7K OHM,5%,O.25W 01121 CB4725
R73 8
321-0315-00
RES. ,FXD,FILM:18.7K OHM,1%,O.125W 91637
MFF1816G18701F
R73 9
321-0314-00 RES. ,FXD,FILM:18.2K OHM,1%,0.125W 91637
MFF1816G18201F
R74 321-0289-00 RES. ,FXD,FILM:I0K OHM,l%,0.125W 91637 MFF1816GI000IF
R75 315-0472-00 RES.,FXD,CMPSN:4.7K OHM,5%,0.25W 01121 CB4725
R76 315-0473-00
RES.,FXD,CMPSN:47K OHM,5%,O.25W 01121 CB4735
R77 315-0472-00 RES. ,FXD,CMPSN:4.7K OHM,5%,0.25W 01121 CB4725
R83 315-0473-00
RES. ,FXD,CMPSN:47K OHM,5%,0.25W 01121 CB4735
R86
308-0697-00
RES. ,FXD,WW:32.14K OHM,1%,0.125W 91637 WWP2258032141B
R87
321-0365-00
RES.,FXD,FILM:61.9K OHM,1%,0.125W 91637
MFF1816G61901F
R88 321-0403-00 RES. ,FXD,FILM:154K OHM,1%,0.125W 91637
MFF181GG15402F
R89 321-0365;"00 RES. ,FXD,FILM:61.9K OHM,l%,O.125W
91637 MFF1816G61901F
R90 10
315-0106-00
RES.,FXD,CMPSN:I0M OHM,5%,O.25W 01121 CBI065
R90 11
315-0396-00
RES. ,FXD,CMPSN:39M OHM,5%,O.25W 01121 CB3965
R175 l0
315-0106-00
RES.,FXD,CMPSN:I0M OHM,5%,0.25W 01121 CBI065
Rl75 11
315-0396-00
RES.,FXD,OMPSN:39M OHM,5%,O.25W 01121 CB3965
Rl76 321-0365-00
RES. ,FXD,FILM:61.9K OHM,1%,0.125W 91637
MFF1816G61901F
Rl77 321-0403-00
RES.,FXD,FILM:154K OHM,1%,0.125W 91637 MFF1816G15402F
Rl78 321-0365-00
RES. ,FXD,FILM:61.9K OHM,1%,0.125W 91637 MFF1816G61901F
R182 308-0698-00 RES. ,FXD,WW:16.046K OHM,0.1%,0.125W
91637 WWP225-A16046B
Rl83 308-0658-00
RES. ,FXD,WW:4K OHM,0.01%,0.125W 91637
WWP225-A40000L
R186 308-0699-00
RES.,FXD,WW:8.115K OHM,0.1%,0.125W
05347 203PA-80111A
Rl87 315-0303-00
RES. ,FXD,CMPSN:30K OHM,5%,0.25W
01121 CB3035
R191
322-0696-00
RES. ,FXD,FILM:129K OHM,l%,0.25W 91637
MFF1421G12902F
Rl92
323-0510-00
RES. ,FXD,FILM:2M OHM,1%,0.50W 75042
CECTO-2004F
Rl93
322-0693-00
RES. ,FXD,FILM:l.036M OHM,1%,0.25W
91637 MFF1421GI0363F
1-06 , -07, and -08 only.
7-09 and up only.
2-05 , -06, -07, and -08 only.
8- 05, -06, and -07 only.
3-06 ,-07,-08,-09 and -10 only.
9-08 and up only.
4-12 and up only.
10-05, and -06 only.
5- 05 only.
11-07 and up only.
6-06 and up only.
5-14
REV. E MAY 1976
