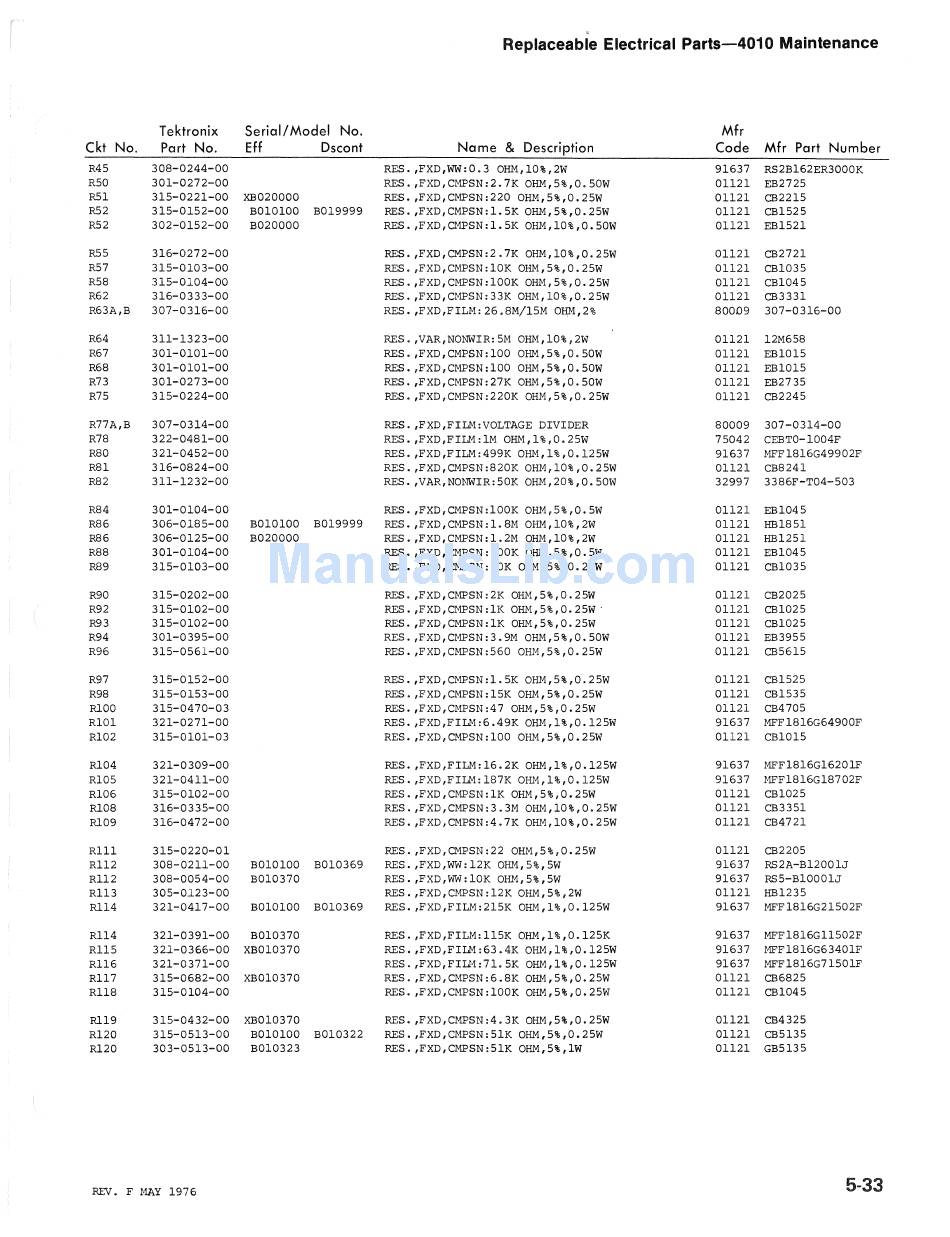

Replaceable Electrical Parts-4010 Maintenance
Tektronix Serial/ Model No. Mfr
Ckt No.
Part No.
Eff
Dscont Name
&
Description
Code Mfr Part Number
R45 308-0244-00
RES. ,FXD,WW:0.3 OHM,10%,2W 91637 RS2B162ER3000K
R50
301-0272-00 RES. ,FXD,CMPSN:2.7K OHM,5%,0.50W 01121 EB2725
RSI 315-0221-00 XB020000 RES. ,FXD,CMPSN:220 OHM,5%,0.25W 01121 CB2215
RS2 315-0152-00 BOI0I00 B019999 RES. ,FXD,CMPSN:1.5K OHM,5%,0.25W 01121 CB1525
R52 302-0152-00 B020000 RES. ,FXD,CMPSN:l.5K OHM,10%,0.50W 01121 EB1521
RS5 316-0272-00 RES. ,FXD,CMPSN:2.7K OHM,10%,0.25W
01121
CB2721
R57
315-0103-00 RES. ,FXD,CMPSN:10K OHM,5%,0.25W 01121 CB1035
R58
315-0104-00 RES.,FXD,CMPSN:100K OHM,5%,0.25W 01121 CB1045
R62
316-0333-00 RES. ,FXD,CMPSN:33K OHM,10%,0.25W 01121 CB3331
R63A,B 307-0316-00 RES. ,FXD,FILM: 26.8M/1511 OHM,2%
800D9
307-0316-00
R64 311-1323-00 RES. ,VAR,NONWIR: 5M OHM,10%,2W
01121 12M658
R67
301-0101-00 RES. ,FXD,CI1PSN:100 OHM,5%,0.50W 01121 EBI015
R68 301-0101-00 RES. ,FXD,CMPSN:100 OHM, 5% ,0. 50W
01121 EBI015
R73 301-0273-00 RES. ,FXD,CMPSN:27K OHM,5%,0.50W
01121 EB2735
R75 315-0224-00 RES. ,FXD,CMPSN:220K OHM,5%,0.25W 01121 CB2245
R77A,B 307-0314-00 RES. ,FXD,FILM:VOLTAGE DIVIDER
80009 307-0314-00
R78 322-0481-00
RES. ,FXD,FILM:IM OHM,1%,0.25W 75042 CEBTO-1004F
R80 321-0452-00 RES. ,FXD,FILM:499K OHM,1%,0.125W 91637 MFF1816G49902F
R81 316-0824-00 RES.,FXD,CMPSN:820K OHM,10%,0.25W 01121 CB8241
R82 311-1232-00 RES. ,VAR,NONWIR:50K OHM,20%,0.50W 32997
3386F~T04-503
R84 301-0104-00 RES. ,FXD,CMPSN:I00K OHM,5%,0.5W 01121 EB1045
R86 306-0185-00 B010100 B019999 RES. ,FXD,CMPSN:l.8M OHM,10%,2W 01121 HB1851
R86 306-0125-00 B020000 RES.,FXD,CMPSN:l.2M OHM,10%,2W 01121 HB1251
R88 301-0104-00 RES. ,FXD,CMPSN:IOOK OHM,5%,0.5W 01121 EBI045
R89 315-0103-00 RES. ,FXD,CMPSN:I0K OHM,5%,0.25W 01121 CB1035
R90 315-0202-00
RES. ,FXD,CMPSN:2K OHM,5%,0.25W 01121
CB2025
R92 315-0102-00 RES. ,FXD,CMPSN:IK OHM,5%,0.25W· 01121 CB1025
R93
315-0102-00
RES. ,FXD,CMPSN:IK OHM,5%,0.25W 01121 CB1025
R94 301-0395-00 RES. ,FXD,CMPSN:3.9M OHM,5%,0.50W 01121 EB3955
R96 315-0561-00 RES. ,FXD,CMPSN:560 OHI1,5%,0.25W 01121 CB5615
R97 315-0152-00 RES.,FXD,CMPSN:1.5K OHM,5%,0.25W 01121 CB1525
R98 315-0153-00 RES. ,FXD,CI1PSN:15K OHM,5%,0.25W 01121 CB1535
RlOO 315-0470-03 RES. ,FXD,CMPSN:47 OHM,5%,0.25W 01121 CB4705
R101 321-0271-00 RES. ,FXD,FILH:6.49K OHM,1%,0.125W 91637 MPF1816G64900F
R102 315-0101-03 RES. ,FXD,CMPSN:100 OHM,5%,0.25W 01121 CB1015
RI04 321-0309-00 RES. ,FXD,FILM:16.2K OHH,1%,0.12SW
91637 MPF1816G1620lF
R105 321-0411-00 RES. ,FXD,FIU1:187K OHI1,1%,0.12SW 91637 HFF1816G18702F
R106 315-0102-00 RES. ,FXD,CMPSN:1K OHH,5%,0.25W 01121 CBI025
RI08 316-0335-00
RES.,FXD,CMPSN:3.3M OHH,10%,0.25W 01121 CB3351
Rl09 316-0472-00 RES. ,FXD,CMPSN:4.7K OHM,10%,0.25W
01121 CB4721
R11I 315-0220-01 RES. ,FXD,CMPSN:22 OHI1,5%,0.2SW 01121 CB2205
R1l2 308-02lJ.-00 BOI0100 BOI0369 RES. ,FXD,WW:12K OHM,5%,5W 91637 RS2A-B12001J
R1l2 308-0054-00 B010370 RES. ,FXD,WW:10K OHM,5%,SW 91637 RS5-BIOO01J
R113 305-0~23-00
RES. ,FXD,Cl1PSN:12K OHH,5%,2W 01121 HB1235
Rl14
321-0417-00 B010100 B010369 RES. ,FXD,FILM:215K OHH,1%,0.125W 91637 MPF1816G21502F
R1l4 321-0391-00 B010370 RES. ,FXD,FILM:115K OHM,1%,0.125K 91637 MPF1816G11502F
RllS 3n-0366-00 XBOI0370 RES. ,FXD,FILI1:63.4K OHM,1%,0.125W 91637 l1FF1816G63401F
R1l6 321-0371-00 RES. ,FXD,FIL!1:71.5K OHM,1%,0.125W 91637 MPF1816G71501F
R117 315-0682-00 XBOI0370 RES. ,FXD,CMPSN:6.8K OHH,5%,0.25W 01121 CB6825
R118 315-0104-00
RES. ,FXD,CMPSN:I00K OHM,5%,0.25W 01121 CB1045
Rl19
315-0432-00 XB010370 RES. ,FXD,Cl1PSN:4.3K OHH,5%,0.25W 01121 CB4325
R120 315-0513-00 B010100
B010322 RES. ,FXD,CMPSN:51K OHH,5%,0.25W 01121 CB5135
R120 303-0513-00
B010323 RES. ,FXD,Cl1PSN:51K OHH,5%,lW 01121 GB5135
REV. F HAY 1976
5-33
