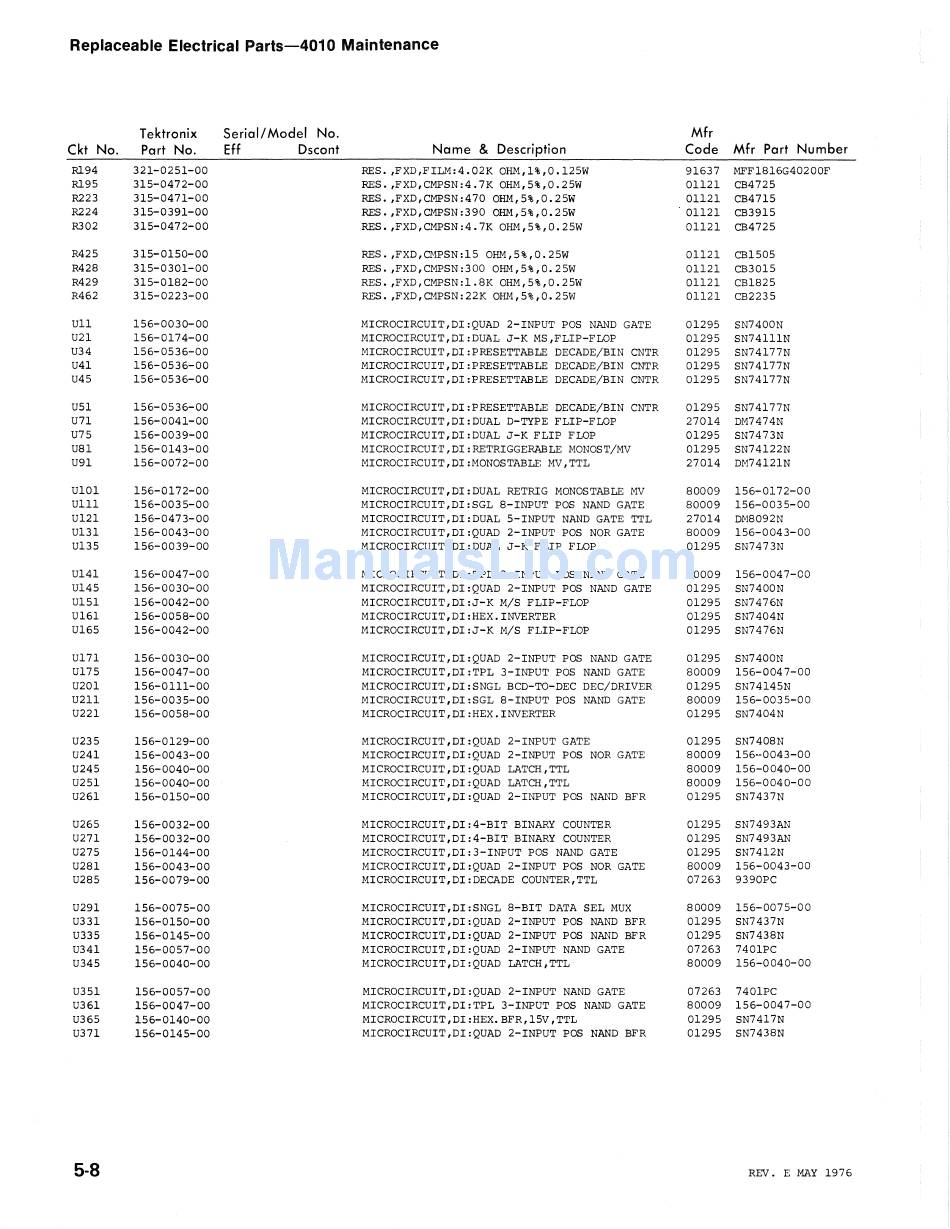

Replaceable Electrical Parts-4010 Maintenance
Tektronix Serial/Model No.
Mfr
Ckt No. Part No.
Eff
Dscont
Name
&
Description Code Mfr Part Number
Rl94 321-0251-00 RES. ,FXD,FILM:4.02K OHM,1%,0.125W
91637
MFF1816G40200F
Rl95 315-0472-00 RES.,FXD,CMPSN:4.7K OHM,5%,0.25W
01121 CB4725
R223 315-0471-00 RES. ,FXD,CMPSN:470 OHM,5%,0.25W 01121 CB4715
R224
315-0391-00 RES.,FXD,CMPSN:390 OHM,5%,0.25W 01121 CB3915
R302 315-0472-00 RES.,FXD,CMPSN:4.7K OHM,5%,0.25W
01121 CB4725
R425
315-0150-00 RES. ,FXD,CMPSN:15 OHM,5%,0.25W
01121 CB1505
R428 315-0301-00 RES. ,FXD,CMPSN:300 OHM,5%,0.25W 01121 CB3015
R429 315-0182-00 RES. ,FXD,CMPSN:l.8K OHM,5%,0.25W 01121 CB1825
R462
315-0223-00 RES. ,FXD,CMPSN:22K OHM,5%,0.25W 01121 CB2235
U11 156-0030-00 MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND GATE 01295 SN7400N
U21
156-0174-00 MICROCIRCUIT,DI:DUAL J-K MS,FLIP-FLOP 01295 SN74111N
U34 156-0536-00 MICROCIRCUIT,DI:PRESETTABLE DECADE/BIN CNTR
01295 SN74177N
U41 156-0536-00 MICROCIRCUIT,DI:PRESETTABLE DECADE/BIN CNTR 01295 SN74177N
U45 156-0536-00 MICROCIRCUIT,DI:PRESETTABLE DECADE/BIN CNTR 01295 SN74177N
U51 156-0536-00 MICROCIRCUIT,DI:PRESETTABLE DECADE/BIN CNTR 01295 SN74177N
un 156-0041-00
MICROCIRCUIT,DI:DUAL D-TYPE FLIP-FLOP 27014 DM7474N
U75 156-0039-00 MICROCIRCUIT,DI:DUAL J-K FLIP FLOP 01295 SN7473N
U81
156-0143-00
MICROCIRCUI'r, DI: RETRIGGERABLE MONOST/MV
01295 SN74122N
U91 156-0072-00 MICROCIRCUIT,DI:MONOSTABLE MV,TTL 27014 DM74121N
UI0l 156-0172-00 MICROCIRCUIT,DI:DUAL RETRIG MONOSTABLE MV
80009
156-0172-00
Ul11 156-0035-00 MICROCIRCUIT,DI:SGL 8-INPUT POS NAND GATE
80009
156-0035-00
U121 156-0473-00 MICROCIRCUIT,DI:DUAL 5-INPUT NAND GATE TTL 27014 DM8092N
U131 156-0043-00 MICROCIRCUIT,DI:QUAD 2-INPUT POS NOR GATE 80009 156-0043-00
u135 156-0039-00 MICROCIRCUIT,DI:DUAL J-K FLIP FLOP 01295 SN7473N
U141 156-0047-00 MICROCIRCUIT,DI:TPL 3-INPUT POS NAND GATE
80009 156-0047-00
U145
156-0030-00 MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND GATE 01295 SN7400N
U151
156-0042-00 MICROCIRCUIT,DI:J-K M/S FLIP-FLOP 01295 SN7476N
U161
156-0058-00 MICROCIRCUIT,DI:HEX.INVERTER 01295 SN7404N
U165
156-0042-00
MICROCIRCUIT,DI:J-K M/S FLIP-FLOP 01295 SN7476N
Ul71
156-0030-00 MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND GATE 01295 SN7400N
U175 156-0047-00 MICROCIRCUIT,DI:TPL 3-INPUT POS NAND GATE 80009 156-0047-00
U201
156-0111-00 MICROCIRCUIT,DI:SNGL BCD-TO-DEC DEC/DRIVER 01295 SN74145N
U211 156-0035-00 MICROCIRCUIT,DI:SGL 8-INPUT POS NAND GATE 80009 156-0035-00
U221
156-0058-00 MICROCIRCUIT,DI:HEX.INVERTER 01295 SN7404N
U235
156-0129-00
MICROCIRCUIT,DI:QUAD 2-INPUT GATE 01295 SN7408N
U241
156-0043-00
MICROCIRCUIT,DI:QUAD 2-INPUT POS NOR GATE 80009 156-0043-00
U245 156-0040-00 MICROCIRCUIT,DI:QUAD LATCH,TTL 80009 156-0040-00
U251 156-0040-00 MICROCIRCUIT,DI:QUAD LATCH,TTL 80009 156-0040-00
U261 156-0150-00 MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND BFR 01295 SN7437N
U265
156-0032-00
MICROCIRCUIT,DI:4-BIT BINARY COUNTER
01295
SN7493AN
U271
156-0032-00 MICROCIRCUIT,DI:4-BIT BINARY COUNTER 01295 SN7493AN
U275
156-0144-00
MICROCIRCUIT,DI:3-INPUT POS NAND GATE 01295 SN7412N
U281
156-0043-00 MICROCIRCUIT,DI:QUAD 2-INPUT POS NOR GATE 80009
156-0043-00
U285 156-0079-00 MICROCIRCUIT,DI:DECADE COUNTER, TTL 07263 9390PC
U291 156-0075-00 MICROCIRCUIT,DI:SNGL 8-BIT DATA SEL MUX 80009 156-0075-00
U331 156-0150-00 MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND BFR
01295 SN7437N
u335
156-0145-00
MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND BFR 01295 SN7438N
U341 156-0057-00 MICROCIRCUIT,DI:QUAD 2-INPUT NAND GATE
07263 7401PC
U345
156-0040-00
MICROCIRCUIT,DI:QUAD LATCH,TTL 80009 156-0040-00
U351
156-0057-00
MICROCIRCUIT,DI:QUAD 2-INPUT NAND GATE 07263 7401PC
U361 156-0047-00
MICROCIRCUIT,DI:TPL 3-INPUT POS NAND GATE 80009 156-0047-00
U365 156-0140-00
MICROCIRCUIT,DI:HEX.BFR,15V,TTL 01295 SN7417N
U371
156-0145-00
MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND BFR 01295 SN7438N
