Indicators
Power lamp
Indicator 1
Indicator 2
Switches
Power
LOCAL/LINE
®
LINE CORD ALWAYS
ATTACHED TO 1 & 4
VOLTAGE
+
10"70
Installation and Operation-4010 Maintenance
JUMPER ARRANGEMENT
100
110
120
200
220
240
TERMINAL NO.
1-8
1-2
1-7
5-8
2-3
6-7
4-5
4-3
4-6
TWO JUMPERS REQUIRED
ONE JUMPER REQUIRED
(A) Below serial number B020256.
JUMPER ARRANGEMENT
LINE CORD ALWAYS
ATTACHED TO 1 & 4
VOLTAGE
+
10"70
100
115
120
200
220
230
240
TERMINAL NO.
1-8
1-2
1-7
5-8
5-7
2-3
6-7
4-5
3-4
4-6
TWO JUMPERS REQUIRED
ONE JUMPER REQUIRED
(B) Serial number B020256 and above.

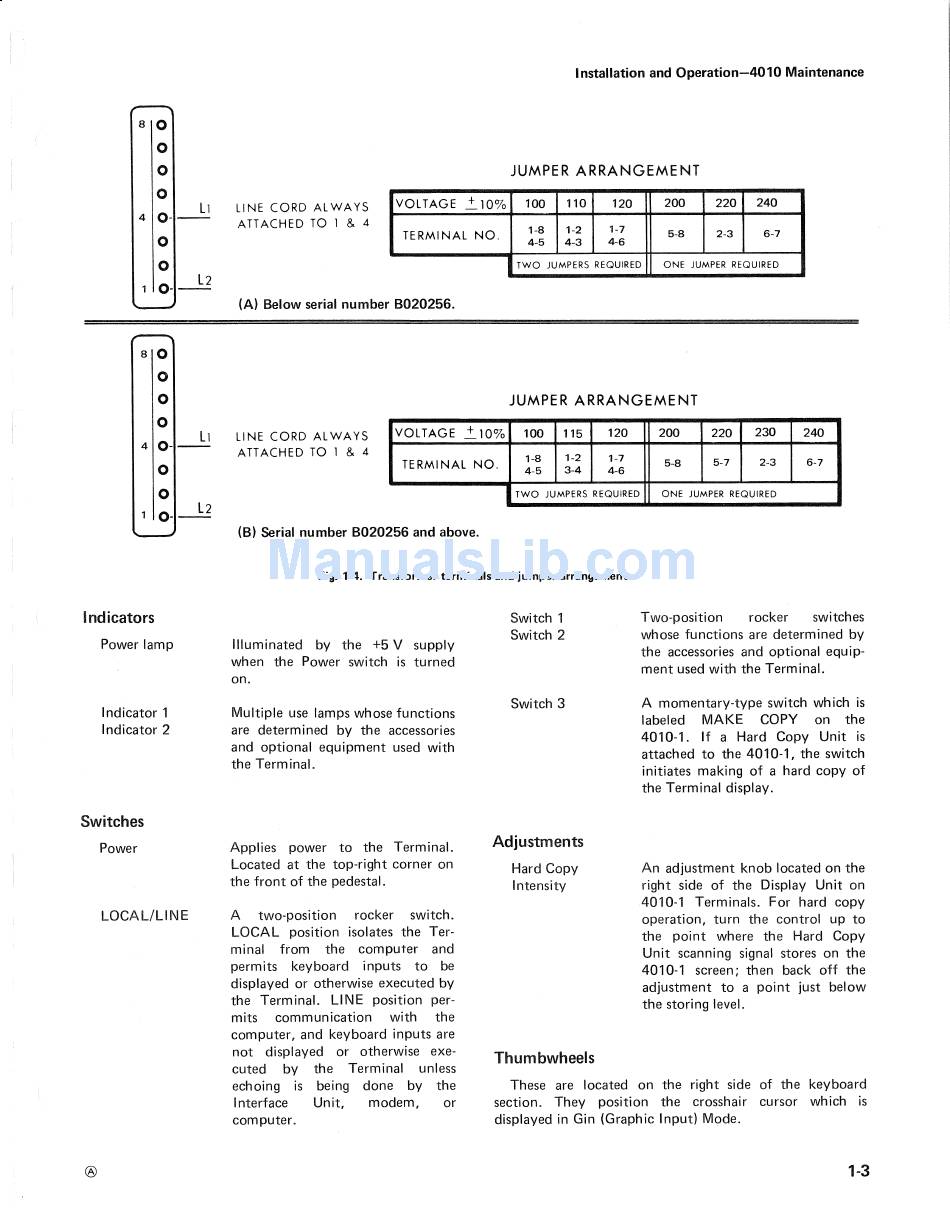

Fig. 1-4. Transformer terminals and jumper arrangement.
Illuminated by the +5 V supply
when the Power switch is turned
on.
Multiple use lamps whose functions
are determined by the accessories
and optional equipment used with
the Terminal.
Applies power to the Terminal.
Located at the top-right corner on
the front of the pedestal.
A
two-position
rocker
switch.
LOCAL position isolates the Ter-
minal
from
the computer and
permits keyboard
inputs to be
displayed or otherwise executed by
the Terminal. LINE position per-
mits
communication
with
the
computer, and keyboard inputs are
not displayed or otherwise exe-
cuted
by
the
Terminal
unless
echoing is being done
by the
Interface
Unit,
modem,
or
computer.
Switch 1
Switch 2
Switch 3
Adjustments
Hard Copy
Intensity
Thumbwheels
Two-position
rocker
switches
whose functions are determined by
the accessories and optional equip-
ment used with the Terminal.
A momentary-type switch which is
labeled
MAKE
COPY
on
the
4010-1. If a Hard Copy Unit is
attached to the 4010-1, the switch
initiates making of a hard copy of
the Terminal display.
An adjustment knob located on the
right side of the Display Unit on
4010-1 Terminals. For hard copy
operation, turn the control up to
the point where the Hard Copy
Unit scanning signal stores on the
4010-1 screen; then back off the
adjustment to a point just below
the storing level.
These are located on the right side of the keyboard
section. They position the crosshair cursor which is
displayed in Gin (Graphic Input) Mode.
1-3
