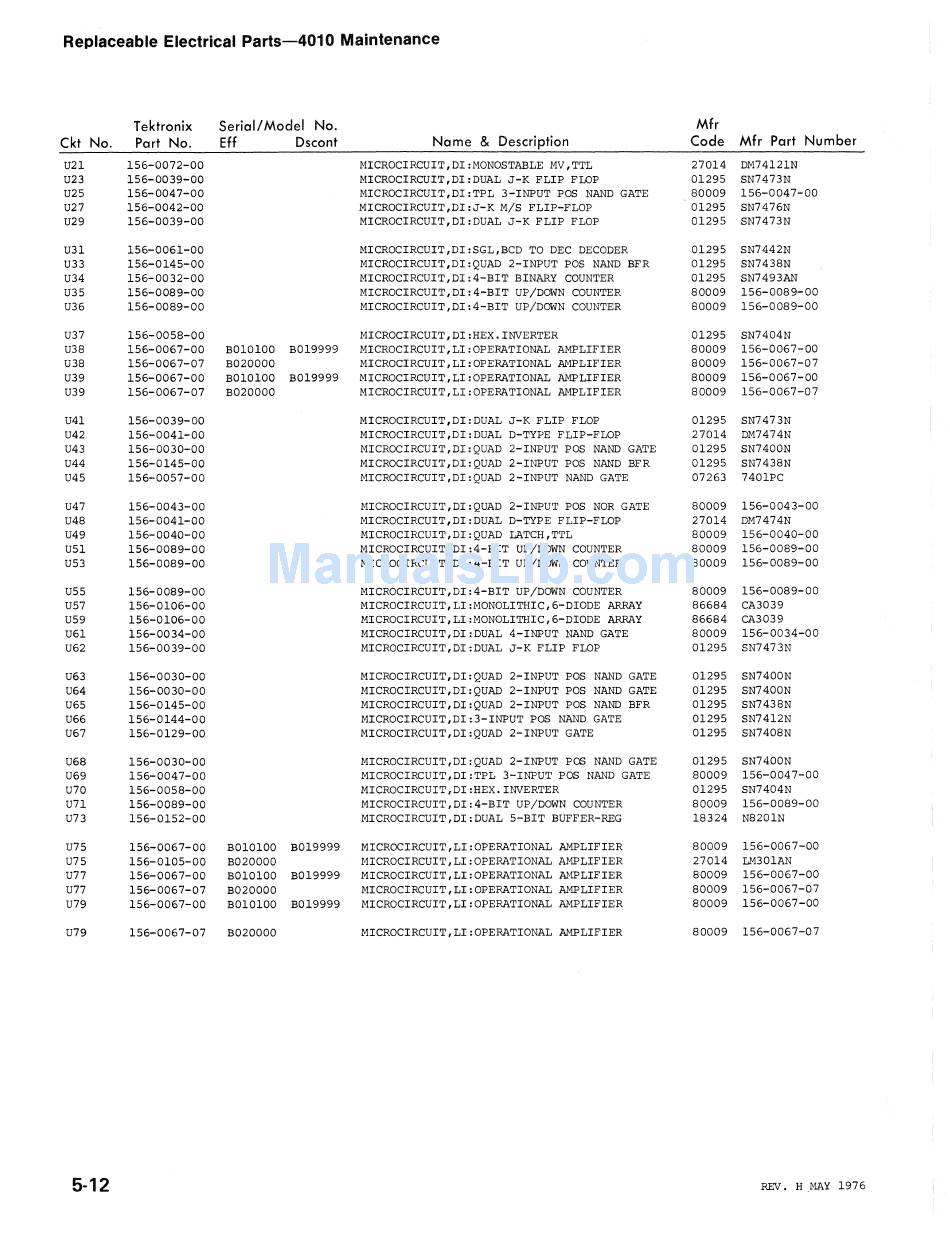

Tektronix 4010 Maintenance Manual page 80

Replaceable Electrical Parts-4010 Maintenance
Tektronix Serial! Model No.
Mfr
Ckt No. Part No.
Eff
Dscont Name
&
Description Code
Mfr Part Number
U21 156-0072-00
MICROCIRCUIT,DI:MONOSTABLE MV,TTL 27014 DM74121N
U23 156-0039-00 MICROCIRCUIT,DI:DUAL J-K FLIP FLOP 01295
SN7473N
U25 156-0047-00 MICROCIRCUIT,DI:TPL 3-INPUT POS NAND GATE 80009
156-0047-00
U27 156-0042-00
MICROCIRCUIT,DI:J-K M/S FLIP-FLOP 01295 SN7476N
U29 156-0039-00 MICROCIRCUIT,DI:DUAL J-K FLIP FLOP 01295
SN7473N
U31 156-0061-00 MICROCIRCUIT,DI:SGL,BCD TO DEC DECODER 01295 SN7442N
U33 156-0145-00 MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND BFR 01295 SN7438N
U34 156-0032-00
MICROCIRCUIT,DI:4-BIT BINARY COUNTER 01295 SN7493AN
U35 156-0089-00 MICROCIRCUIT,DI:4-BIT UP/DOWN COUNTER 80009
156-0089-00
U36 156-0089-00 MICROCIRCUIT,DI:4-BIT UP/DOWN COUNTER 80009 156-0089-00
U37 156-0058-00 MICROCIRCUIT,DI:HEX.I~NERTER 01295
SN7404N
U38 156-0067-00 BOI0100 B019999
MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 80009 156-0067-00
U38 156-0067-07 B020000
MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 80009 156-0067-07
U39
156-0067-00
BOI0I00 B019999 MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 80009 156-0067-00
U39 156-0067-07 B020000
MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 80009 156-0067-07
U41 156-0039-00
MICROCIRCUIT,DI:DUAL J-K FLIP FLOP 01295 SN7473N
U42 156-0041-00 MICROCIRCUIT,DI:DUAL D-TYPE FLIP-FLOP 27014
DM7474N
U43
156-0030-00
MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND GATE 01295 SN7400N
U44 156-0145-00
MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND BFR 01295 SN7438N
U45 156-0057-00 MICROCIRCUIT,DI:QUAD 2-INPUT NAND GATE 07263
7401PC
U47 156-0043-00
MICROCIRCUIT,DI:QUAD 2-INPUT POS NOR GATE 80009 156-0043-00
U48 156-0041-00 MICROCIRCUIT,DI:DUAL D-TYPE FLIP-FLOP
27014 DM7474N
U49 156-0040-00 MICROCIRCUIT,DI:QUAD LATCH,TTL 80009
156-0040-00
U51
156-0089-00
MICROCIRCUIT,DI:4-BIT UP/DOWN COUNTER 80009
156-0089-00
U53 156-0089-00
MICROCIRCUIT,DI:4-BIT UP/DOWN COUNTER 80009 156-0089-00
U55 156-0089-00
MICROCIRCUIT,DI:4-BIT UP/DOWN COUNTER 80009 156-0089-00
U57 156-0106-00
MICROCIRCUIT,LI:MONOLITHIC,6-DIODE ARRAY 86684 CA3039
U59 156-0106-00
MICROCIRCUIT,LI:MONOLITIIIC,6-DIODE ARRAY 86684 CA3039
U61 156-0034-00 MICROCIRCUIT,DI:DUAL 4-INPUT NAND GATE 80009
156-0034-00
U62 156-0039-00 MICROCIRCUIT,DI:DUAL J-K FLIP FLOP 01295 SN7473N
U63 156-0030-00
MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND GATE 01295 SN7400N
U64 156-0030-00 MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND GATE
01295 SN7400N
U65 156-0145-00 MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND BFR
01295 SN7438N
U66
156-0144-00
MICROCIRCUIT,DI:3-INPUT POS NAND GATE 01295
SN7412N
U67
156-0129-00
MICROCIRCUIT,DI:QUAD 2-INPUT GATE 01295 SN7408N
U68 156-0030-00
MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND GATE 01295 SN7400N
U69 156-0047-00
MICROCIRCUIT,DI:TPL 3-INPUT POS NAND GATE 80009 156-0047-00
U70 156-0058-00
MICROCIRCUIT,DI:HEX.INVERTER 01295 SN7404N
U7l 156-0089-00 MICROCIRCUIT,DI:4-BIT UP/DOWN COUNTER 80009 156-0089-00
U73
156-0152-00
MICROCIRCUIT,DI:DUAL 5-BIT BUFFER-REG 18324 N8201N
U75 156-0067-00 BOI0I00 B019999
MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 80009 156-0067-00
U75
156-0105-00 B020000
MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 27014 LM301AN
U77
156-0067-00 BOI0I00
B019999 MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 80009
156-0067-00
U77 156-0067-07 B020000
MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 80009 156-0067-07
U79 156-0067-00 BOI0I00 B019999
MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 80009 156-0067-00
U79
156-0067-07 B020000
MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 80009
156-0067-07
5-12
REV. H MAY 1976
