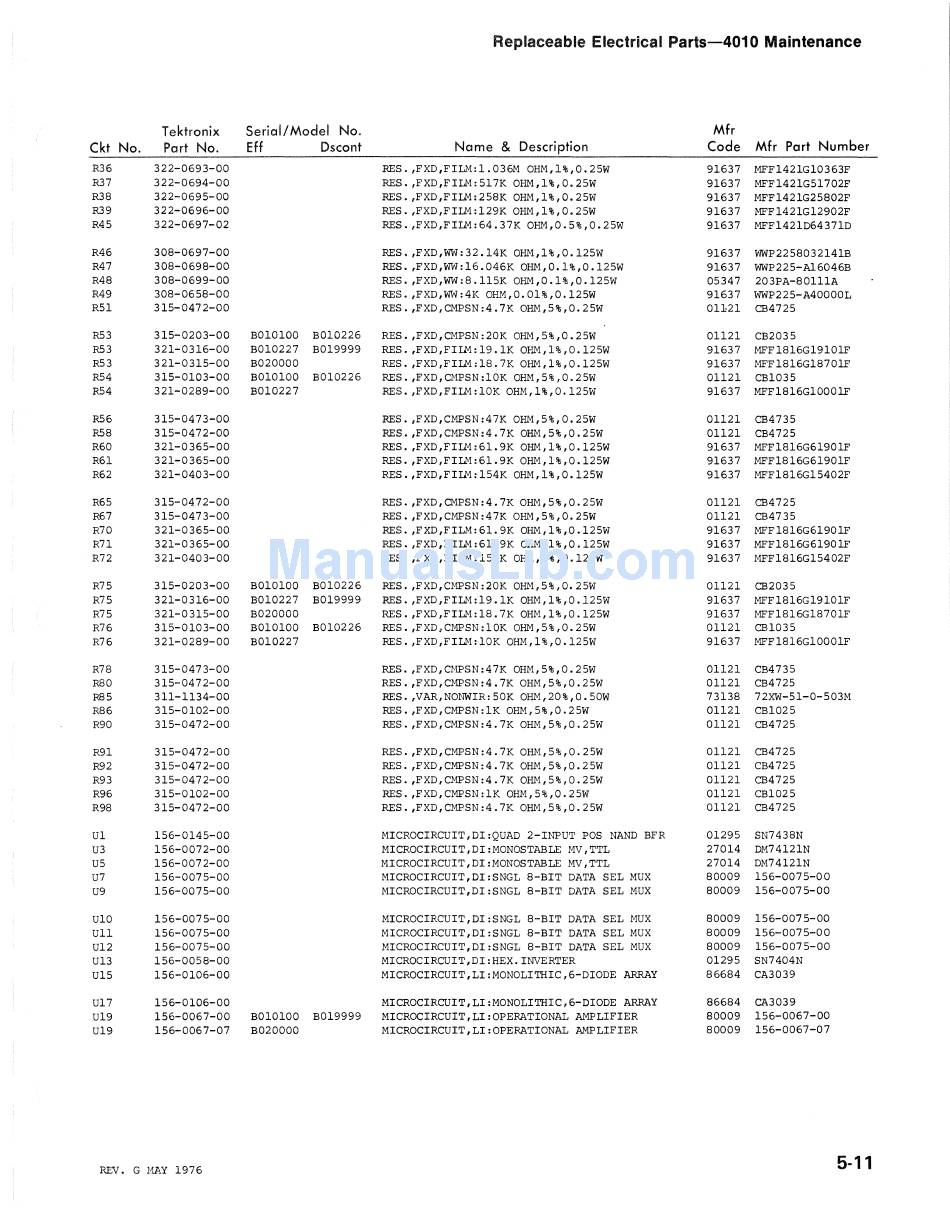

Replaceable Electrical Parts-4010 Maintenance
Tektronix Serial/ Model No.
Mfr
Ckt No. Part No.
Eff Dscont Name & Description
Code Mfr Part Number
R36 322-0693-00
RES.,FXD,FILM:1.036M OHM,1%,0.25W 91637 MFF1421G10363F
R37 322-0694-00
RES.,FXD,FILM:517K OHM,1%,0.25W 91637 MFF142IG51702F
R38 322-0695-00 RES. ,FXD,FILM:258K OHM,1%,0.25W
91637 MFF1421G25802F
R39
322-0696-00 RES. ,FXD,FILM:129K OHM,1%,0.25W 91637 MFF1421G12902F
R45
322-0697-02
RES.,FXD,FILM:64.37K OHM,0.5%,0.25W
91637 MFF1421D64371D
R46
308-0697-00
RES.,FXD,WW:32.14K OHM,1%,0.125W
91637 WWP2258032141B
R47 308-0698-00 RES. ,FXD,WW:16.046K OHM,0.1%,0.125W
91637 WWP225-Al6046B
R48
308-0699-00
RES. ,FXD,WW:8.115K OHM,0.1%,0.125W
05347 203PA-80111A
R49 308-0658-00 RES. ,FXD,WW:4K OHM,0.01%,0.125W 91637 WWP225-MOOOOL
R51 315-0472-00 RES.,FXD,CMPSN:4.7K OHM,5%,0.25W
01121
CB4725
R53 315-0203-00 B010100 B010226 RES.,FXD,CMPSN:20K OHM,5%,0.25W
01121
CB2035
R53 321-0316-00 B010227 B019999 RES. ,FXD,FILM:19.1K OHM,1%,0.125W
91637 MFF1816G1910lF
R53
321-0315-00
B020000 RES. ,FXD,FILM:18.7K OHM,1%,0.125W 91637 MFF1816G1870lF
R54 315-0103-00 B010100
B010226
RES.,FXD,CMPSN:10K OHM,5%,0.25W
01121
CB1035
R54 321-0289-00 B010227 RES. ,FXD,FILM:10K OHM,1%,0.125W 91637 MFF1816G1000lF
R56
315-0473-00
RES. ,FXD,CMPSN:47K OHM,5%,0.25W
01121
CB4735
R58 315-0472-00 RES.,FXD,CMPSN:4.7K OHM,5%,0.25W 01121 CB4725
R60 321-0365-00 RES. ,FXD,FILM:61.9K OHM,1%,0.125W 91637 MFF1816G61901F
R61
321-0365-00
RES. ,FXD,FILM:61.9K OHM,1%,0.125W 91637 MFF1816G61901F
R62
321-0403-00
RES.,FXD,FILM:154K OHM,1%,0.125W 91637 MFF1816G15402F
R65 315-0472-00 RES.,FXD,CMPSN:4.7K OHM,5%,0.25W
01121
CB4725
R67 315-0473-00 RES. ,FXD,CMPSN:47K OHM,5%,0.25W 01121 CB4735
R70 321-0365-00 RES. ,FXD,FILM:61.9K OHM,1%,0.125W 91637 MFF1816G6190lF
R71 321-0365-00
RES. ,FXD,FILM:61.9K OHM,1%,0.125W
91637 MFF1816G6190lF
R72
321-0403-00 RES.,FXD,FILM:154K OHM,1%,0.125W
91637
MFF1816G15402F
R75 315-0203-00 B010100 B010226 RES. ,FXD,CMPSN:20K OHM,5%,0.25W
01121
CB2035
R75 321-0316-00
B010227 B019999 RES. ,FXD,FILM:19.1K OHM,1%,0.l25W
91637 MFF1816G19101F
R75 321-0315-00 B020000 RES.,FXD,FILM:18.7K OHM,1%,0.125W 91637 MFF1816G18701F
R76
315-0103-00
B010100 B010226 RES.,FXD,CMPSN:10K OHM,5%,0.25W
01121
CB1035
R76 321-0289-00 B010227 RES.,FXD,FILM:10K OHM,1%,0.125W 91637 MFF1816G10001F
R78
315-0473-00
RES. ,FXD,CMPSN:47K OHM,5%,0.25W
01121
CB4735
RSO
315-0472-00 RES.,FXD,CMPSN:4.7K OHM,5%,0.25W
01121
CB4725
RS5
311-1134-00
RES. ,VAR,NONWIR:50K OHM,20%,0.50W 73138 72XW-51-0-503M
R86 315-0102-00
RES.,FXD,CMPSN:1K OHM,5%,0.25W 01121
CB1025
R90 315-0472-00 RES.,FXD,CMPSN:4.7K OHM,5%,0.25W 01121 CB4725
R91
315-0472-00 RES.,FXD,CMPSN:4.7K OHM,5%,0.25W
01121
CB4725
R92
315-0472-00
RES. ,FXD,CMPSN:4.7K OHM,5%,0.25W 01121 CB4725
R93
315-0472-00 RES. ,FXD,CMPSN:4.7K OHM,5%,0.25W
01121
CB4725
R96 315-0102-00 RES. ,FXD,CMPSN:1K OHM,5%,0.25W 01121 CB1025
R98 315-0472-00 RES.,FXD,CMPSN:4.7K OHM,5%,0.25W 01121 CB4725
u1 156-0145-00
MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND BFR
01295
SN7438N
U3 156-0072-00
MICROCIRCUIT,DI:MONOSTABLE MV,TTL
27014
DM74121N
U5 156-0072-00
MICROCIRCUIT,DI:MONOSTABLE MV,TTL
27014
DM74121N
U7
156-0075-00 MICROCIRCUIT,DI:SNGL 8-BIT DATA SEL MUX 80009 156-0075-00
U9 156-0075-00
MICROCIRCUIT,DI:SNGL 8-BIT DATA SEL MUX 80009 156-0075-00
U10 156-0075-00 MICROCIRCUIT,DI:SNGL 8-BIT DATA SEL MUX 80009 156-0075-00
U11
156-0075-00 MICROCIRCUIT,DI:SNGL 8-BIT DATA SEL MUX 80009 156-0075-00
U12 156-0075-00 MICROCIRCUIT,DI:SNGL 8-BIT DATA SEL MUX 80009 156-0075-00
U13 156-0058-00 MICROCIRCUIT,DI:HEX.INVERTER 01295
SN7404N
U15 156-0106-00
MICROCIRCUIT,LI:MONOLITHIC,6-DIODE
ARRAY
86684 CA3039
U17
156-0106-00
MICROCIRCUIT,LI:MONOLITHIC,6-DIODE ARRAY
86684 CA3039
U19 156-0067-00 B010100 B019999
MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER
80009
156-0067-00
U19 156-0067-07
B020000 MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER
80009
156-0067-07
REV. G MAY 1976
5-11
