Thumbwheels. Potentiometers located on the keyboard;
used to position the crosshair cursor.
Time, Character Writing. Approximately 0.8 ms.
Time, Vector Drawing. Time required to draw a
complete vector is approximately 2.6 ms.
Transmission, Alpha Mode. Data is transmitted as
entered at the keyboard, or as placed on the minibus by
other devices.
Transmission, Gin Mode. Data is transmitted as a series
of bytes in response to an ESC ENG from the computer, or
in response to a keyboard character entered while the
crosshair cursor is displayed. Refer to Table 2-6 for details.
. - - - - - 1 5 "
-----~
141/4 "
L~4=>q ~o""""\
Characteristics-4010 Maintenance
Transmission Rate. Interface dependent. See documenta-
tion pertaining to the specific interface unit. Also see Data
Transfer Rate.
Vector Drawing Time. 2.6 ms or less.
Vector Dynamic Geometry Error. Deviation from mean
straight line does not exceed 1.5% worst case (45
0
line).
Vector Length Error. Does not exceed 1% of actual
vector length.
View Mode. Normal intensity display. Occurs at all times
except during copy making (Hard Copy Mode) and Hold
Status .
/-+----+--+------1~28 1/2"-------00-1
.... - - - - 14" - - - - . . I
25"
1+-------181/4" - - - - - - - '
...... - - - - - - - 22 3/4"
--------..1

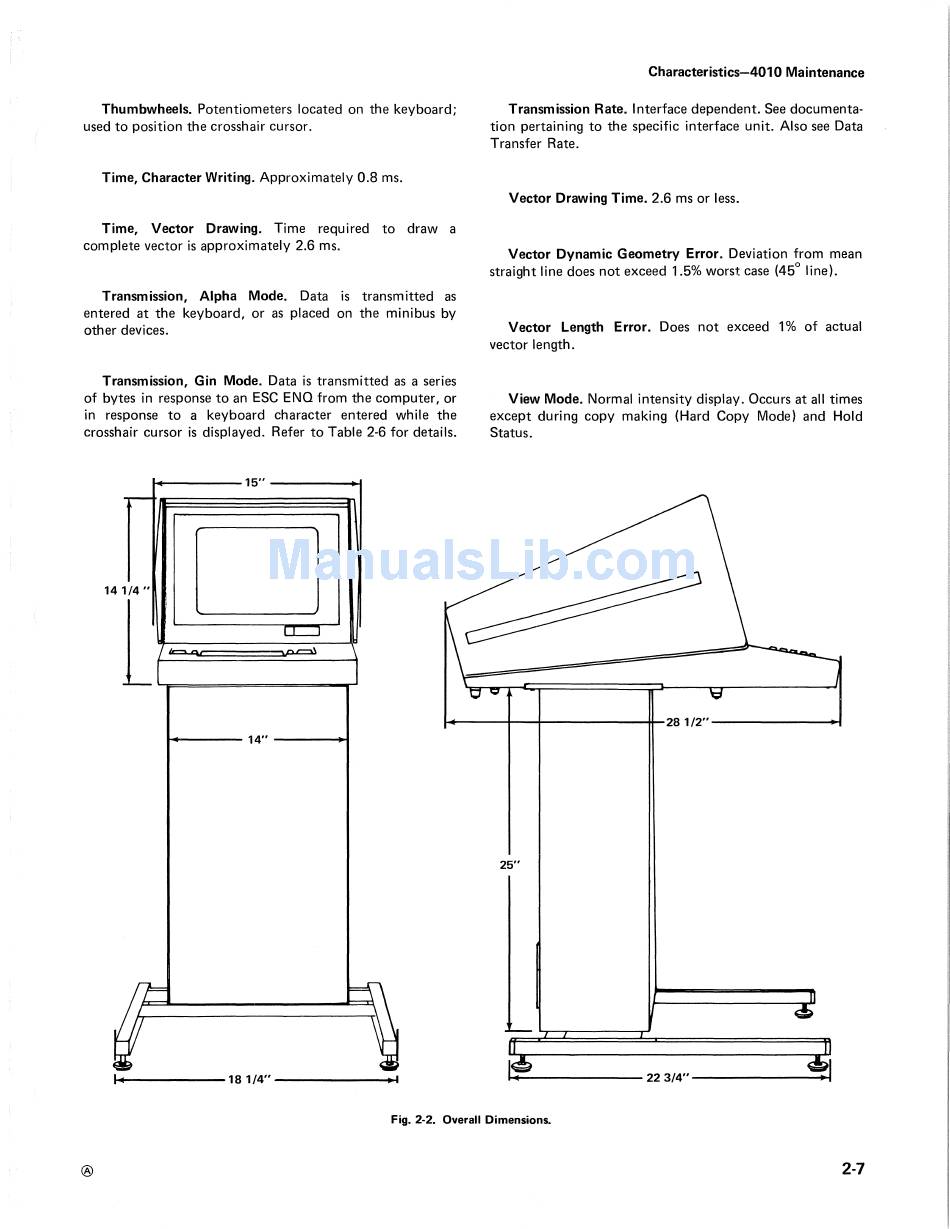

Fig. 2-2. Overall Dimensions.
®
2-7
