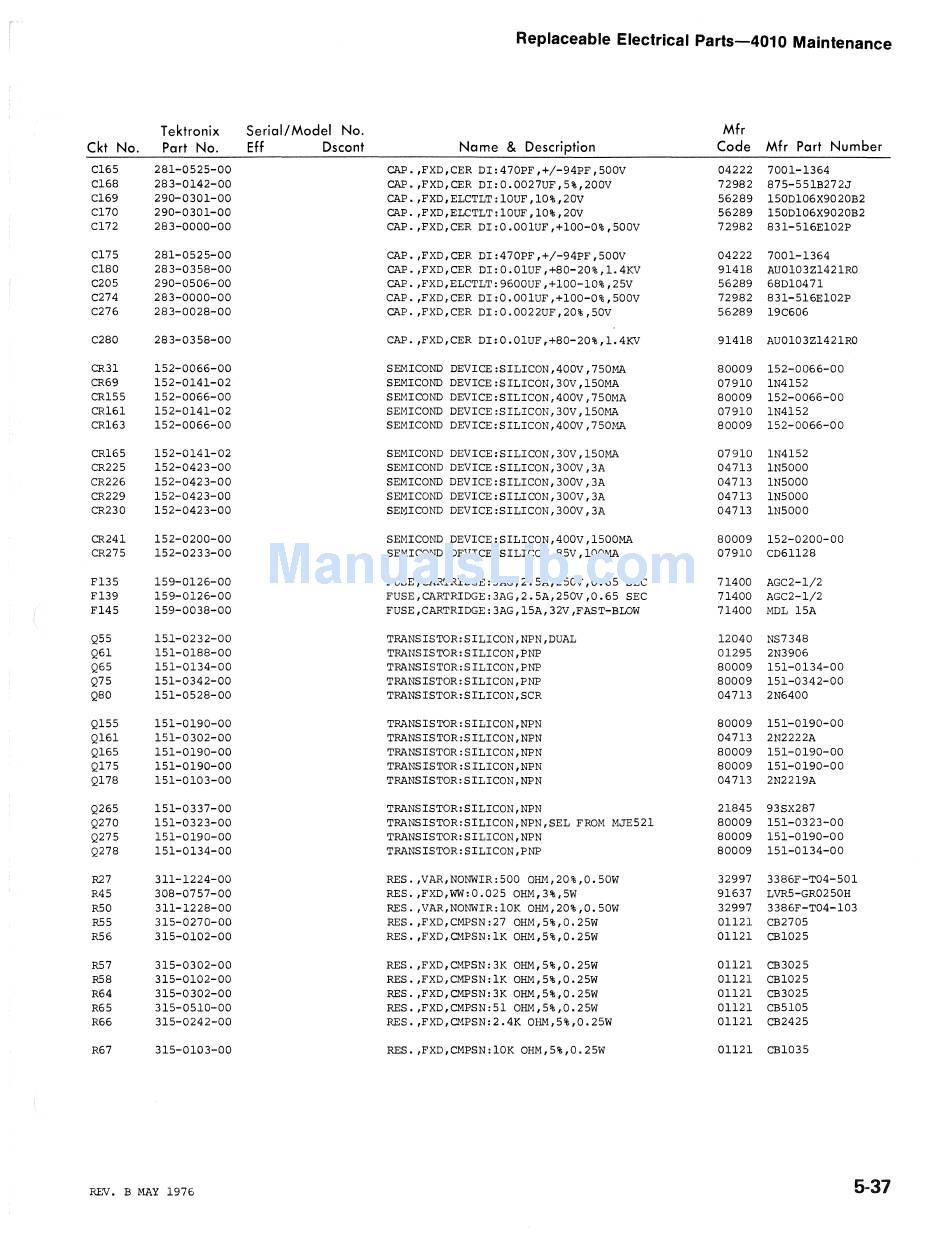

Replaceable Electrical Parts-4010 Maintenance
Tektronix
Serial/Model No.
Mfr
Ckt No. Part No.
Eff
Dscont Name & Description
Code Mfr Part Number
C165 281-0525-00
CAP.,FXD,CER DI:470PF,+/-94PF,500V 04222 7001-1364
C168 283-0142-00
CAP. ,FXD,CER DI:0.0027UF,5%,200V 72982 875-551B272J
C169 290-0301-00 CAP.,FXD,ELCTLT:I0UF,10%,20V 56289 150D106X90 20B2
C170 290-0301-00 CAP. ,FXD,ELCTLT:I0UF,10%,20V 56289 150D106X9020B2
Cl72 283-0000-00 CAP.,FXD,CER DI:0.00IUF,+100-0%,500V 72982
831-516EI02P
C175 281-0525-00
CAP.,FXD,CER DI:470PF,+/-94PF,500V 04222 7001-1364
C180 283-0358-00 CAP.,FXD,CER DI:0.OIUF,+80-20%,1.4KV 91418 AUOI03Z1421RO
C205 290-0506-00 CAP.,FXD,ELCTLT:9600UF,+100-10%,25V 56289 68DI0471
C274 283-0000-00 CAP.,FXD,CER DI:0.00IUF,+100-0%,500V 72982 831-516EI02P
C276 283-0028-00
CAP.,FXD,CER DI:0.0022UF,20%,50V 56289 19C606
C280
283-0358-00 CAP.,FXD,CER DI:0.OIUF,+80-20%,1.4KV 91418 AUOI03Z1421RO
CR31 152-0066-00 SEMICOND DEVlCE:SILICON,400V,750MA
80009 152-0066-00
CR69 152-0141-02
SEMICOND DEVICE:SILICON,30V,150MA 07910 IN4152
CR155 152-0066-00
SEMlCOND DEVICE:SILICON,400V,750MA 80009 152-0066-00
CR161 152-0141-02
SEMICOND DEVICE:SILICON,30V,150MA 07910 IN4152
CR163 152-0066-00
SEMICOND DEVICE:SILICON,400V,750MA 80009 152-0066-00
CR165 152-0141-02 SEMICOND DEVICE:SILICON,30V,150MA 07910 IN4152
CR225 152-0423-00 SEMICOND DEVlCE:SILICON,300V,3A 04713 IN5000
CR226 152-0423-00 SEMICOND DEVICE:SILICON,300V,3A 04713 IN5000
CR229 152-0423-00 SEMICOND DEVlCE:SILICON,300V,3A 04713 IN5000
CR230 152-0423-00 SEMICOND DEVICE:SILICON,300V,3A 04713 IN5000
CR241 152-0200-00 SEMICOND DEVICE:SILICON,400V,1500MA
80009 152-0200-00
CR275 152-0233-00 SEMICOND DEVICE:SILICON,85V,100MA 07910 CD61128
F135 159-0126-00 FUSE,CARTRIDGE:3AG,2.5A,250V,0.65 SEC 71400
AGC2-1/2
F139 159-0126-00 FUSE,CARTRIDGE:3AG,2.5A,250V,0.65 SEC 71400
AGC2-1/2
F145 159-0038-00 FUSE,CARTRIDGE:3AG,15A,32V,FAST-BLOW 71400 MDL 15A
Q55 15l-0232-00 TRANSISTOR:SILICON,NPN,DUAL 12040 NS7348
Q61
151-0188-00 TRANSISTOR:SILICON,PNP 01295
2N3906
Q65
151-0134-00 TRANSISTOR:SILICON,PNP
80009
151-0134-00
Q75
151-0342-00 TRANSISTOR:SILICON,PNP
80009 151-0342-00
Q80 151-0528-00 TRANSISTOR:SILICON,SCR 04713 2N6400
Q155 151-0190-00 TRANSISTOR:SILICON,NPN 80009 151-0190-00
Q161 151-0302-00 TRANSISTOR:SILICON,NPN 04713 2N2222A
Q165 151-0190-00 TRANSISTOR:SILICON,NPN 80009 151-0190-00
Q175
151-0190-00 TRANSISTOR:SILICON,NPN 80009 151-0190-00
Q178 151-0103-00
TRANSISTOR:SILICON,NPN 04713 2N2219A
Q265 151-0337-00 TRANSISTOR:SILICON,NPN
21845
93SX287
Q270 151-0323-00 TRANSISTOR:SILICON,NPN,SEL FROM MJE521 80009 151-0323-00
Q275 151-0190-00 TRANSISTOR:SILICON,NPN 80009 151-0190-00
Q278
151-0134-00 TRANSISTOR:SILICON,PNP 80009 151-0134-00
R27 311-1224-00 RES. ,VAR, NONWIR: 500 OHM,20%,0.50W
32997 3386F-T04-501
R45 308-0757-00 RES. ,FXD,WW:0.025 OHM,3%,5W 91637 LVR5-GR0250H
R50 311-1228-00
RES. ,VAR,NONWIR:I0K OHM,20%,0.50W 32997 3386F-T04-103
RS5
315-0270-00 RES.,FXD,CMPSN:270HM,5%,0.25W 01121 CB2705
R56 315-0l02-00 RES. ,FXD,01PSN:IK OHM,5%,0.25W 01121 CBI025
RS7 315-0302-00
RES. ,FXD,CMPSN:3K OHM,5%,0.25W 01121 CB3025
RS8
315-0102-00 RES.,FXD,CMPSN:IK OHM,5%,0.25W 01121 CBI025
R64 315-0302-00 RES. ,FXD,CMPSN:3K OHM,5%,0.25W 01121 CB3025
R65 315-051.0-00 RES. ,FXD,CMPSN:51 OHM,5%,0.25W 01121 CB5105
R66 315-0242-00 RES. ,FXD,CMPSN:2.4K OHM,5%,0.25W
01121
CB2425
R67 315-0103-00 RES. ,FXD,CMPSN:I0K OHM,5%,0.25W 01121 CBI035
REV. B MAY 1976
5-37
