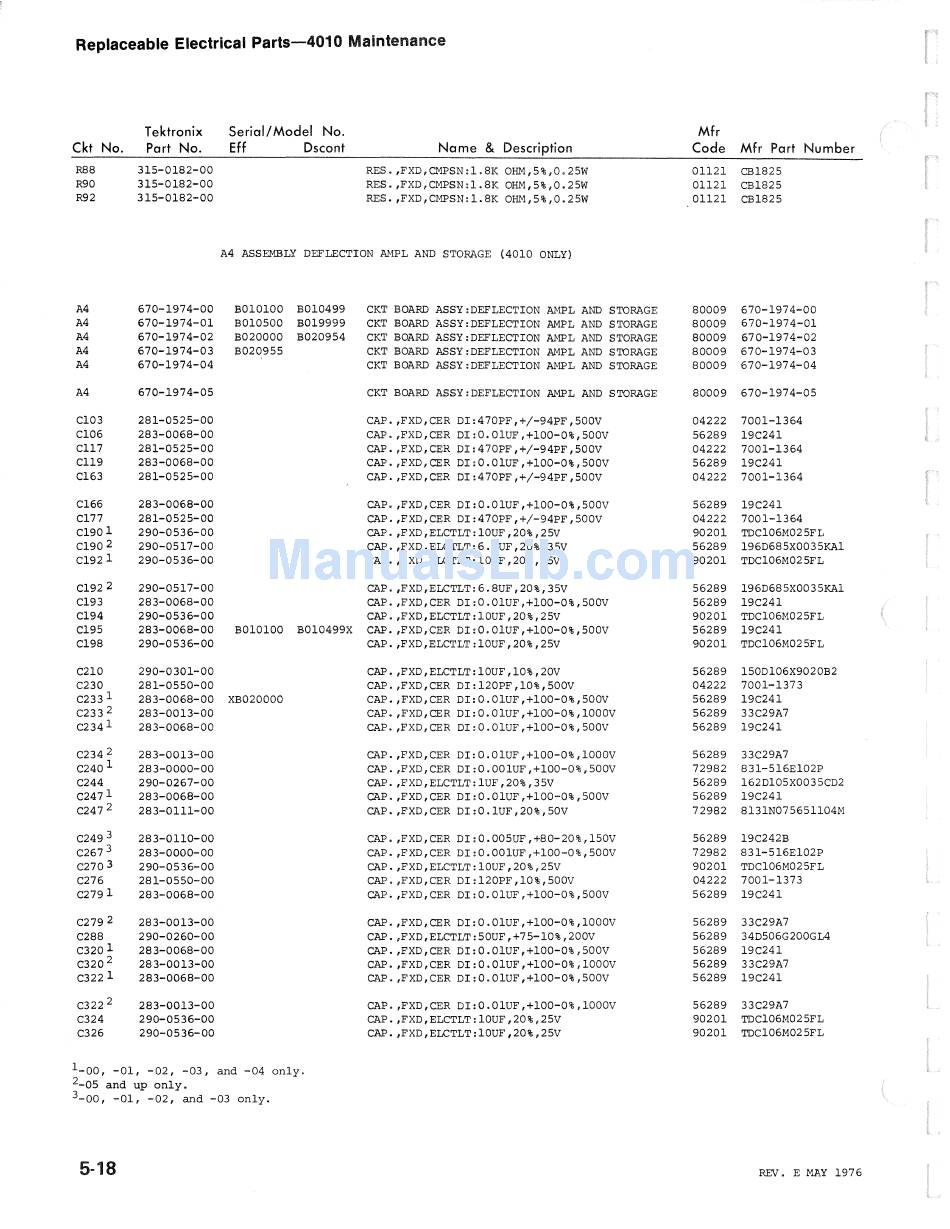

Tektronix 4010 Maintenance Manual page 86

Replaceable Electrical Parts-4010 Maintenance
Tektronix Serial/Model No. Mfr
Ckt No. Part No. Eff Dscont Name & Description Code Mfr Part Number
R88 315-0182-00 RES.,FXD,CMPSN:l.8K OHM,5%,0.25W
01121 CB1825
R90 315-0182-00 RES.,FXD,CMPSN:l.8K OHM,5%,0.25W 01121
CB1825
R92 315-0182-00
RES. ,FXD,CMPSN:l.8K OHM,5%,0.25W
01121 CB1825
A4 ASSEMBLY DEFLECTION AMPL AND STORAGE (4010 ONLY)
A4 670-1974-00 BOI0100 BOI0499 CKT BOARD ASSY:DEFLECTION AMPL AND STORAGE
80009
670-1974-00
A4 670-1974-01 B010500 B019999 CKT BOARD ASSY:DEFLECTION AMPL AND STORAGE 80009 670-1974-01
A4 670-1974-02 B020000 B020954
CKT BOARD ASSY: DEFLECTION AMPL AND STORAGE 80009 670-1974-02
A4 670-1974-03 B020955 CKT BOARD ASSY:DEFLECTION AMPL AND STORAGE 80009 670-1974-03
A4 670-1974-04
CKT BOARD ASSY:DEFLECTION AMPL AND STORAGE 80009 670-1974-04
A4 670-1974-05 CKT BOARD ASSY:DEFLECTION AMPL AND STORAGE
80009
670-1974-05
CI03 281-0525-00 CAP.,FXD,CER DI:470PF,+/-94PF,500V 04222 7001-1364
CI06 283-0068-00 CAP. ,FXD,CER DI:0.OIUF,+100-0%,500V 56289 19C241
C117 281-0525-00 CAP. ,FXD,CER DI,470PF,+/-94PF,500V
04222 7001-1364
C119 283-0068-00 CAP.,FXD,CER DI:0.OIUF,+100-0%,500V 56289 19C241
C163 281-0525-00
CAP. ,FXD,CER DI:470PF,+/-94PF,500V 04222 7001-1364
C166 283-0068-00 CAP. ,FXD,CER DI:0.OIUF,+100-0%,500V 56289 19C241
C177 281-0525-00 CAP.,FXD,CER DI:470PF,+/-94PF,500V 04222 7001-1364
C1901 290-0536-00 CAP. ,FXD,ELCTLT:I0UF,20%,25V 90201 TDCl06M025FL
C190 2
290-0517-00 CAP.,FXD,ELCTLT:6.8UF,20%,35V 56289 196D685X0035KAI
C192 1
290-0536-00 CAP.,FXD,ELCTLT:I0UF,20%,25V 90201 TDC106M025FL
C192 2
290-0517-00 CAP. ,FXD,ELCTLT:6.8UF,20%,35V 56289 196D685X0035KAI
C193 283-0068-00
CAP. ,FXD,CER DI:0.OIUF,+100-0%,500V 56289 19C241
C194 290-0536-00 CAP.,FXD,ELCTLT:I0UF,20%,25V 90201 TDC106M025FL
C195 283-0068-00 BOI0I00 BOI0499X CAP. ,FXD,CER DI:0.OIUF,+100-0%,500V 56289 19C241
C198 290-0536-00 CAP. ,FXD,ELCTLT:I0UF,20%,25V 90201 TDCl06M025FL
C210 290-0301-00 CAP. ,FXD,ELCTLT:I0UF,10%,20V 56289 150DI06X9020B2
C230 281-0550-00 CAP.,FXD,CER DI:120PF,10%,500V
04222 7001-1373
C233 1
283-0068-00 XB020000 CAP.,FXD,CER DI:0.OIUF,+100-0%,500V
56289 19C241
C233 2
283-0013-00
CAP.,FXD,CER DI:0.OIUF,+100-0%,1000V 56289 33C29A7
C234 1
283-0068-00 CAP. ,FXD,CER DI:0.OIUF,+100-0%,500V 56289 19C241
C234 2
283-0013-00 CAP.,FXD,CER DI:0.OIUF,+100-0%,1000V 56289 33C29A7
C240 1
283-0000-00 CAP.,FXD,CER DI:0.00IUF,+100-0%,500V 72982 831-516EI02P
C244 290-0267-00 CAP. ,FXD,ELCTLT:IUF,20%,35V 56289 162DI05X0035CD2
C247 1
283-0068-00 CAP.,FXD,CER DI:0.OIUF,+100-0%,500V
56289 19C241
C247 2
283-0111-00 CAP. ,FXD,CER DI:0.IUF,20%,50V 72982 8131N075651104M
C249 3
283-0110-00 CAP. ,FXD,CER DI:0.005UF,+80-20%,150V 56289 19C242B
C267 3
283-0000-00 CAP. ,FXD,CER DI:0.00IUF,+100-0%,500V 72982 831-516EI02P
C270 3
290-0536-00 CAP.,FXD,ELCTLT:I0UF,20%,25V
90201 TDCI06M025FL
C276 281-0550-00 CAP. ,FXD,CER DI:120PF,10%,500V
04222 7001-1373
C279 1
283-0068-00 CAP.,FXD,CER DI:0.OIUF,+100-0%,500V 56289
19C241
C279 2
283-0013-00
CAP.,FXD,CER DI:0.OIUF,+100-0%,1000V 56289 33C29A7
C288 290-0260-00 CAP.,FXD,ELCTLT:50UF,+75-10%,200V
56289 34D506G200GL4
C320 1
283-0068-00 CAP.,FXD,CER DI:0.OIUF,+100-0%,500V 56289
19C241
C320 2
283-0013-00 CAP. ,FXD, CER DI: O. 01UF , +100-0%; 1000V 56289 33C29A7
C322 1
283-0068-00 CAP. ,FXD,CER DI:0.OIUF,+100-0%,500V 56289 19C241
C322 2
283-0013-00 CAP. ,FXD,CER DI:0.OIUF,+100-0%,1000V 56289 33C29A7
C324
290-0536-00
CAP. ,FXD,ELCTLT:I0UF,20%,25V 90201 TDCI06M025FL
C326 290-0536-00 CAP. ,FXD,ELCTLT:I0UF,20%,25V 90201 TDCl06M025FL
1-00 , -01, -02, -03, and -04 only.
2-05 and up only.
3- 00 , -01, -02, and -03 only.
5-18
REV. E MAY 1976
