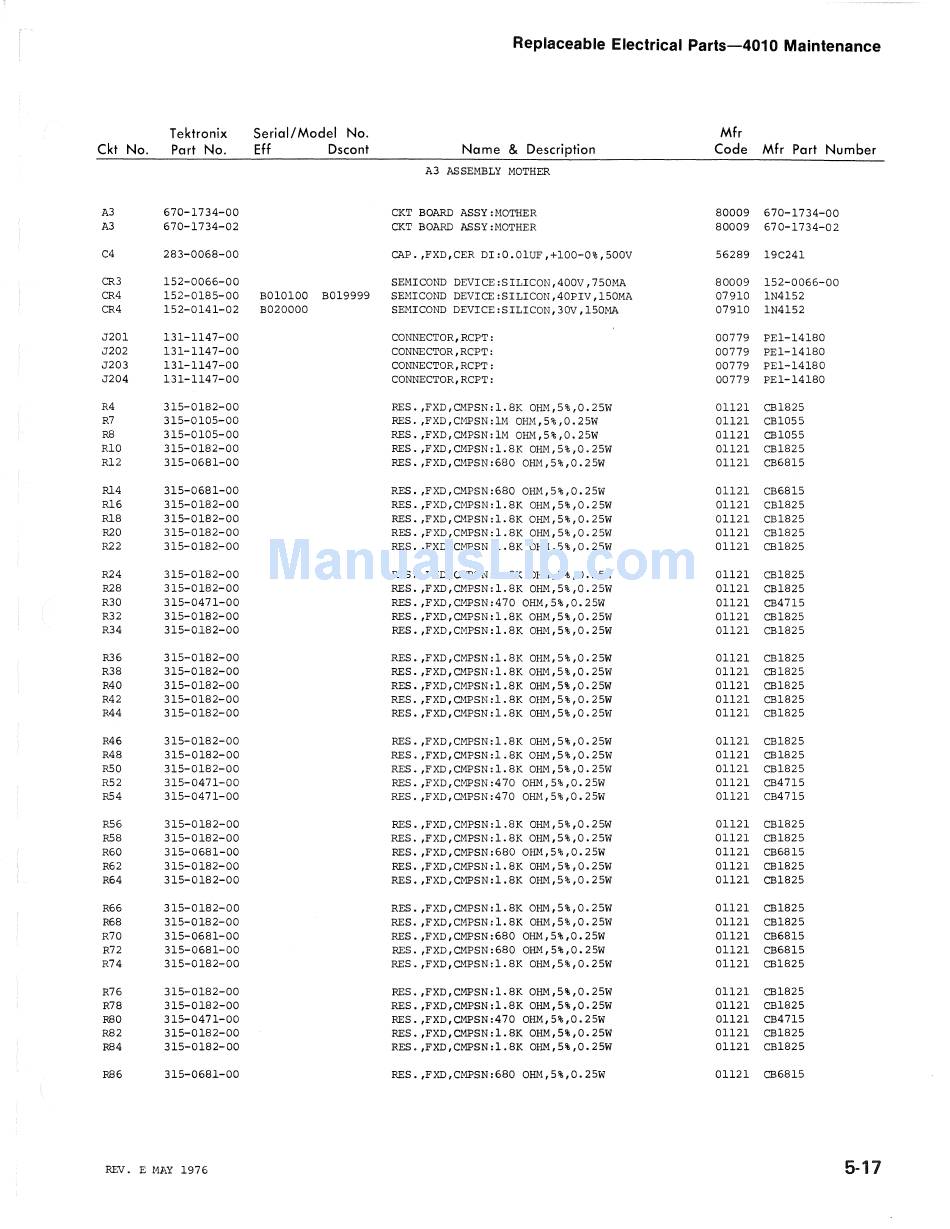

Tektronix 4010 Maintenance Manual page 85

Replaceable Electrical Parts-4010 Maintenance
Tektronix Serial/ Model No. Mfr
Ckt No.
Part No.
Eff Dscont Name
&
Description Code Mfr Part Number
A3 ASSEMBLY MOTHER
A3 670-1734-00 CKT BOARD ASSY:MOTHER 80009
670-1734-00
A3 670-1734-02
CKT BOARD ASSY:MOTHER 80009 670-1734-02
C4
283-0068-00
CAP. ,FXD,CER DI:O.OIUF,+100-0%,500V 56289 19C241
CR3 152-0066-00
SEMICOND DEVICE:SILICON,400V,750MA 80009 152-0066-00
CR4 152-0185-00 BOI0I00 B019999
SEMICOND DEVlCE:SILICON,40PIV,150MA 07910 IN4152
CR4 152-0141-02 B020000 SEMICOND DEVICE:SILICON,30V,150MA 07910 IN4152
J201 131-1147-00 CONNECTOR, RCPT:
00779
PEI-14180
J202 131-1147-00 CONNECTOR, RCPT: 00779 PEI-14180
J203
131-1147-00 CONNECTOR,RCPT:
00779
PEI-14180
J204
131-1147-00 CONNECTOR, RCPT: 00779 PEI-14180
R4
315-0182-00 RES. ,FXD,CMPSN:l.8K OHM,5%,0.25W 01121 CB1825
R7 315-0105-00 RES. ,FXD,CMPSN:lM OHM,5%,0.25W 01121
CB1055
RB 315-0105-00
RES.,FXD,CMPSN:IM OHM,5%,0.25W 01121 CBI055
RIO 315-0182-00 RES.,FXD,CMPSN:l.8K OHM,5%,0.25W
01121
CB1825
R12 315-0681-00 RES. ,FXD,CMPSN:680 OHM,5%,0.25W 01121 CB6815
Rl4 315-0681-00 RES. ,FXD,CMPSN:680 OHM,5%,0.25W 01121 CB6815
Rl6 315-0182-00 RES.,FXD,CMPSN:l.8K OHM,5%,0.25W
01121 CB1825
R18 315-0182-00 RES. ,FXD,CMPSN:l.8K OHM,5%,0.25W 01121 CB1825
R20 315-0182-00 RES. ,FXD,CMPSN:l.8K OHM,5%,0.25W 01121 CB1825
R22 315-0182-00 RES. ,FXD,CMPSN:l.8K OHM,5%,0.25W 01121 CB1825
R24 315-0182-00 RES. ,FXD,CMPSN:l.8K OHM,5%,0.25W 01121 CB1825
R28 315-0182-00 RES. ,FXD,CMPSN:l.8K OHM,5%,0.25W 01121 CB1825
R30 315-0471-00 RES.,FXD,CMPSN:4700HM,5%,0.25W 01121 CB4715
R32 315-0182-00 RES. ,FXD,CMPSN:l.8K OHM,5%,0.25W 01121 CB1825
R34 315-0182-00
RES.,FXD,CMPSN:l.8K OHM,5%,0.25W 01121 CB1825
R36 315-0182-00 RES. ,FXD,CMPSN:l.8K OHM,5%,0.25W 01121 CB1825
R38 315-0182-00 RES.,FXD,CMPSN:l.8K OHM,5%,0.25W 01121 CB1825
R40 315-0182-00 RES. ,FXD,CMPSN:l.8K OHM,5%,0.25W 01121 CB1825
R42 315-0182-00 RES. ,FXD,CMPSN:1.8K OHM,5%,0.25W 01121 CB1825
R44 315-0182-00 RES. ,FXD,CMPSN:l.8K OHM,5%,0.25W 01121 CB1825
R46 315-0182-00 RES. ,FXD,CMPSN:l.8K OHM,5%,0.25W 01121 CB1825
R48 315-0182-00
RES.,FXD,CMPSN:l.8K OHM,5%,0.25W
01121 CB1825
RSO 315-0182-00 RES. ,FXD,CMPSN:l.8K OHM,5%,0.25W 01121 CB1825
R52 315-0471-00 RES. ,FXD,CMPSN:470 OHM,5%,0.25W 01121 CB4715
RS4 315-0471-00 RES.,FXD,CMPSN:4700HM,5%,0.25W 01121 CB4715
RS6 315-0182-00 RES.,FXD,CMPSN:1.8K OHM,5%,0.25W 01121 CB1825
RS8 315-0182-00 RES. ,FXD,CMPSN:1.8K OHM,5%,0.25W 01121 CB1825
R60 315-0681-00 RES. ,FXD,CMPSN:680 OHM,5%,0.25W 01121 CB6815
R62
315-0182-00 RES. ,FXD,CMPSN:l.8K OHM,5%,0.25W 01121 CB1825
R64 315-0182-00 RES.,FXD,CMPSN:l.8K OHM,5%,0.25W 01121 CB1825
R66 315-0182-00 RES. ,FXD,CMPSN:l.8K OHM,5%,0.25W 01121 CB1825
R68 315-0182-00 RES. ,FXD,CMPSN:l.8K OHM,5%,0.25W 01121 CB1825
R70 315-0681-00 RES.,FXD,CMPSN:6800HM,5%,0.25W 01121 CB6815
R72 315-0681-00 RES. ,FXD,CMPSN:680 OHM,5%,0.25W 01121 CB6815
R74 315-0182-00 RES.,FXD,CMPSN:l.8K OHM,5%,0.25W 01121 CB1825
R76 315-0182-00 RES.,FXD,CMPSN:l.8K OHM,5%,0.25W 01121 CB1825
R78 315-0182-00 RES.,FXD,CMPSN:l.8K OHM,5%,0.25W 01121 CB1825
RBO
315-0471-00 RES. ,FXD,CMPSN:470 OHM,5%,0.25W 01121 CB4715
R82 315-0182-00 RES.,FXD,CMPSN:l.8K OHM,5%,0.25W 01121 CB1825
RB4 315-0182-00 RES.,FXD,CMPSN:l.8K OHM,5%,0.25W 01121 CB1825
RB6
315-0681-00 RES.,FXD,CMPSN:6800HM,5%,0.25W 01121 CB6815
REV. E 14AY 1976
5-17
