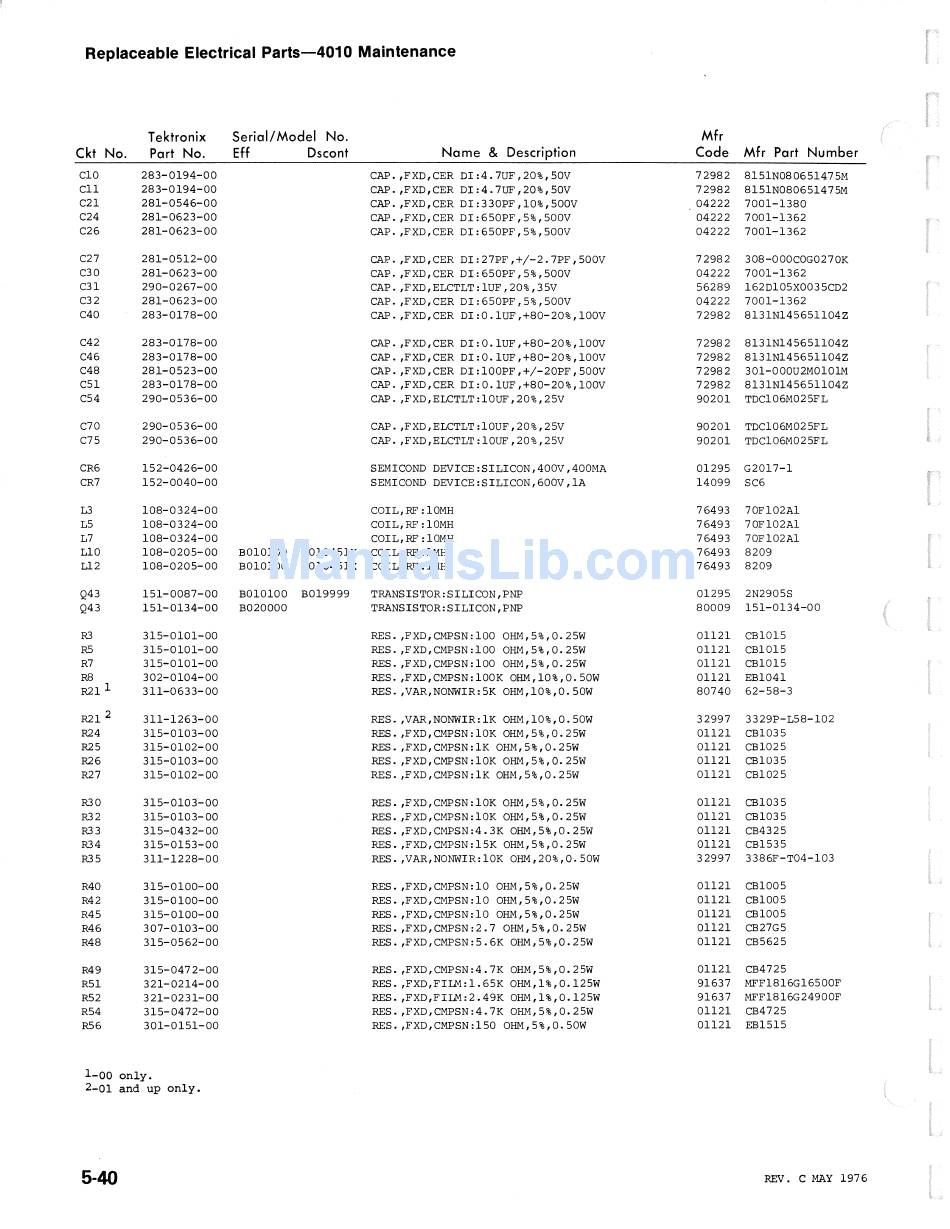

Tektronix 4010 Maintenance Manual page 108

Replaceable Electrical Parts-4010 Maintenance
Tektronix
Serial/ Model No. Mfr
Ckt No. Part No.
Eff
Dscont
Name
&
Description Code Mfr Part Number
CI0 283-0194-00 CAP.,FXD,CER DI:4.7UF,20%,SOV 72982 81S1N0806S147SM
Cll 283-0194-00 CAP. ,FXD,CER DI:4.7UF,20%,SOV 72982 81S1N0806S147SM
C21
281-0546-00 CAP. ,FXD,CER DI:330PF,10%,SOOV 04222 7001-1380
C24
281-0623-00 CAP.,FXD,CER DI:6S0PF,S%,SOOV 04222 7001-1362
C26 281-0623-00
CAP. ,FXD,CER DI:6S0PF,S%,SOOV 04222 7001-1362
C27 281-0512-00
CAP. ,FXD,CER DI:27PF,+/-2.7PF,SOOV
72982
308-000COG0270K
C30 281-0623-00
CAP. ,FXD,CER DI:6S0PF,S%,SOOV
04222 7001-1362
C31 290-0267-00
CAP. ,FXD,ELCTLT:IUF,20%,3SV 56289 162DI0SX003SCD2
C32 281-0623-00
CAP. ,FXD,CER DI:6S0PF,S%,SOOV
04222 7001-1362
C40 283-0178-00
CAP. ,FXD,CER DI:0.IUF,+80-20%,100V 72982 8131N14S6S1104z
C42 283-0178-00
CAP. ,FXD,CER DI:0.IUF,+80-20%,100V 72982
8131N14S6S1104Z
C46 283-0178-00 CAP. ,FXD,CER DI:0.IUF,+80-20%,100V
72982
8131N14S6S1104z
C48 281-0523-00 CAP.,FXD,CER DI:I00PF,+/-20PF,SOOV 72982 301-000U2MOlOlM
CSl 283-0178-00 CAP. ,FXD,CER DI:0.IUF,+80-20%,100V 72982 8131N14S6S1104z
CS4 290-0536-00 CAP. ,FXD,ELCTLT:I0UF,20%,2SV 90201 TDC106M02SFL
C70
290-0536-00 CAP. ,FXD,ELCTLT:I0UF,20%,2SV 90201 TDC106M02SFL
C7S 290-0536-00 CAP. ,FXD,ELCTLT:I0UF,20%,2SV 90201 TDC106M02SFL
CR6 152-0426-00 SEMICOND DEVICE:SILICON,400V,400MA 01295 G2017-1
CR7 152-0040-00 SEMICOND DEVICE:SILICON,600V,lA 14099 SC6
L3
108-0324-00 COIL,RF:I0MH 76493 70FI02A1
LS 108-0324-00
COIL,RF:I0MH 76493
70FI02Al
L7 108-0324-00 COIL,RF :10MH
76493
70FI02Al
LlO 108-0205-00 BOI0I00 BOI04S1X
COIL,RF:IMH 76493
8209
Ll2 108-0205-00 BOI0100 BOI04S1x COIL,RF :lMH 76493 8209
Q43 151-0087-00 BOI0100 B019999 TRANSISTOR:SILICON,PNP 01295 2N290SS
Q43 151-0134-00 B020000 TRANSISTOR:SILICON,PNP 80009 151-0134-00
R3 315-0101-00 RES. ,FXD,CMPSN:I00 OHM,S%,0.2SW 01121
CBI01S
R5 315-0101-00
RES. ,FXD,CMPSN:I00 OHM,S%,0.2SW 01121 CBI01S
R7
315-0101-00 RES. ,FXD,CMPSN:I00 OHM,S%,0.2SW
01121 CBI01S
R8
302-0104-00 RES. ,FXD,CMPSN:I00K OHM,10%,0.Sow 01121 EBI041
R211
311-0633-00 RES. ,VAR,NONWIR:SK OHM,10%,0.SOW 80740 62-58-3
R212
311-1263-00 RES. ,VAR,NONWIR:IK OHM,10%,0.Sow 32997 3329P-LS8-102
R24 315-0103-00 RES. ,FXD,CMPSN:I0K OHM,S%,0.2SW 01121 CBI03S
R2S 315-0102-00 RES. ,FXD,CMPSN:IK OHM,S%,0.2SW 01121 CBI02S
R26 315-0103-00
RES. ,FXD,CMPSN:I0K OHM,S%,0.2SW 01121 CBI03S
R27 315-0102-00 RES. ,FXD,CMPSN:IK OHM,S%,0.2SW
01121 CBI02S
R30 315-0103-00 RES. ,FXD,CMPSN:I0K OHM,S%,0.2SW
01121 CB103S
R32 315-0103-00
RES. ,FXD,CMPSN:I0K OHM,S%,0.2SW 01121 CBI03S
R33 315-0432-00 RES. ,FXD,CMPSN:4.3K OHM,S%,0.2SW 01121 CB432S
R34 315-0153-00 RES. ,FXD,CMPSN:1SK OHM,S%,0.2SW 01121 CB1S3S
R3S 311-1228-00 RES. ,VAR,NONWIR:I0K OHM,20%,0.SOW 32997 3386F-T04-103
R40 315-0100-00 RES. ,FXD,CMPSN:I0 OHM,S%,0.2SW
01121
CBI00S
R42
315-0100-00
RES. ,FXD,CMPSN:I0 OHM,S%,0.2SW
01121 CBI00S
R4S 315-0100-00 RES. ,FXD,CMPSN:I0 OHM,S%,0.2SW
01121
CBI00S
R46 307-0103-00 RES. ,FXD,CMPSN:2.7 OHM,S%,0.2SW
01121 CB27GS
R48 315-0562-00
RES.,FXD,CMPSN:S.6K OHM,S%,0.2SW 01121 CBS62S
R49 315-0472-00 RES. ,FXD,CMPSN:4.7K OHM,S%,0.2SW 01121 CB472S
RSl 321-0214-00
RES. ,FXD,FILM:l.6SK OHM,1%,0.12SW
91637 MFF1816G16S00F
RS2 321-0231-00 RES. ,FXD,FILM:2.49K OHM,1%,0.12SW 91637
MFF1816G24900F
RS4 315-0472-00 RES.,FXD,CMPSN:4.7K OHM,S%,0.2SW
01121 CB472S
R56 301-0151-00 RES. ,FXD,CMPSN:1S0 OHM,S%,O.sow
01121 EB1S1S
1-00 only.
2-01 and up only.
5-40
REV. C MAY 1976
