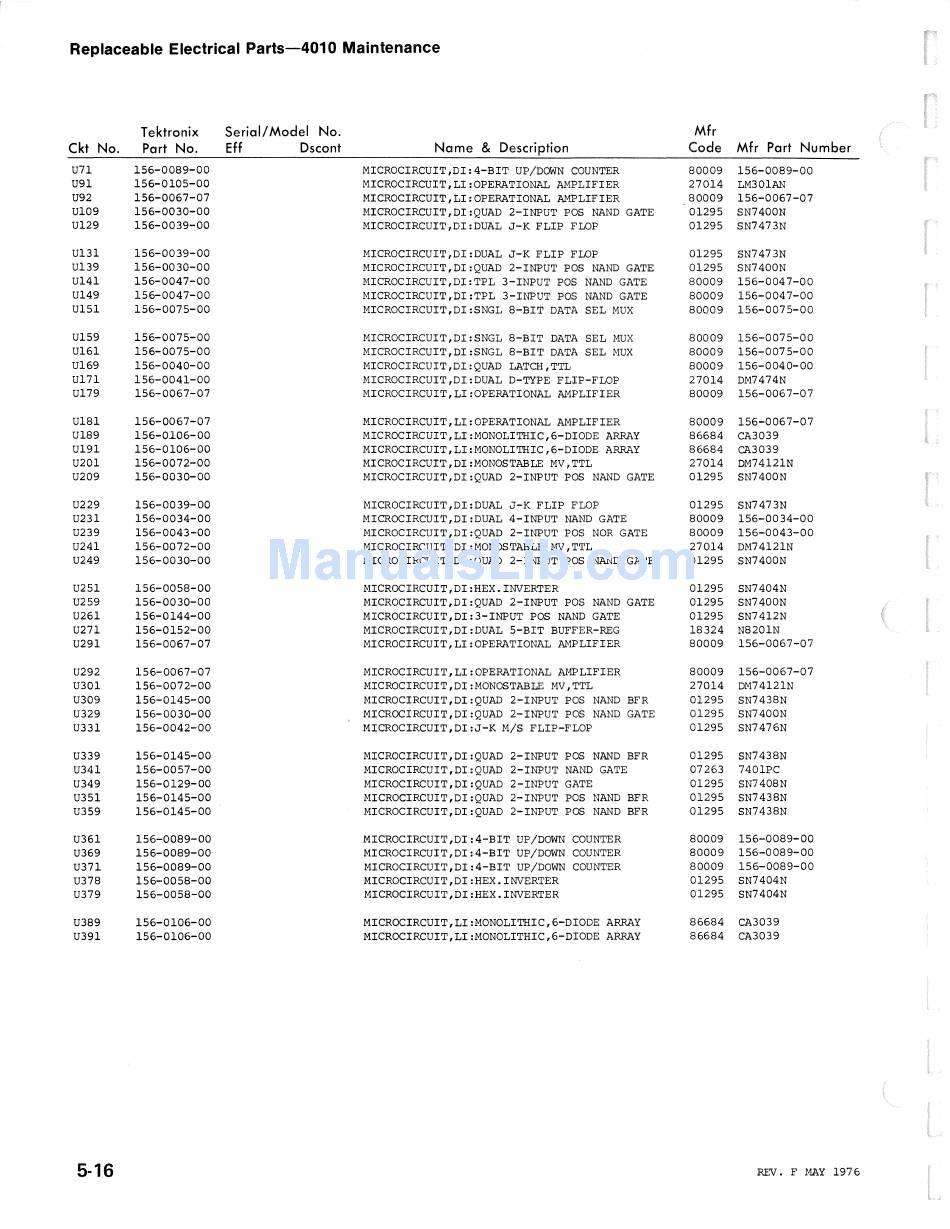

Tektronix 4010 Maintenance Manual page 84

Replaceable Electrical Parts-4010 Maintenance
Tektronix Serial/Model No.
Mfr
Ckt No. Part No.
Eff
Dscont Name & Description Code Mfr Part Number
U7l 156-0089-00 MICROCIRCUIT,DI:4-BIT UP/DOWN COUNTER 80009 156-0089-00
U91 156-0105-00
MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 27014 LM301AN
U92 156-0067-07
MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 80009 156-0067-07
U109 156-0030-00
MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND GATE
01295
SN7400N
U129 156-0039-00 MICROCIRCUIT,DI:DUAL J-K FLIP FLOP 01295 SN7473N
U131 156-0039-00 MICROCIRCUIT,DI:DUAL J-K FLIP FLOP 01295 SN7473N
U139 156-0030-00 MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND GATE 01295 SN7400N
U141 156-0047-00 MICROCIRCUIT,DI:TPL 3-INPUT POS NAND GATE 80009 156-0047-00
U149 156-0047-00 MICROCIRCUIT,DI:TPL 3-INPUT POS NAND GATE 80009 156-0047-00
U151 156-0075-00 MICROCIRCUIT,DI:SNGL 8-BIT DATA SEL MUX 80009 156-0075-00
U159 156-0075-00 MICROCIRCUIT,DI:SNGL 8-BIT DATA SEL MUX
80009
156-0075-00
U161 156-0075-00 MICROCIRCUIT,DI:SNGL 8-BIT DATA SEL MUX 80009 156-0075-00
U169 156-0040-00 MICROCIRCUIT,DI:QUAD LATCH,TTL 80009 156-0040-00
U17l 156-0041-00 MICROCIRCUIT,DI:DUAL D-TYPE FLIP-FLOP 27014 DM7474N
U179 156-0067-07 MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 80009 156-0067-07
U181 156-0067-07 MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 80009 156-0067-07
U189 156-0l06-00 MICROCIRCUIT,LI:MONOLITHIC,6-DIODE ARRAY 86684 CA3039
U191 156-0106-00 MICROCIRCUIT,LI:MONOLITHIC,6-DIODE ARRAY 86684 CA3039
U201
156-0072-00 MICROCIRCUIT,DI:MONOSTABLE MV,TTL 27014 DM74121N
U209 156-0030-00 MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND GATE 01295 SN7400N
U229 156-0039-00 MICROCIRCUIT,DI:DUAL J-K FLIP FLOP 01295 SN7473N
U231 156-0034-00 MICROCIRCUIT,DI:DUAL 4-INPUT NAND GATE 80009 156-0034-00
U239 156-0043-00 MICROCIRCUIT,DI:QUAD 2-INPUT POS NOR GATE 80009 156-0043-00
U241 156-0072-00 MICROCIRCUIT,DI:MONOSTABLE MV,TTL 27014 DM74121N
U249 156-0030-00 MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND GATE 01295 SN7400N
U251 156-0058-00 MICROCIRCUIT,DI:HEX.INVERTER 01295 SN7404N
U259 156-0030-00 MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND GATE 01295 SN7400N
U261 156-0144-00 MICROCIRCUIT,DI:3-INPUT POS NAND GATE 01295 SN7412N
U271
156-0152-00
MICROCIRCUIT,DI:DUAL 5-BIT BUFFER-REG 18324 N8201N
U291 156-0067-07 MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 80009 156-0067-07
U292 156-0067-07 MICROCIRCUIT,LI:OPERATIONAL AMPLIFIER 80009 156-0067-07
U301 156-0072-00 MICROCIRCUIT,DI:MONOSTABLE MV,TTL 27014 DM74121N
U309 156-0145-00 MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND BFR 01295 SN7438N
U329 156-0030-00 MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND GATE 01295 SN7400N
U331 156-0042-00 MICROCIRCUIT,DI:J-K M/S FLIP-FLOP 01295 SN7476N
u339 156-0145-00 MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND BFR 01295 SN7438N
U341 156-0057-00 MICROCIRCUIT,DI:QUAD 2-INPUT NAND GATE 07263 7401PC
U349 156-0129-00 MICROCIRCUIT,DI:QUAD 2-INPUT GATE 01295 SN7408N
U351 156-0145'-00 MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND BFR 01295 SN7438N
u359 156-0145-00 MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND BFR
01295 SN7438N
U361 156-0089-00
MICROCIRCUIT,DI:4-BIT UP/DOWN COUNTER 80009 156-0089-00
U369 156-0089-00 MICROCIRCUIT,DI:4-BIT UP/DOWN COUNTER 80009 156-0089-00
U37l
156-0089-00 MICROCIRCUIT,DI:4-BIT UP/DOWN COUNTER 80009 156-0089-00
U378 156-0058-00 MICROCIRCUIT,DI:HEX.INVERTER
01295 SN7404N
U379 156-0058-00
MICROCIRCUIT,DI:HEX.INVERTER 01295 SN7404N
U389 156-0106-00 MICROCIRCUIT,LI:MONOLITHIC,6-DIODE ARRAY
86684 CA3039
U391 156-0106-00 MICROCIRCUIT,LI:MONOLITHIC,6-DIODE ARRAY 86684 CA3039
