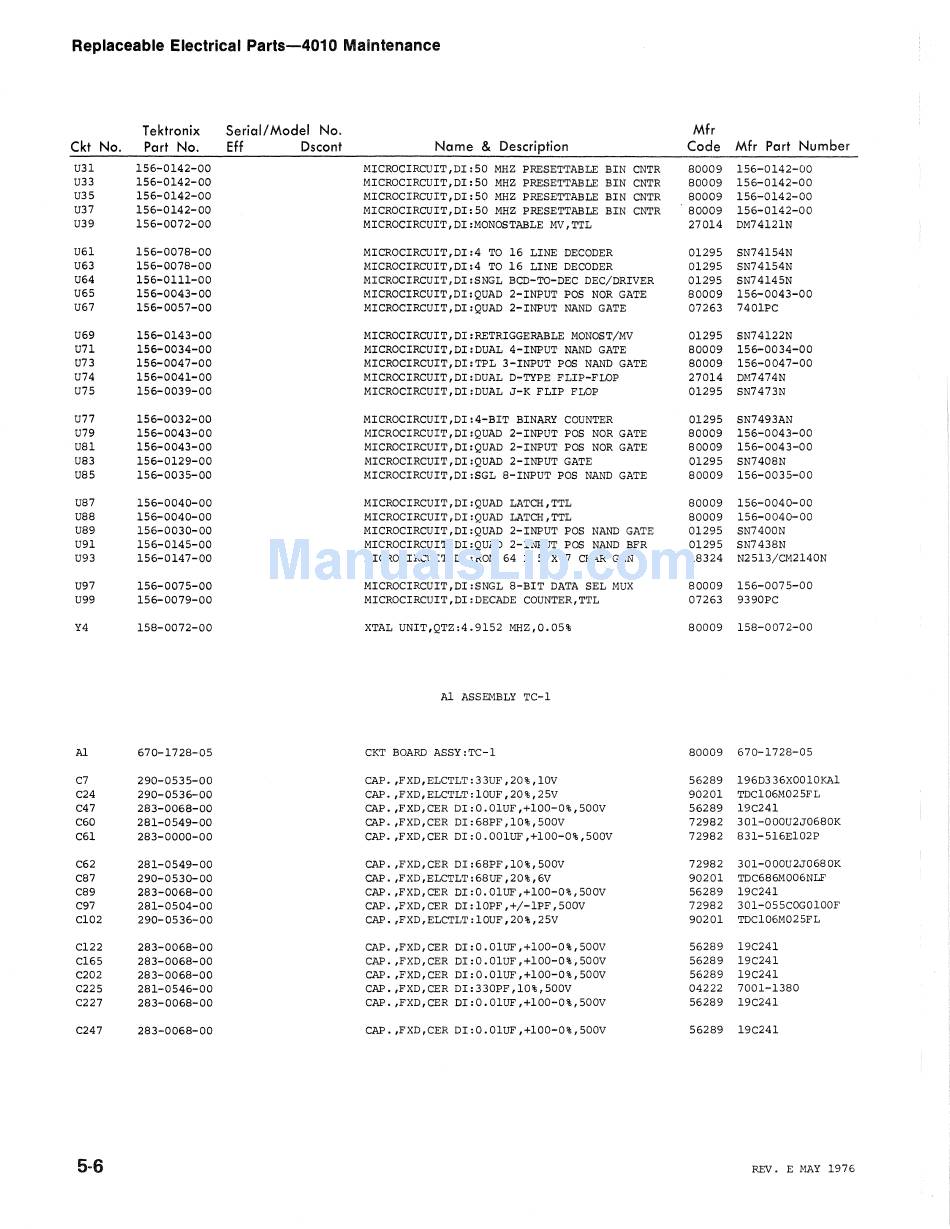

Tektronix 4010 Maintenance Manual page 74

Replaceable Electrical Parts-4010 Maintenance
Tektronix
Serial/Model No. Mfr
Ckt No. Part No.
Eff
Dscont
Name
&
Description Code Mfr Part Number
U31 156-0142-00
MICROCIRCUIT,DI:50 MHZ PRESETTABLE BIN CNTR 80009 156-0142-00
U33 156-0142-00 MICROCIRCUIT,DI:50 MHZ PRESETTABLE BIN CNTR 80009 156-0142-00
U35 156-0142-00
MICROCIRCUIT,DI:50 MHZ PRESETTABLE BIN CNTR
80009
156-0142-00
U37
156-0142-00 MICROCIRCUIT,DI:50 MHZ PRESETTABLE BIN CNTR 80009 156-0142-00
U39
156-0072-00 MICROCIRCUIT,DI:MONOSTABLE MV,TTL 27014 DM74121N
U61
156-0078-00 MICROCIRCUIT,DI:4 TO 16 LINE DECODER 01295 SN74154N
U63 156-0078-00
MICROCIRCUIT,DI:4 TO 16 LINE DECODER 01295 SN74154N
U64
156-0111-00 MICROCIRCUIT,DI:SNGL BCD-TO-DEC DEC/DRIVER 01295 SN74145N
U65 156-0043-00
MICROCIRCUIT,DI:QUAD 2-INPUT POS NOR GATE 80009 156-0043-00
U67 156-0057-00 MICROCIRCUIT,DI:QUAD 2-INPUT NAND GATE
07263 7401PC
U69 156-0143-00 MICROCIRCUIT,DI:RETRIGGERABLE MONOST/MV 01295 SN74122N
un
156-0034-00 MICROCIRCUIT,DI:DUAL 4-INPUT NAND GATE 80009 156-0034-00
U73
156-0047-00 MICROCIRCUIT,DI:TPL 3-INPUT POS NAND GATE 80009 156-0047-00
U74
156-0041-00 MICROCIRCUIT,DI:DUAL D-TYPE FLIP-FLOP 27014 DM7474N
U75 156-0039-00 MICROCIRCUIT,DI:DUAL J-K FLIP FLOP 01295 SN7473N
U77 156-0032-00 MICROCIRCUIT,DI:4-BIT BINARY COUNTER 01295 SN7493AN
U79
156-0043-00 MICROCIRCUIT,DI:QUAD 2-INPUT POS NOR GATE 80009 156-0043-00
U81 156-0043-00 MICROCIRCUIT,DI:QUAD 2-INPUT POS NOR GATE 80009 156-0043-00
U83
156-0129-00 MICROCIRCUIT,DI:QUAD 2-INPUT GATE 01295 SN7408N
U85 156-0035-00 MICROCIRCUIT,DI:SGL 8-INPUT POS NAND GATE
80009
156-0035-00
U87 156-0040-00 MICROCIRCUIT,DI:QUAD LATCH, TTL 80009 156-0040-00
U88 156-0040-00 MICROCIRCUIT,DI:QUAD LATCH,TTL 80009 156-0040-00
U89 156-0030-00 MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND GATE 01295 SN7400N
U91 156-0145-00 MICROCIRCUIT,DI:QUAD 2-INPUT POS NAND BFR 01295 SN7438N
U93 156-0147-00 MICROCIRCUIT,DI:ROM 64 X 5 X 7 CHAR GEN
18324 N2513/CM2140N
U97 156-0075-00 MICROCIRCUIT,DI:SNGL 8-BIT DATA SEL MUX 80009 156-0075-00
U99 156-0079-00 MICROCIRCUIT,DI:DECADE COUNTER, TTL 07263 9390PC
Y4
158-0072-00
XTAL UNIT,QTZ:4.9152 MHZ,0.05%
80009
158-0072-00
Al ASSEMBLY TC-l
Al 670-1728-05
CKT BOARD ASSY:TC-l
80009
670-1728-05
C7
290-0535-00
CAP. ,FXD,ELCTLT:33UF,20%,10V 56289 196D336XOOI0KAl
C24
290-0536-00
CAP.,FXD,ELCTLT:I0UF,20%,25V 90201 TDCI06M025FL
C47 283-0068-00 CAP. ,FXD,CER DI:0.OIUF,+100-0%,500V 56289 19C241
C60
281-0549-00
CAP. ,FXD,CER DI:68PF,10%,500V 72982 301-000U2J0680K
C61
283-0000-00
CAP. ,FXD,CER DI:0.00IUF,+100-0%,500V 72982 831-516EI02P
C62 281-0549-00 CAP.,FXD,CER DI:68PF,10%,500V 72982 301-000U2J0680K
C87
290-0530-00
CAP. ,FXD,ELCTLT:68UF,20%,6V 90201
TDC686M006NLF
C89 283-0068-00 CAP.,FXD,CER DI:0.OIUF,+100-0%,500V 56289
19C241
C97 281-0504-00
CAP. ,FXD,CER DI:I0PF,+/-lPF,500V 72982 301-055COGOI00F
CI02 290-0536-00 CAP.,FXD,ELCTLT:I0UF,20%,25V
90201 TDCI06M025FL
C122 283-0068-00 CAP. ,FXD,CER DI:0.OIUF,+100-0%,500V
56289 19C241
C165 283-0068-00 CAP. ,FXD,CER DI:O. 01UF ,+100-0%, 500V 56289
19C241
C202 283-0068-00
CAP. ,FXD,CER DI:0.OIUF,+100-0%,500V 56289 19C241
C225
281-0546-00
CAP.,FXD,CER DI:330PF,10%,500V 04222 7001-1380
C227 283-0068-00
CAP. ,FXD,CER DI:0.OIUF,+100-0%,500V 56289 19C241
C247
283-0068-00
CAP.,FXD,CER DI:0.OIUF,+100-0%,500V
56289 19C241
5-6
REV. E MAY 1976
