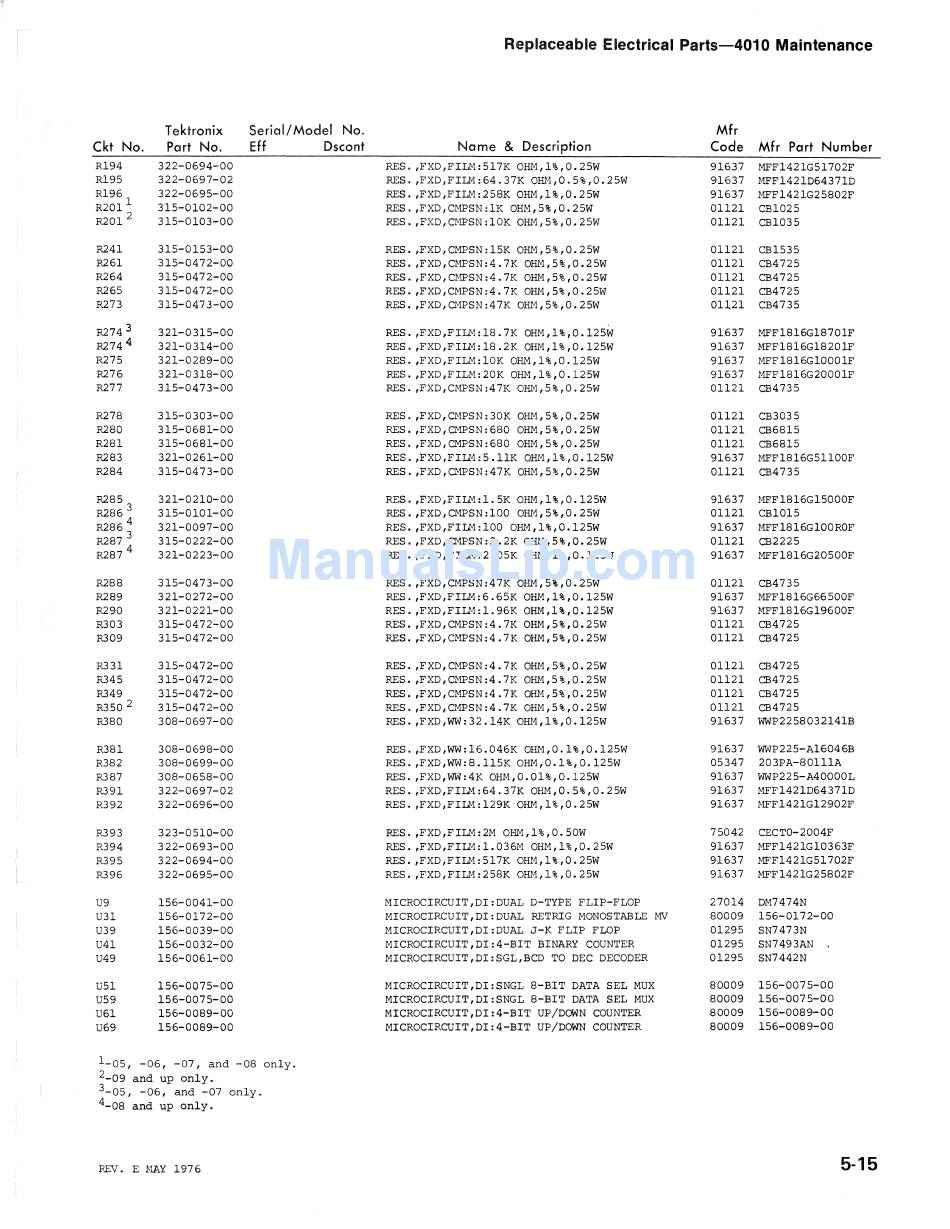

Replaceable Electrical Parts-4010 Maintenance
Tektronix Serial/ Model No. Mfr
Ckt No. Part No.
Eff
Dscont Name
&
Description
Code Mfr Part Number
R194 322-0694-00 RES. ,FXD,FILM:517K OHM,1%,0.25W 91637
MFF1421G51702F
R195 322-0697-02
RES. ,FXD,FILM: 64. 37K OHH,O. 5% ,0. 25W 91637 MFF1421D64371D
R196 322-0695-00
RES. ,FXD,FILM:258K OHH,1%,0.25W 91637 MFF1421G25802F
R201 1
315-0102-00 RES.,FXD,CMPSN:1K OHM,5%,0.25W 01121 CB1025
R201 2
3l5-0103-00 RES. ,FXD,CHPSN:10K OHM,5%,0.25W 01121
CB1035
R241 315-0153-00 RES. ,FXD,CMPSN:15K OHM,5%,0.25W 01121 CB1535
R261 315-0472-00
RES. ,FXD,CHPSN:4.7K OHM,5%,0.25W 01121 CB4725
R264
3l5-0472-00 RES. ,FXD,CHPSN:4.7K OHM,5%,0.25W 01121 CB4725
R265 315-0472-00
RES. ,FXD,CMPSN:4.7K OHM,5%,0.25W 01121 CB4725
R273 3l5-0473-00
RES. ,FXD,CMPSN:47K OHM,5%,O.25W 01121 CB4735
R274 3
321-03l5-00 RES.,FXD,FILM:18.7K OHM,1%,0.125W 91637 MFF1816G18701F
R2744
321-0314-00 RES.,FXD,FILM:18.2K OHM,1%,0.125W 91637 MFF1816G1820LF
R275 321-0289-00 RES. ,FXD,FILM:10K OHM,1%,0.125W 91637 MFF1816GlOOOIF
R276 321-03l8-00 RES. ,FXD,FILM:20K OHM,1%,0.125W 91637 MFF1816G20001F
R277
315-0473-00 RES. ,FXD,CHPSN:47K OHM,5%,0.25W 01121 CB4735
R278
315-0303-00
RES. ,FXD,CMPSN:30K OHM,5%,0.25W
01121 CB3035
R280 315-0681-00 RES. ,FXD,CHPSN:680 OHM,5%,0.25W 01121 CB6815
R281 315-0681-00 RES. ,FXD,CHPSN:680 OHM,5%,0.25W 01121 CB6815
R283 321-0261-00 RES. ,FXD,FILM:5.11K OHM,1%,0.125W 91637 MFF1816G51100F
R284 315-0473-00 RES. ,FXD,CMPSN:47K OHM,5%,0.25W 01121 CB4735
R285 321-0210-00 RES.,FXD,FILM:1.5K OHM,1%,0.125W 91637 MFF1816G15000F
R286 3
315-0101-00
RES.,FXD,CHPSN:1000HM,5%,0.25W 01121
CB1015
R286 4
321-0097-00 RES. ,FXD,FILM:100 OHM,1%,0.125W 91637 MFF1816G100ROF
R287 3
315-0222-00 RES.,FXD,CHPSN:2.2K OHM,5%,0.25W 01121 CB2225
R287 4
321-0223-00 RES. ,FXD,FILM:2.05K OHM,1%,0.125W 91637
MFF1816G20500F
R288 3l5-0473-00 RES.,FXD,CMPSN:47K OHM,5%,0.25W 01121
CB4735
R289 321-0272-00 RES. ,FXD,FILM:6.65K OHM,1%,0.125W 91637 MFF1816G66500F
R290 321-0221-00 RES. ,FXD,FILM:1.96K OHM,1%,0.125W 91637 MFFl816G19600F
R303 315-0472-00
RES. ,FXD,CMPSN:4.7K OHM,5%,0.25W 01121
CB4725
R309 315-0472-00
RES. ,FXD,CMPSN:4.7K OHM,5%,0.25W 01121 CB4725
R331 315-0472-00 RES. ,FXD,CHPSN:4.7K OHM,5%,0.25W 01121 CB4725
R345 315-0472-00 RES. ,FXD,CHPSN:4.7K OHM,5%,0.25W 01121 CB4725
R349 3l5-0472-00 RES. ,FXD,CHPSN:4.7K OHM,5%,0.25W 01121 CB4725
R350 2
3l5-0472-00 RES. ,FXD,CHPSN:4.7K OHM,5%,0.25W
01121
CB4725
R380 308-0697-00 RES. ,FXD,WW:32.14K OHM,1%,0.125W
91637 WWP2258032141B
R381 308-0698-00 RES. ,FXD,WW:16.046K OHM,0.1%,0.125W
91637 WWP225-A16046B
R382 308-0699-00 RES. ,FXD,WW:8.115K OHM,0.1%,0.125W 05347 203PA-80111A
R387
308-0658-00 RES. ,FXD,WW:4K OHM,0.01%,0.l25W 91637 WWP225-MOOOOL
R391 322-0697-02 RES. ,FXD,FILM:64.37K OHM,0.5%,0.25W 91637 MFF1421D64371D
R392 322-0696-00
RES. ,FXD,FILM:129K OHM,1%,0.25W 91637 MFF1421G12902F
R393 323-0510-00 RES. ,FXD,FILM:2M OHM,1%,0.50W 75042 CECTO-2004F
R394 322-0693-00 RES. ,FXD,FILM:1.036M OHM,1%,0.25W
91637 MFF1421G10363F
R395 322-0694-00 RES. ,FXD,FILM:517K OHM,1%,0.25W 91637
MFF1421G51702F
R396 322-0695-00
RES. ,FXD,FILM:258K OHM,1%,0.25W 91637 MFF1421G25802F
U9 156-0041-00
MICROCIRCUIT,DI:DUAL D-TYPE FLIP-FLOP 27014 DM7474N
U31 156-0172-00
MICROCIRCUIT,DI:DUAL RETRIG MONOSTABLE
MV
80009 156-0172-00
U39 156-0039-00
MICROCIRCUIT,DI:DUAL J-K FLIP FLOP 01295 SN7473N
U41 156-0032-00
MICROCIRCUIT,DI:4-BIT BINARY COUNTER 01295 SN7493AN
U49 156-0061-00
MICROCIRCUIT,DI:SGL,BCD TO DEC DECODER 01295 SN7442N
U51
156-0075-00 MICROCIRCUIT,DI:SNGL 8-BIT DATA SEL MUX
80009 156-0075-00
U59 156-0075-00
MICROCIRCUIT,DI:SNGL 8-BIT DATA SEL MUX 80009 156-0075-00
U61 156-0089-00
MICROCIRCUIT,DI:4-BIT UP/DOWN COUNTER 80009 156-0089-00
U69 156-0089-00
MICROCIRCUIT,DI:4-BIT UP/DOWN COUNTER 80009 156-0089-00
1-05, -06, -07, and -08 only.
2-09 and up only.
3- 05 , -06, and -07 only.
4- 08 and up only.
REV. E MAY 1976
5-15
